Produktbeskrivelse
|

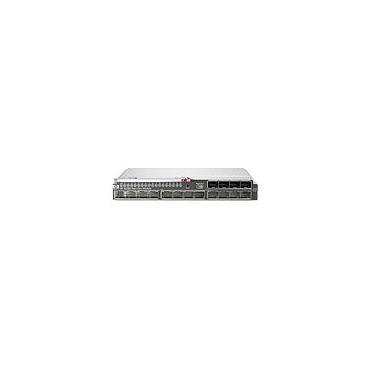

HPE 10GbE Pass-Thru Module - switch - 16 porte - plug-in modul
|
Enhedstype
|
Switch - 16 porte
|
Pakningstype
|
Plug-in modul
|
Undertype
|
10 Gigabit Ethernet
|
Porte
|
16 x 10 Gigabit SFP+
|
Præstation
|
Båndbredde: 320 Gbps
|
Egenskaber
|
Auto-negotiation, håndterbar
|
Dimensioner (B x D x H)
|
19.3 cm x 26.8 cm x 2.8 cm
|
Vægt
|
1.6 kg
|
Pristype
|
Remarketed
|
Produktdatablad |
|
Enhedstype |
Switch - 16 porte |
Pakningstype |
Plug-in modul |
Undertype |
10 Gigabit Ethernet |
Porte |
16 x 10 Gigabit SFP+ |
Præstation |
Båndbredde: 320 Gbps |
Egenskaber |
Auto-negotiation, håndterbar |
Statusindikatorer |
Portstatus, link/aktivitet |
Interface |
16 x 10Gb Ethernet - SFP+ ¦ 1 x USB administration |
Overensstemmelsesstandarder |
VCCI, BSMI CNS 13438 Class A, EN55022, EN55024, AS/NZ 3548 Class A, MIC, UL 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1 |
Pristype |
Remarketed |
Bredde |
19.3 cm |
Dybde |
26.8 cm |
Højde |
2.8 cm |
Vægt |
1.6 kg |
Min. driftstemperatur |
10 °C |
Maks. driftstemperatur |
35 °C |
Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
Min. lagertemperatur |
-40 °C |
Maks. Opbevaringstemperatur |
70 °C |
The HP 10GbE Pass-Thru Module is designed for customers requiring a non-blocking, one-to-one connection between each server and the network. The module provides multiple uplink ports that accept both SFP and SFP+ connectors. The HP 10GbE Pass-Thru Module can support 1Gb and 10Gb connections on a port-by-port basis. Optical as well as DAC cables are also supported.
