Produktbeskrivelse
|

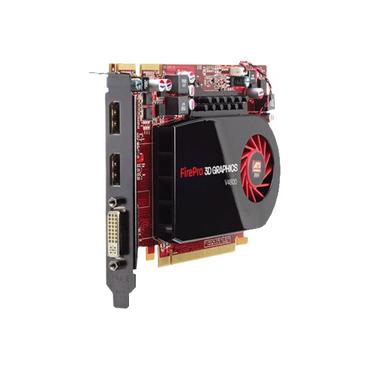

ATI FirePro V4800 - grafikkort - FirePRO V4800 - 1 GB
|
Enhedstype
|
Grafikkort
|
Bus Type
|
PCI Express 2.0 x16
|
Grafik engine
|
ATI FirePRO V4800
|
Hukommelse
|
1 GB GDDR5
|
Strømprocessorer
|
400
|
RAMDAC
|
400 MHz
|
Maksimum opløsning
|
2560 x 1600
|
Max Opløsnings Detaljer
|
DVI: 2560 x 1600 / DisplayPort: 2560 x 1600 / VGA: 2048 x 1536 ved 85Hz
|
Maks. antal understøttede monitorer
|
3
|
Interfacer
|
DVI ¦ 2 x DisplayPort
|
API-understøttet
|
DirectX 11, OpenGL 3.2, DirectCompute 11, OpenCL 1.1
|
Dimensioner (B x D x H)
|
16.8 cm x 11.1 cm
|
Designet for
|
Workstation z200, z400, z600
|
Produktdatablad |
|
Enhedstype |
Grafikkort |
Bus Type |
PCI Express 2.0 x16 |
Grafik engine |
ATI FirePRO V4800 |
Strømprocessorer |
400 |
RAMDAC |
400 MHz |
Maksimum opløsning |
2560 x 1600 ved 60 Hz |
Max Opløsnings Detaljer |
DVI: 2560 x 1600 / DisplayPort: 2560 x 1600 / VGA: 2048 x 1536 ved 85Hz |
Maks. antal understøttede monitorer |
3 |
Interfacer |
DVI ¦ 2 x DisplayPort |
API-understøttet |
DirectX 11, OpenGL 3.2, DirectCompute 11, OpenCL 1.1 |
Egenskaber |
ATI Eyefinity Technology, AMD Unified Video Decoder (UVD) 2, Full 30-bit Display Pipeline |
Størrelse |
1 GB |
Teknologi |
GDDR5 SDRAM |
OS nødvendig |
Microsoft Windows Vista Business (32/64 bits), Microsoft Windows 7 Professional (32/64 bit), Red Hat Enterprise Linux WS 6, Red Hat Enterprise Linux Desktop 6, SUSE Linux Enterprise Desktop 11 (32/64-bit), Microsoft Windows XP Professional (32/64 bit), Red Hat Enterprise Linux WS 4 (32/64 bits), Red Hat Enterprise Linux Desktop 5 (32/64 bits), Red Hat Enterprise Linux WS 5 (32/64 bits) |
Strømforbrug ved drift |
69 Watt |
Dybde |
16.8 cm |
Højde |
11.1 cm |
Designet for |
HP Workstation z200, z400, z600 |
Introducing the ATI FirePro V4800 workstations graphics accelerator from AMD! This entry level workstation solution with 1GB (GDDR5 SDRAM) of frame buffer memory supports two dual link DVI outputs and is capable of driving ultra high resolution widescreen monitors. With a full 30-bit display pipeline producing more than one billion colors. The ATI FirePro V4800 is ideally suited for applications that benefit from accurate color reproduction and superior visual fidelity.
