Processor
| Processorproducent |
Intel |
| Processor sokkel |
LGA 1151 (stik H4) |
| Kompatibel processor serie |
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Maksimalt antal SMP-processorer |
1 |
| Understøttede procesorsokler |
LGA 1151 (stik H4) |
Hukommelse
| Understøttede hukommelsestyper |
DDR4-SDRAM |
| Antal hukommelsesstik |
4 |
| Hukommelses slots type |
DIMM |
| Hukommelseskanaler |
To-kanals |
| ECC-kompatibilitet |
NON-ECC |
| Understøttede hukommelsesclock-hastigheder |
2133,4266 MHz |
| Maksimal intern hukommelse |
64 GB |
| Ikke-bufferet hukommelse |
Ja |
Lagring controllers
| Understøttet datalagringsdrev typer |
HDD & SSD |
| Understøttede lagerdrev brugerflader |
M.2, SATA III |
| RAID-niveauer |
0, 1, 5, 10 |
Grafik
| Understøttelse af parallel behandlingsteknologi |
2-Way CrossFireX, 2-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI |
| Grafikadapter familie |
Intel |
| Diskret grafik support |
Ja |
Intern I/O
| USB 2.0-stik |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik |
2 |
| Antal SATA III-stik |
6 |
| Antal SATA stik |
6 |
| Lydstik på frontpanel |
Ja |
| Stik til frontpanel |
Ja |
| ATX strømstrik (24 stikben) |
Ja |
| CPU-ventilatorstik |
Ja |
| Antal kabinetventilatorstik |
2 |
| Indbrudsttik til kabinet |
Ja |
| EPS strømstik (8-pin) |
Ja |
| Thunderbolt-headere |
1 |
| TPM-stik |
Ja |
| Antal COM-stik |
1 |

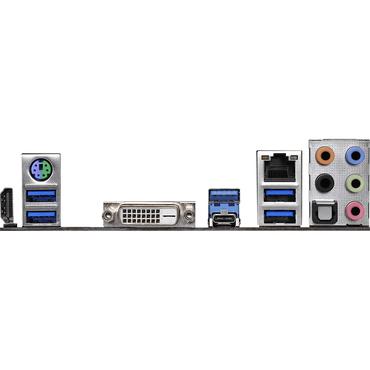

Bagpanel I/O porte
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte |
5 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte |
1 |
| Ethernet LAN-porte (RJ-45) |
1 |
| Antal PS/2-porte |
1 |
| Antal HDMI-porte |
1 |
| Antal DVI-D-porte |
1 |
| Udgange til hovedtelefoner |
1 |
| Mikrofonindgang |
Ja |
| S/PDIF-udgang |
Ja |
Netværk
| Ethernet LAN |
Ja |
| Ethernet-grænsefladetype |
Gigabit Ethernet |
| LAN Kontroller |
Intel® I219-V |
Funktioner
| Lydchip |
Realtek ALC892 |
| Lyd-output kanaler |
7.1 kanaler |
| PC sundhedsovervågning |
CPU, Ventilator, Strømforsyning, Temperatur, Spænding |
| Komponent til |
PC |
| Motherboard form faktor |
ATX |
| Kølingstype |
Passiv |
| Strømkilde type |
ATX |
| Bundkort chipset familie |
Intel |
Udvidelsessokler
| PCI Ekspres x1 (Gen 3.x) slots |
4 |
| PCI Ekspres x16 (Gen 3.x) slots |
2 |
| Antal M.2 (M) slots |
2 |
BIOS
| BIOS-type |
UEFI |
| BIOS-hukommelsesstørrelse |
16 Mbit |
| ACPI-version |
6.0 |
Processor særlige funktioner
| Intel® ekstrem hukommelse profil (XMP) |
Ja |
| Intel® Optane™ Memory Ready |
Ja |
Logistik data
| Harmoniseret systemkode (HS) |
84733020 |
Vægt & størrelser
| Bredde |
224 mm |
| Højde |
305 mm |
Emballage indhold
| Kabler inkluderet |
SATA |
| Drivere inkluderet |
Ja |
Andre funktioner
| Hurtig installationsvejledning |
Ja |
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock's VR Ready motherboards are definitely the one you're looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
The improved power phase design offers smooth power delivery to the more powerful 8th Generation Intel Core Processors, providing unmatched overclocking capabilities, lower temperature for advanced gamers, and reinforced system stability for taking on all sorts of arduous computing tasks.
ASRock Hyper DDR4 technology unlocks the hidden performance of DDR4 memory modules, giving the overall performance a huge boost. Unlike traditional memory signal designs that are easily distorted, Hyper DDR4 uses an optimized trace design and the memory circuitry are ideally isolated, thus providing pure memory signals for compatibility, stability and performance.
