Funktioner
| 2.4 GHz |
Ja |
| 5 GHz |
Ja |
| Maksimal dataoverførselshastighed |
1600 Mbit/s |
| Maksimal dataoverførselshastighed (2,4 GHz) |
300 Mbit/s |
| Maksimal dataoverførselshastighed (5 GHz) |
1300 Mbit/s |
| Ethernet LAN-datahastigheder |
10,100,1000 Mbit/s |
| Netværksstandarder |
IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Auto MDI/MDI-X |
Ja |
| MIMO |
Ja |
| MIMO type |
Multi User MIMO |
| Spread-spectrum-metode |
DSSS, OFDM |
| Modulation |
16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK |
| Servicekvalitet support (QoS) |
Ja |
Sikkerhed
| Sikkerhedsalgoritmer |
Ikke understøttet |
Porte & Grænseflader
| Ethernet LAN-porte (RJ-45) |
1 |
| Antal USB 2.0-porte |
1 |
| USB-stik type |
USB Type-A |
Strømstyring
| Strøm over Ethernet (PoE) |
Ja |
| Strømforbrug (maks.) |
13 W |
Design
| Placering |
Loft, Væg |
| Produktfarve |
Hvid |
| Slot til kabellås |
Ja |
| Kabellåseslids type |
Kensington |
Antenne
| Antenne type |
Intern |
| Antenneretningstype |
Omniretningsbestemt |
| Antennefunktioner |
Integreret antenne |
| Antenner, antal |
3 |
| Niveau for antennestyrke (maks.) |
5,4 dBi |
Vægt & størrelser
| Bredde |
165 mm |
| Dybde |
165 mm |
| Højde |
38 mm |
| Vægt |
460 g |
Driftsbetingelser
| Relativ luftfugtighed ved drift (H-H) |
5 - 93% |
| Driftstemperatur (T-T) |
0 - 50 °C |
| Opbevaringstemperatur (T-T) |
-40 - 70 °C |
Logistik data
| Harmoniseret systemkode (HS) |
85176990 |

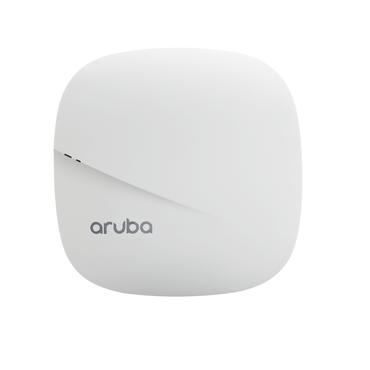

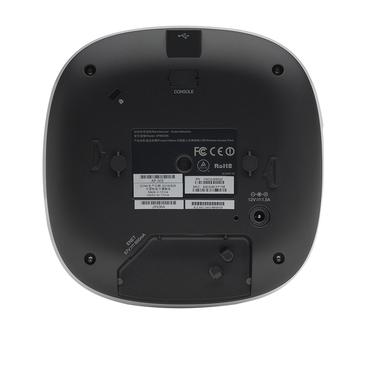

The entry-level Aruba 300 Series Wave 2 access points deliver high performance and superb user experience for medium density environments. These Wave 2 access points deliver multi-user MIMO (MU-MIMO) aware ClientMatch to boost network efficiency and support the growing device density demands on your network.
The 300 Series also has an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of large-scale battery-powered Aruba beacons while also providing advanced location and indoor way finding, and proximity-based push notification capabilities.
