WAN-forbindelse
| Ethernet WAN |
Ja |
| DSL WAN |
Ja |
Trådløse LAN funktioner
| Wi-Fi-bånd |
Dual-band (2,4 GHz / 5 GHz) |
| Bedste Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| WLAN dataoverførselshastighed (maks) |
1300 Mbit/s |
| Wi-Fi-standarder |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Antal kanaler |
13 kanaler |
Netværk
| Ethernet LAN |
Ja |
| Ethernet LAN-grænsefladetype |
Gigabit Ethernet |
| Ethernet LAN-datahastigheder |
10,100,1000 Mbit/s |
| Kabelteknologi |
10/100/1000Base-T(X) |
| Netværksstandarder |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| VPN-support |
IPSec, PPTP, L2TP, PPTP server, OpenVPN server, PPTP client, L2TP client |
ADSL funktioner
Porte & Grænseflader
| Ethernet LAN-porte (RJ-45) |
4 |
| Antal RJ-11-porte |
1 |
| DC-in-stik |
Ja |
Administrationsfunktioner
| Webbaseret administration |
Ja |
| Servicekvalitet support (QoS) |
Ja |
| Knap til nulstilling |
Ja |
Sikkerhed
| Sikkerhedsalgoritmer |
256-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS |
Protokoller
| Universal Plug and Play (UPnP) |
Ja |
Design
| Produktfarve |
Sort |
| Tænd-/slukkontakt |
Ja |

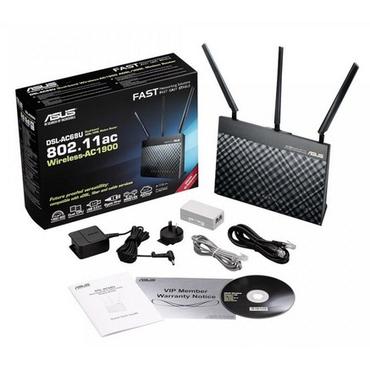

Emballage indhold
| Kabler inkluderet |
LAN (RJ-45) |
| AC-adapter inkluderet |
Ja |
| Hurtig start guide |
Ja |
Antenne
| Antennedesign |
Ekstern |
| Niveau for antennestyrke (maks.) |
3 dBi |
| Antenner, antal |
3 |
| Aftagelig (e) antenne (r) |
Ja |
Funktioner
| Intern hukommelse |
256 MB |
| Flashhukommelse |
128 MB |
| Firmware kan opgraderes |
Ja |
Strømstyring
| Vekselstrømsindgangsspænding |
100 - 240 V |
| Vekselstrømsindgangsfrekvens |
50 - 60 Hz |
Vægt & størrelser
| Højde |
160 mm |
| Vægt |
640 g |
| Dybde |
83,3 mm |
| Bredde |
220 mm |
Andre funktioner
| Båndbredde (første) |
2,4 GHz |
| Understøttede WLAN-dataoverførselshastigheder |
600,1300 Mbit/s |
| ADSL-forbindelse |
Ja |
| Frekvensområde |
2,4 - 5 GHz |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Båndbredde (anden) |
5 GHz |
| Antal USB-porte |
1 |

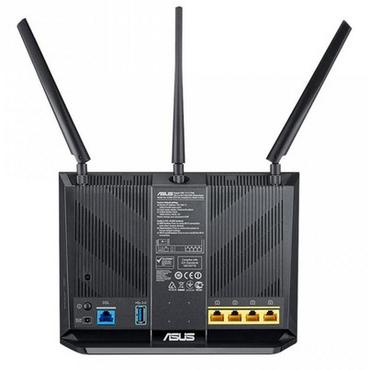

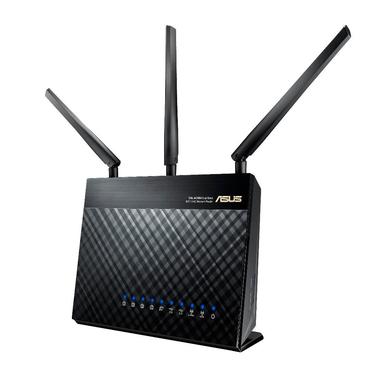

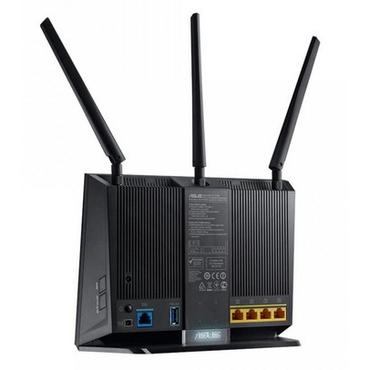

The ASUS DSL-AC68U is the world's fastest ADSL/VDSL modem Wi-Fi router, with combined dual-band data rates of up to 1900 Mbps. On the 5 GHz band, 802.11ac gives 1300 Mbps wireless data rates, while Broadcom TurboQAM technology super-charges 2.4 GHz 802.11n performance from 450 Mbps to 600 Mbps with compatible devices. Compatible with ADSL2/2+, ADSL, VDSL2, fiber and cable services, the top specification completes future-proofing.
Three external antennas boost coverage to the next level, so you can enjoy lag-free gaming and streaming almost anywhere around the house. ASUS AiRadar with universal beamforming technology enhances the Wi-Fi stability and improves coverage up to 150%. Most importantly, the universal beamforming not only works on 802.11ac clients, but also 802.11a/b/g/n clients.
Powered by dual dedicated CPUs for wired and wireless connections, the DSL-AC68U eliminates the performance drops that plague other routers with busy networks and maximizes both range and stability. So even on the busiest home networks, HD video streaming is always smooth, the latency low for online gaming and VoIP calls, and file downloads are never interrupted.
The easy-to-use ASUSWRT graphical user interface unlocks the power of the DSL-AC68U giving robust control to optimize your network for you. 30-second set-up and easy traffic management means even network newbies can enjoy its sophisticated features, while power users will love its IPv6 support, multiple wireless SSIDs and secure VPN access.
