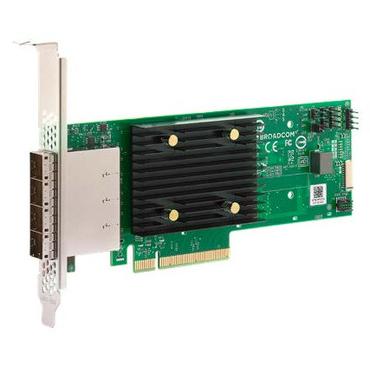

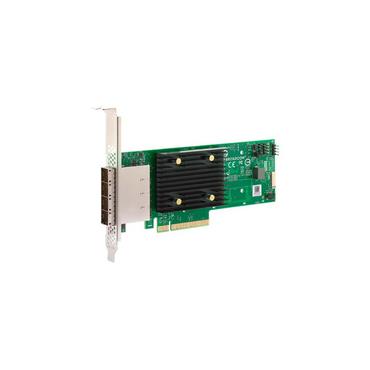

Lenovo ThinkSystem 440-16e - lagringskontrol - SATA 6Gb/s / SAS 12Gb/s - PCIe 4.0 x8
Produktbeskrivelse | Lenovo ThinkSystem 440-16e - lagringskontrol - SATA 6Gb/s / SAS 12Gb/s - PCIe 4.0 x8 |
Enhedstype | Lagringskontrol - indstikskort - lavprofil |
Bustype | PCIe 4.0 x8 |
Interface | SATA 6Gb/s / SAS 12Gb/s |
Dataoverførselshastighed | 12 Gbit/s |
Understøttede enheder | Harddisk, solid state drev |
Antal kanaler | 16 |
Maks. antal lagerenheder | 16 |
Systemkrav | Microsoft Windows Server 2016, Microsoft Windows Server 2019, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 7.7, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, Red Hat Enterprise Linux 7.9 |
Producentgaranti | 1 års garanti |
Designet for | ThinkSystem SR530 7X08; SR590 7X99; SR630 7X02; SR630 V2 7Z71; SR645 7D2X; SR650 7X06; SR650 V2 7Z73; SR665 7D2V, 7D2W; ST650 V2 7Z74 |
Produktdatablad |
|
Enhedstype | Lagringskontrol - indstikskort - lavprofil |
Host Bus | PCIe 4.0 x8 |
Interface | SATA 6Gb/s / SAS 12Gb/s |
Dataoverførselshastighed | 12 Gbit/s |
Understøttede enheder | Harddisk, solid state drev |
Antal kanaler | 16 |
Maks. antal lagerenheder | 16 |
Processor | Broadcom SAS3816 |
Interface | 4 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) (intern) |
Udstyr inkluderet | Simpelt beslag |
Egenskaber | Disk Data Format (DDF) support, CacheCade, S.M.A.R.T. support, Self-Encrypting Drive (SED) support, FastPath, JBOD support |
Overensstemmelsesstandarder | EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950 |
OS nødvendig | Microsoft Windows Server 2016, Microsoft Windows Server 2019, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 7.7, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, Red Hat Enterprise Linux 7.9 |
Service & Support | Begrænset garanti - 1 år |
Min. driftstemperatur | 10 °C |
Maks. driftstemperatur | 55 °C |
Fugtighedsgrad ved brug | 20 - 90 % (ikke-kondenserende) |
Designet for | Lenovo ThinkSystem SR530 7X08 ¦ Lenovo ThinkSystem SR590 7X99 ¦ Lenovo ThinkSystem SR630 7X02 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 7X06 ¦ Lenovo ThinkSystem SR650 V2 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem ST650 V2 7Z74 |
