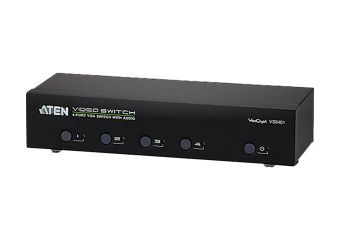

ATEN VanCryst VS0401 video-/audioswitch - 4 porte - desktop

Producent: Aten
Produkt nr.: VS0401-AT-G
EAN: 4710423778474
Varenummer: 504652
Lagerstatus:
  0 stk. København
  0 stk. Aarhus
+5 stk. Fjernlager
Leveringstid: 1-3 dage
Mere info
774,- DKK
Produktbeskrivelse ATEN VanCryst VS0401 - video-/audioswitch - 4 porte - desktop
Enhedstype Video-/audioswitch - 4 porte
Pakningstype Desktop
Undertype VGA / audio
Porte 4 x VGA / audio
Dimensioner (B x D x H) 20 cm x 7.61 cm x 4.4 cm
Vægt 660 g
Enhedstype Video-/audioswitch - 4 porte
Pakningstype Desktop
Undertype VGA / audio
Porte 4 x VGA / audio
Maksimum opløsning 1920 x 1440
Maksimal videobåndbredde 300 MHz
Statusindikatorer Strøm, vælg
Interface 4 x VGA input - HD-15 ¦ 4 x audio-input - mini-jack ¦ 1 x administration (RS-232) - DB-9 ¦ 1 x VGA output - HD-15 ¦ 1 x audio-output - mini-jack ¦ 1 x IrDA - mini-jack
Strømenhed Ekstern strømforsyning
Strømforbrug ved drift 0.55 Watt
Overensstemmelsesstandarder Plug and Play, RoHS, DDC, WEEE
Bredde 20 cm
Dybde 7.61 cm
Højde 4.4 cm
Vægt 660 g
Min. driftstemperatur 0 °C
Maks. driftstemperatur 50 °C
Fugtighedsgrad ved brug 0 - 80 % (ikke-kondenserende)
Min. lagertemperatur -20 °C
Maks. Opbevaringstemperatur 60 °C

The VS0401 4-port VGA switch with audio allows you to connect four audio/video source computers to a single monitor or projector with full audio and quickly switch between the devices for use.
VS0401 features built-in bi-directional RS-232 serial port for high-end system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0401 to be controlled by secondary systems with advanced functions such as; port switching, auto switching, front panel pushbutton lock, and power on detection.
The VS0401 is perfect for the meeting room, media centers, class rooms, or any presentation environment requiring multiple audio/video sources to be accessed on a single display.
