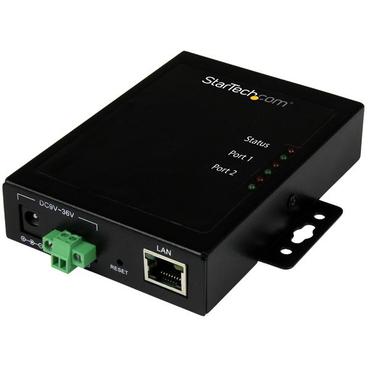

StarTech.com 2 Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable - Serial Device Server - RS232 Serial-Over-IP (NETRS2322P) - enhedsserver
Produktbeskrivelse | StarTech.com 2 Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable - Serial Device Server - RS232 Serial-Over-IP (NETRS2322P) - enhedsserver |
Enhedstype | Enhedsserver |
Formfaktor | Montebar i væggen |
Lokalisering | Australien, Nordamerika, United Kingdom, Europa |
Antal porte | 2 |
Dataforbindelsesprotokol | Ethernet, Fast Ethernet, RS-232 |
Udstyr inkluderet | Strøm terminalblok |
OS nødvendig | Apple MacOS, Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
Effekt | AC 120/230 V / DC 9 - 36 V |
Overskudsspænding | Ja |
Dimensioner (B x D x H) | 8 cm x 11.3 cm x 2.5 cm |
Vægt | 310 g |
Producentgaranti | 2 års garanti |
Produktdatablad |
|
Enhedstype | Enhedsserver |
Bredde | 8 cm |
Dybde | 11.3 cm |
Højde | 2.5 cm |
Vægt | 310 g |
Fås i farverne | Sort |
Lokalisering | Australien, Nordamerika, United Kingdom, Europa |
Model | Montebar i væggen |
Antal porte | 2 |
Forbindelsesteknologi | Kabling |
Dataoverførselshastighed | 460.8 Kbps |
Dataforbindelsesprotokol | Ethernet, Fast Ethernet, RS-232 |
Netværks/overføselsprotokol | TCP/IP, UDP/IP, ICMP/IP, BOOTP, DHCP |
Protokol til fjernadministration | Telnet |
Statusindikatorer | Status, LAN, link/aktivitet |
Egenskaber | Komplet duplex ydeevne, auto-negotiation, auto-uplink (auto MDI/MDI-X), 15 KV Electrostatic Discharge Protection, nulstillingsknap, 8 KV Contact Electrostatic Discharge Protection |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u |

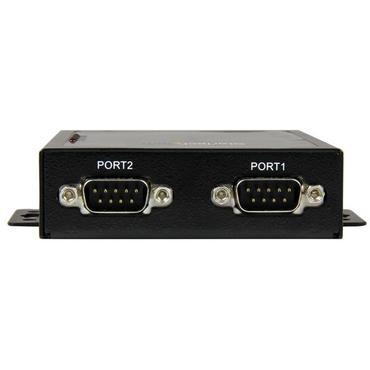

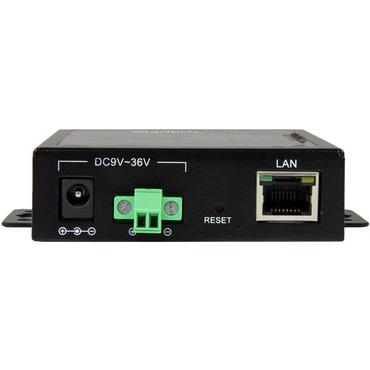

Interface | 2 x RS-232 - DB-9 ¦ 1 x 100Base-TX - RJ-45 |

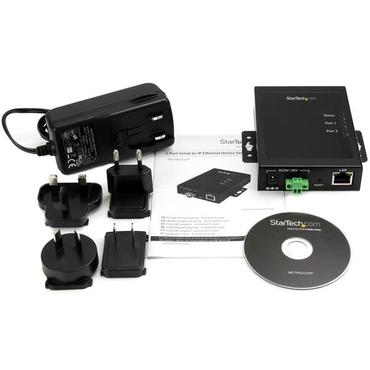

Udstyr inkluderet | Strøm terminalblok |
Overensstemmelsesstandarder | FCC, RoHS, WEEE, RCM |
Strømenhed | Ekstern strømforsyning |
Overskudsspænding | Ja |
Nødvendig spænding | AC 120/230 V / DC 9 - 36 V |
Med software | Drivers & Utilities, Virtual COM software (kun Windows) |
OS nødvendig | Apple MacOS, Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
Service & Support | Begrænset garanti - 2 år |
Min. driftstemperatur | 0 °C |
Maks. driftstemperatur | 85 °C |
