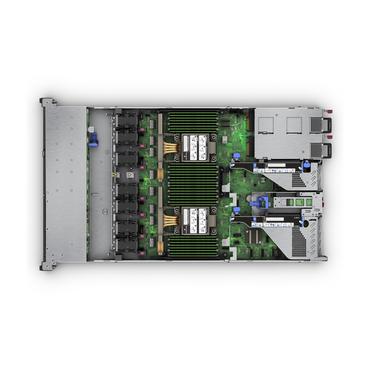

Hewlett-Packard P77236-425 Server - Stativ (1U) - 1000 W - Intel® Xeon Silver - 2 GHz
128 GB - DDR5-SDRAM - 10 Gigabit Ethernet - 16 kerner - 2x RJ-45 - 2,0
Processor
| Processorproducent | Intel; Intel |
| L3-cache | 30 MB |
| Processorserie | Intel® Xeon Silver; Intel® Xeon Silver |
| Processormodel | 4514Y; 4514Y |
| Processorfrekvens | 2 GHz; 2 GHz |
| Processor boost frekvens | 3,4 GHz; 3,4 GHz |
| Processorkerner | 16; 16 |
| Processor-cache | 30 MB; 30 MB |
| Antal installerede processorer | Ja; 1 |
| Processor cache type | L3 |
Hukommelse
| Antal hukommelsesstik | 16 |
| Intern hukommelse | 128 GB; 128 GB |
| Intern hukommelsestype | DDR5-SDRAM; DDR5-SDRAM |
| Hukommelsesstik | 16x DIMM; 4 x 32 GB |
| Hukommelseslayout (slots x størrelse) | 4 x 32 GB |
| Hukommelsesur hastighed | 5600 MHz; 5600 MHz |
| Maksimal intern hukommelse | 4 TB; 4000 GB |
Lagring
| Maksimal lagerkapacitet | 153,6 TB; 153,6 TB |
| Datalagringsdriver installeret | Nej |
| Antal understøttede HHD'er | 8 |
| Understøttede HDD-størrelser | SFF tommer |
| SSD-grænsefladetype | PCI Express 4.0 |
| Understøtter RAID | Ja; Ja |
| Understøttede RAID-kontroller | HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device; HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device |
| Optisk drevtype | Nej |
Netværk
| LAN Kontroller | Broadcom BCM57416; Broadcom BCM57416 |
| Ethernet LAN | Ja; Ja |
| Ethernet-grænsefladetype | 10 Gigabit Ethernet; 10 Gigabit Ethernet |
Porte & Grænseflader
| Ethernet LAN-porte (RJ-45) | 2; 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 3; 3 |
| Udvidelsesporte | 2-slots (x16 FH, x16 HH) as standard. Upgradeable to 3rd slot in HH (or remove Slot 2 bracket to be FH at Slot 3) in a 2nd processor configuration. And maximum 2 OCP 3.0 PCIe5 slots.; 2 |
| Antal VGA-porte (D-sub) | Ja; 1 |
Design
| Kabinettype | Stativ (1U); Stativ (1U) |
Præstation
| Trusted Platform Module (TPM) | Ja; Ja |
| Administrationsplatform | Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO Advanced, HPE OneView Advanced and HPE Compute Ops Management Refer to the iLO 6 User Guide |
| Trusted Platform Module (TPM) version | 2.0; 2,0 |
Strømstyring
| Strømforsyningstype | 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit; Titanium |
| Redundant strømforsyning | Ja; Ja |
| Strømforsyning | 1000 W; 1000 W |
| Antal installerede strømforsyninger | Ja |
| Antal af hovedstrømforsyninger | 2; 2 |
Funktioner
| Processortråde | 32 |
Vægt & størrelser
| Bredde | 753,1 mm; 753,1 mm |
| Dybde | 434,6 mm; 434,6 mm |
| Højde | 42,9 mm; 42,9 mm |
Andre funktioner
| Lagerdisk type | None ship standard, 8 SFF supported |
| Standard ventilatorer | 7x High Performance Fans |
| Antal understøttede processorer | Ja |
| Sikkerhedsfunktioner | UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits. For full security features refer to the QuickSpecs. |
