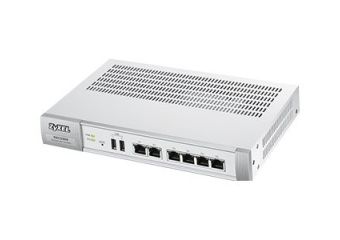

Zyxel NXC2500 - styringsenhed for netværk
| Produktbeskrivelse | Zyxel NXC2500 - styringsenhed for netværk |
| Enhedstype | Styringsenhed for netværk |
| Formfaktor | Ekstern |
| Lokalisering | Europa |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Præstation | Firewall-gennemløb: 1 Gbps |
| Kapacitet | Maksimum antal adgangs punkter: 8 |
| Effekt | AC 120/230 V / DC 12 V |
| Dimensioner (B x D x H) | 24.2 cm x 17.539 cm x 3.55 cm |
| Vægt | 1.254 kg |
Produktdatablad |
|
| Enhedstype | Styringsenhed for netværk |
| Bredde | 24.2 cm |
| Dybde | 17.539 cm |
| Højde | 3.55 cm |
| Vægt | 1.254 kg |
| Lokalisering | Europa |
| Model | Ekstern |
| Forbindelsesteknologi | Kabling |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Routingprotokol | Statisk IP routing, police-baseret routing (PBR) |
| Protokol til fjernadministration | SNMP, Telnet, HTTP, HTTPS, SSH, CLI |
| Præstation | Firewall-gennemløb: 1 Gbps |
| Kapacitet | Maksimum antal adgangs punkter: 8 |
| Egenskaber | Firewallbeskyttelse, NAT-understøtning, aktivitet, understøttet af LDAP, VLAN-understøttet, DiffServ understøttet, MAC-adresse-filtrering, Wireless Intrusion Detection System (WIDS), understøttelse af Wi-Fi-multimedie (WMM), Auto Channel Select (ACS), RADIUS support, DHCP server, blæserløs, DNS server, DHCP videresendelse, CAPWAP support, rogue access point detektion, DHCP klient, Captive Portal |
| Krypterings algoritme | SSL, WPA, WPA2, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WEP |
| Autentificeringsmetode | Secure Shell (SSH), RADIUS, LDAP, Active Directory |
| Overensstemmelsesstandarder | IEEE 802.1x |
| Interface | 6 x 1000Base-T - RJ-45 ¦ 2 x USB - Type A |
| MTBF (forventet tid mellem fejl) | 815,464 timer |
| Overensstemmelsesstandarder | C-Tick, EN55022, EN55024, CISPR 22, FCC Part 15 B, EN 60950-1, BSMI CNS 13438, Energy-Related Products (ErP) Lot 6, LVD |
| Strømenhed | Intern strømforsyning |
| Nødvendig spænding | AC 120/230 V / DC 12 V |
| Min. driftstemperatur | 0 °C |
| Maks. driftstemperatur | 40 °C |
| Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
Delivering a good wireless LAN service that stands up to the demands of connecting users to the latest high bandwidth applications is not easy. The BYOD (Bring Your Own Device), mobility and 3G Wi-Fi tablet and smart phone technology all present scalability, manageability and functionality challenges to business Wi-Fi installations. To enable businesses to addressing these challenges ZyXEL has developed the NXC2500, an all-in-one, intelligent Wireless LAN Controller. The ZyXEL NXC2500 is designed to provide resellers and businesses with a solution that works as an AP planning, deployment, monitoring and maintenance solution while offering management, authentication and guest access within an all-in-one device.
As standard the ZyXEL NXC2500 supports the initial management of 8 APs and provides scalability with a maximum supported total up to 24 APs, the "pay-as-you-grow" principle provides reassurance and future proofing for small and medium-sized businesses, hotels and educational institutes to implement secured, centralized wireless LAN networks.
