| Produktbeskrivelse
|

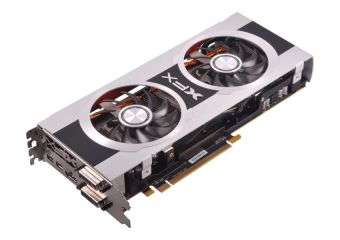

XFX Radeon HD 7870 - Double Dissipation Edition - grafikkort - Radeon HD 7870 - 2 GB
|
| Enhedstype
|
Grafikkort
|
| Bus Type
|
PCI Express 3.0 x16
|
| Grafik engine
|
AMD Radeon HD 7870
|
| Hukommelse
|
2 GB GDDR5
|
| Kerne clock
|
1000 MHz
|
| Effektiv hukommelses clock
|
4.8 GHz
|
| Hukommelses interface
|
256-bit
|
| Maksimum opløsning
|
4096 x 3112
|
| Max Opløsnings Detaljer
|
DVI: 2560 x 1600 / DisplayPort: 4096 x 2160 / HDMI: 4096 x 3112 / VGA: 2048 x 1536
|
| Maks. antal understøttede monitorer
|
4
|
| Interfacer
|
DVI-I (dobbelt link) (HDCP) ¦ HDMI ¦ 2 x Mini DisplayPort ¦ DVI-D (enkelt-link)
|
| API-understøttet
|
DirectX 11, DirectCompute 11, OpenGL 4.2, OpenCL 1.2, Microsoft C++ AMP
|
| Dimensioner (B x D x H)
|
3.8 cm x 24.1 cm x 11.1 cm
|
Produktdatablad |
|
| Enhedstype |
Grafikkort |
| Bus Type |
PCI Express 3.0 x16 |
| Grafik engine |
AMD Radeon HD 7870 |
| Kerne clock |
1000 MHz |
| Procesteknologi |
28 nm |
| Maksimum opløsning |
4096 x 3112 |
| Max Opløsnings Detaljer |
DVI: 2560 x 1600 / DisplayPort: 4096 x 2160 / HDMI: 4096 x 3112 / VGA: 2048 x 1536 |
| Maks. antal understøttede monitorer |
4 |
| Interfacer |
DVI-I (dobbelt link) (HDCP) ¦ HDMI ¦ 2 x Mini DisplayPort ¦ DVI-D (enkelt-link) |
| API-understøttet |
DirectX 11, DirectCompute 11, OpenGL 4.2, OpenCL 1.2, Microsoft C++ AMP |
| Egenskaber |
Integreret 7.1 kanal HD Audio kontroller, High dynamic-range (HDR) rendering, integreret HD Audio styreenhed, AMD Eyefinity Technology, AMD HD3D Technology, AMD PowerPlay teknologi, Dual Fan Design, AMD CrossFireX Technology, AMD PowerTune teknologi, ATI Unified Video Decoding (UVD), AMD App Acceleration, Shader Model 5.0, Adaptive Anti-Aliasing, Morphological Anti-Aliasing (MLAA), Super-Sample Anti-Aliasing (SSAA), AMD HD Media Accelerator, Graphics Core Next (GCN), HDCP |
| Størrelse |
2 GB |
| Teknologi |
GDDR5 SDRAM |
| Effektiv clock hastighed |
4.8 GHz |
| Busbredde |
256-bit |
| OS nødvendig |
Microsoft Windows Vista / XP / 7 |
| Påkrævet strømforsyning |
650 W |
| Yderligere krav |
CD-ROM, tilstødende PCI-plads, to 6-pin strøm connectors |
| Udstyr inkluderet |
CrossFire bro, dørophæng til XFX serienummer |
| Medfølgende ledninger |
1 x CrossFire intern bro |
| Med software |
Drivers & Utilities, AMD Catalyst Control Center |
| Bredde |
3.8 cm |
| Dybde |
24.1 cm |
| Højde |
11.1 cm |
The AMD Radeon HD 7800 series is the upgrade gamers deserve. Based on the award-winning GCN Architecture, these cards are engineered for supremacy with the industry's very first 28 nm GPU design. Packed with incredible features, such as support for PCI Express 3.0, the ultra-efficient AMD ZeroCore Power technology and gaming at resolutions up to 7680 x 3200 with AMD Eyefinity technology, serious gaming starts here.
This card features XFX's unique overclock GPU core at 1050 MHz which is 50 MHz more than the base models. Push your gaming experience to the max.
