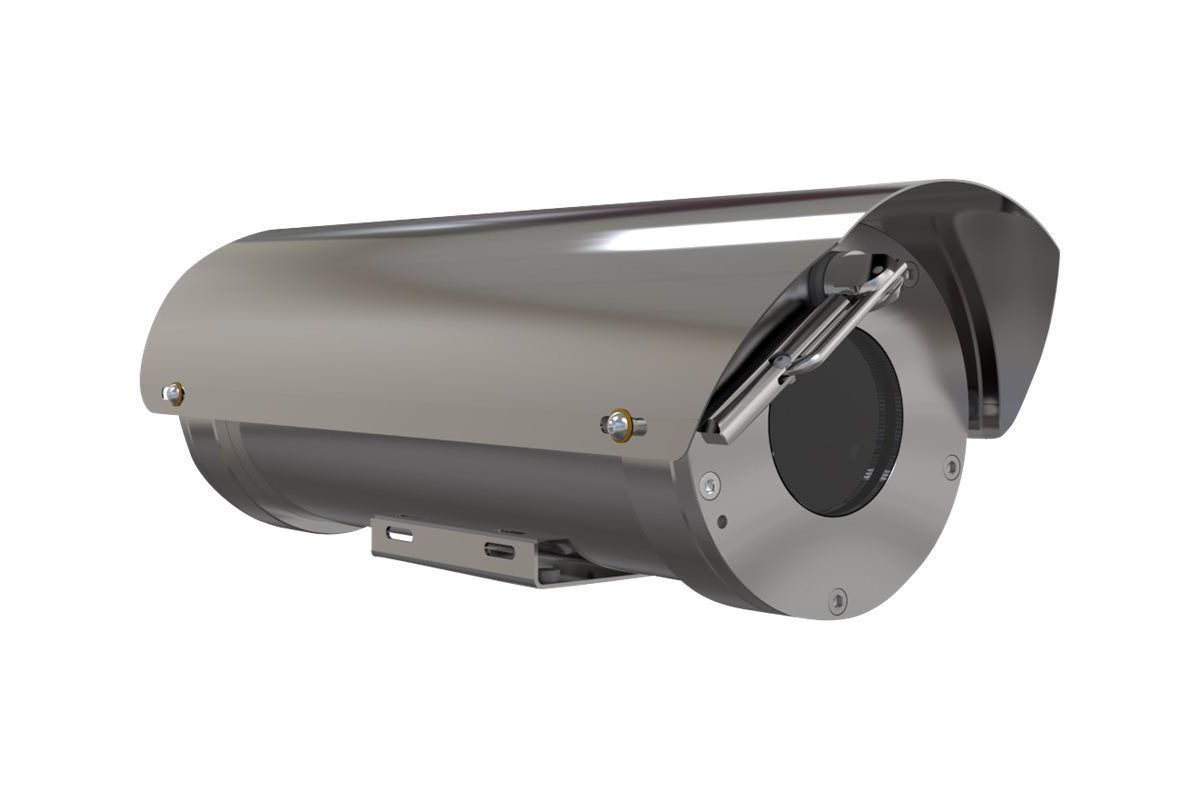

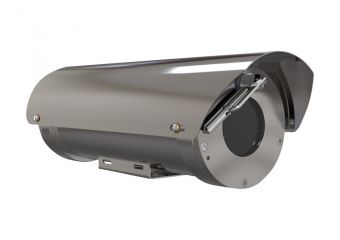

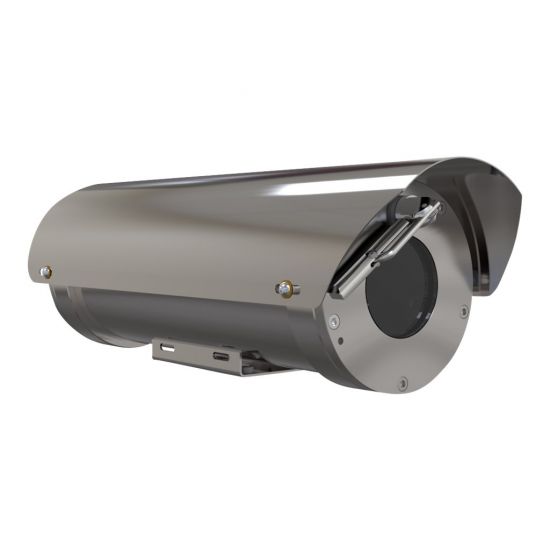

AXIS XF40-Q1765 Explosion Protected Fixed Network Camera - CCOE - netværksovervågningskamera
Produktbeskrivelse | AXIS XF40-Q1765 Explosion Protected Fixed Network Camera - CCOE - netværksovervågningskamera |
Enhedstype | Netværksovervågningskamera - fast - udendørs - eksplotionssikret |
Dimensioner (B x D x H) | 16.5 cm x 48 cm x 17.6 cm |
Vægt | 14 kg |
Connectivity teknologi | Fortrådet |
Kamera | Farve - Dag/nat |
Optisk zoom | 18 x |
Maksimum opløsning | 1920 x 1080 |
Billedhastighed (maks.) | 30 frames pr. sekund |
Video Modes | 1080p |
Billedsensortype | CMOS - 1/2.9" |
Minimumbelysning | 0.5 lux - farve - F1.6 - 30 IRE ¦ 0.04 lux - S/H - F1.6 - 30 IRE |
Brændvidde | 4.7 mm - 84.6 mm |
Fokusindstilling | Automatisk |
Objektiv Iris | F/1.6-2.8 |
Interface | Ethernet 10Base-T/100Base-TX |
Spænding | AC 24 V |
Egenskaber | Manuel hvidbalancering, Backlight Compensation (BLC), manuel eksponering, skarphedskontrol, farvekontrol, lysstyrkekontrol, Wide Dynamic Range (WDR), meddelelsesbillede til e-mail, Text Caption Overlay, kodeordsbeskyttelse |
Producentgaranti | 3 års garanti |
Miljømæssige parametre (operativ) | -60 °C - 40 °C; 10 - 100% relativ luftfugtighed |
Produktdatablad |
|
Enhedstype | Netværksovervågningskamera |
Connectivity teknologi | Fortrådet |
Bredde | 16.5 cm |
Dybde | 48 cm |
Højde | 17.6 cm |
Vægt | 14 kg |
Type | Farve - Dag/nat - fast - udendørs - eksplotionssikret |
Digital videoformat | MJPEG, H.264 |
Max digital video opløsning | 1920 x 1080 |
Video Modes | 1080p |
Digital zoom | 12 |
Belysningsområde | 2 sek - 1/28000 sek |
Minimumbelysning | 0.5 lux - farve - F1.6 - 30 IRE ¦ 0.04 lux - S/H - F1.6 - 30 IRE |
Billedhastighed (maks.) | 30 frames pr. sekund |
RAM | 256 MB |
Flashhukommelse | 128 MB |
Egenskaber | Manuel hvidbalancering, Backlight Compensation (BLC), manuel eksponering, skarphedskontrol, farvekontrol, lysstyrkekontrol, Wide Dynamic Range (WDR), meddelelsesbillede til e-mail, Text Caption Overlay, kodeordsbeskyttelse |
Type | CMOS 1/2.9" |
Optisk zoom | 18 x |
Brændvidde | 4.7 mm - 84.6 mm |
Objektiv Iris | F/1.6-2.8 |
Fokusindstilling | Automatisk |
Vandret synsfelt (grader) | 4 - 59 |
Lodret synsfelt (grader) | 2 - 35 |
Netværksgrænseflade | Ethernet 10Base-T/100Base-TX |
Netværksprotokoller | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
Porte | LAN - RJ-45 |
Udstyr inkluderet | Solblænde, AXIS Surveillance microSDXC Card 64 GB |
Overensstemmelsesstandarder | C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, IEC 60529 IP66, EN 61000-6-1, ICES-003 Klasse A, NEMA Type 4X, EN 61000-6-2, IEC 60950-1, EN 60950-1, ATEX Directive, IP67, FCC Part 15 B Class A, IP66, IECEx, IEC 62262 IK08, IEC 62262 IK10, EN 50121-4, AS/NZS CISPR 22, IEC 60950-22, EN 60950-22, EN 55022 Class A, CLUS |
Strømkrav | AC 24 V |
Strømenhed | 80 Watt |
Med software | Windows dekoder 1-brugerlicens |
Service & Support | Begrænset garanti - 3 år |
Min. driftstemperatur | -60 °C |
Maks. driftstemperatur | 40 °C |
Relativ luftfugtighed (operativ) | 10 - 100% |
XF40-Q1765 Explosion Protected Fixed Network Camera features a 316L stainless steel housing certified for hazardous areas according to amongst others ATEX, IECEx, cLCus and Class I, II/Div 1 for OSHA.
The cameras are designed not to cause an explosion. Their housings prevent any inside spark or explosion from escaping and igniting gases or dust in the surrounding air. The cameras can also be equipped with certified, explosion protected accessories, such as wall mounts, pole top brackets and a pressurized washer tank.
They provide superb image quality and color fidelity, as well as a high level of flexible integration with other equipment, such as access control and fire alarms. They offer flexible remote accessibility, using any existing IP-based networks.
