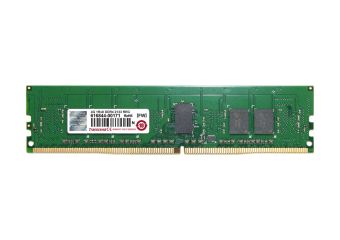

Transcend - 4 GB: - DDR4 - 2133MHz - DIMM 288-PIN - ECC - CL15
| Produktbeskrivelse | Transcend - DDR4 - modul - 4 GB - DIMM 288-PIN - 2133 MHz / PC4-17000 - registreret |
| Produkttype | Hukommelsesmodul |
| Kapacitet | 4 GB |
| Hukommelsestype | DDR4 SDRAM - DIMM 288-PIN |
| Opgraderingstype | Generisk |
| Dataintegritetskontrol | ECC |
| Hastighed | 2133 MHz (PC4-17000) |
| Søgetids Timinger | CL15 |
| Egenskaber | Temperaturovervågning, single rank, On-Die Termination (ODT), Serial Presence Detect (SPD), seksten rækker, registreret |
| Spænding | 1.2 V |
| Producentgaranti | Begrænset livtidsgaranti |
| Designet for | ASRock EP2C612D16; ASRock Rack EP2C612, EP2C612D16, EPC612; ASUS RS400, RS500, RS700, RS720Q, TS500, Z10, Z10PE, Z10PH, Z10PR; Dell PowerEdge T630; Precision Tower 5810, 7910; Supermicro SuperServer 1028, 2028, 5018, 5028, 6018, 6028, 7048, F618, F618R2, F628, F628R3; SuperStorage Server 5028R |
Produktdatablad |
|
| Kapacitet | 4 GB |
| Opgraderingstype | Generisk |
| Type | DRAM hukommelsesmodul |
| Teknologi | DDR4 SDRAM |
| Model | DIMM 288-PIN |
| Modul Højde (tommer) | 1.23 |
| Hastighed | 2133 MHz (PC4-17000) |
| Søgetids Timinger | CL15 |
| Dataintegritetskontrol | ECC |
| Egenskaber | Temperaturovervågning, single rank, On-Die Termination (ODT), Serial Presence Detect (SPD), seksten rækker, registreret |
| Modulkonfiguration | 512 x 72 |
| Organisering af chips | 512 x 8 |
| Spænding | 1.2 V |
| Overensstemmelsesstandarder | RoHS |
| Service & Support | Begrænset livtidsgaranti |
| Designet for | ASRock EP2C612D16SM-2T ¦ ASRock Rack EP2C612D16-2L2T, EP2C612D16FM, EP2C612D16FM-N, EP2C612D8, EP2C612D8-2T8R, EP2C612D8-8R, EPC612D8, EPC612D8A, EPC612D8A-TB ¦ ASUS RS400-E8-PS2, RS400-E8-PS2-F, RS500-E8-RS4, RS700-E8-RS4, RS700-E8-RS8, RS720Q-E8-RS12, TS500-E8-PS4, Z10PA-D8, Z10PA-U8, Z10PE-D16, Z10PE-D16 WS, Z10PE-D16/10G-2T, Z10PE-D16/4L, Z10PE-D8 WS, Z10PH-D16, Z10PR-D16 ¦ Dell PowerEdge T630 ¦ Dell Precision Tower 5810, 7910 ¦ Supermicro SuperServer 1028GR-TR, 1028GR-TRT, 1028R-TDW, 1028R-WC1R, 1028R-WC1RT, 1028R-WTR, 1028R-WTRT, 1028U-TR4+, 1028U-TR4T+, 1028U-TRT+, 2028GR-TR, 2028GR-TRH, 2028GR-TRHT, 2028GR-TRT, 2028R-C1R4+, 2028R-C1RT4+, 2028TP-DC0FR, 2028TP-DC0R, 2028TP-DC0TR, 2028TP-DC1FR, 2028TP-DC1R, 2028TP-DC1TR, 2028TP-DTFR, 2028TP-DTR, 2028TP-DTTR, 2028TP-HC0FR, 2028TP-HC0R, 2028TP-HC0TR, 2028TP-HC1FR, 2028TP-HC1R, 2028TP-HC1TR, 2028TP-HTFR, 2028TP-HTR, 2028TP-HTTR, 2028U-TR4T+, 5018R-M, 5018R-MR, 5028R-WR, 6018R-MT, 6018R-MTR, 6018R-TD8, 6018R-TDW, 6018R-WTR, 6018R-WTRT, 6018U-TR4+, 6018U-TR4T+, 6018U-TRT+, 6028R-T, 6028R-TDWNR, 6028R-TR, 6028R-TRT, 6028R-TT, 6028R-WTR, 6028R-WTRT, 6028U-TR4+, 6028U-TR4T+, 6028U-TRT+, 7048R-C1R4+, 7048R-C1RT4+, 7048R-TR, 7048R-TRT, F618R2-FC0, F618R2-FT, F618R2-R72+, F618R2-R72PT+, F618R2-RT+, F618R2-RTPT+, F618R3-FT, F628R3-FC0, F628R3-FT, F628R3-R72B+, F628R3-R72BPT+, F628R3-RTB+, F628R3-RTBPT+ ¦ Supermicro SuperStorage Server 5028R-E1CR12L |
DDR4 registered DIMM is high-speed, low power memory module that use 512 Mx8bits DDR4 SDRAM in FBGA package and a 4K bits serial EEPROM on a 288-pin printed circuit board. DDR4 registered DIMM is a Dual In - Line Memory Module and is intended for mounting into 288-pin edge connector sockets. Synchronous design allows precise cycle control with the use of system clock. Data I/O transactions are possible on both edges of DQS. Range of operation frequencies, programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.
