| Produktbeskrivelse
|

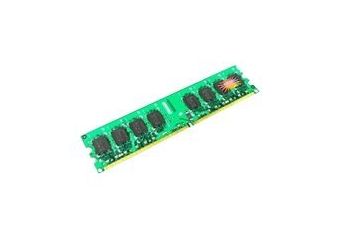

Transcend - DDR2 - modul - 2 GB - DIMM 240-pin - 800 MHz / PC2-6400 - ikke bufferet
|
| Produkttype
|
Hukommelsesmodul
|
| Kapacitet
|
2 GB
|
| Hukommelsestype
|
DDR2 SDRAM - DIMM 240-pin
|
| Opgraderingstype
|
System specifikationer
|
| Dataintegritetskontrol
|
ECC
|
| Hastighed
|
800 MHz (PC2-6400)
|
| Søgetids Timinger
|
CL5
|
| Egenskaber
|
On-Die Termination (ODT), Off-Chip Driver (OCD), Serial Presence Detect (SPD), ikke bufferet
|
| Spænding
|
1.8 V
|
| Producentgaranti
|
Begrænset livtidsgaranti (Tyskland - 30 år)
|
| Designet for
|
ASUS G-SURF365 Republic of Gamers, M2N68-AM, M3A32-MVP Deluxe, M3A78 PRO, M3A78-EM, M3A78-T, M3N WS, P5E AiLifestyle Series, P5E Deluxe Ai Lifestyle Series, P5E WS Professional Workstation Series, P5W64 WS Professional, RS100-E5/PI2, RS120-E5/PA2, TS100-E5/PI4, TS300-E5/PX4; NEC Express5800 110Ge
|
Produktdatablad |
|
| Kapacitet |
2 GB |
| Opgraderingstype |
System specifikationer |
| Type |
DRAM hukommelsesmodul |
| Teknologi |
DDR2 SDRAM |
| Model |
DIMM 240-pin |
| Modul Højde (tommer) |
1.18 |
| Hastighed |
800 MHz (PC2-6400) |
| Søgetids Timinger |
CL5 |
| Dataintegritetskontrol |
ECC |
| Egenskaber |
On-Die Termination (ODT), Off-Chip Driver (OCD), Serial Presence Detect (SPD), ikke bufferet |
| Modulkonfiguration |
256 x 72 |
| Organisering af chips |
128 x 8 |
| Spænding |
1.8 V |
| Kompatible åbninger |
1 x Hukommelse - DIMM 240-pin |
| Overensstemmelsesstandarder |
RoHS |
| Service & Support |
Begrænset livtidsgaranti (Tyskland - 30 år) |
| Designet for |
ASUS G-SURF365 Republic of Gamers, M2N68-AM, M3A32-MVP Deluxe, M3A78 PRO, M3A78-EM, M3A78-T, M3N WS, P5E AiLifestyle Series, P5E Deluxe Ai Lifestyle Series, P5E WS Professional Workstation Series, P5W64 WS Professional, RS100-E5/PI2, RS120-E5/PA2, TS100-E5/PI4, TS300-E5/PX4 ¦ NEC Express5800 110Ge |
The TS256MLQ72V8U is a 256M x 72bits DDR2-800 unbuffered DIMM. The TS256MLQ72V8U consists of 18 pcs 128Mx8bits DDR2 SDRAMs in 68 ball FBGA packages and a 2048 bits serial EEPROM on a 240-pin printed circuit board. The TS256MLQ72V8U is a dual in-line memory module and is intended for mounting into 240-pin edge connector sockets.
Synchronous design allows precise cycle control with the use of system clock. Data I/O transactions are possible on both edges of DQS. Range of operation frequencies, programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.
