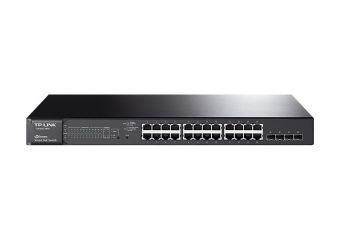

TP-Link JetStream T1600G-28PS - switch - 24 porte - smart - monterbar på stativ
Produktbeskrivelse | TP-Link JetStream T1600G-28PS - switch - 24 porte - smart - monterbar på stativ |
Enhedstype | Switch - 24 porte - L2+ - smart |
Pakningstype | Monterbar på stativ 1U |
Undertype | Gigabit Ethernet |
Porte | 24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE-budget | 192 W |
Præstation | Bagplans switching-kapacitet: 56 Gbps ¦ Fremsendelsespræstation: 41.7 Mpps |
Kapacitet | QoS hardware køer: 8 |
MAC adresse table størrelse | 16K indtastningshukommelse |
Jumborammesupport | 9KB |
Routingprotokol | IGMPv2, IGMP, IGMPv3, MLD |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
Egenskaber | Datatransport, DHCP-understøttelse, auto-negotiation, understøttet af ARP, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, DoS attack beskyttelse, portspejling, IPv6 understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) teknologi, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MDL snooping, LLDP support, Port Security, Management Information Base (MIB), statisk routing, 802.1x autentificering, DiffServ Code Point (DSCP) support, Storm Control, Internet Control Message Protocol (ICMP), Link Aggregation |
Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
Effekt | AC 120/230 V (50/60 Hz) |
Dimensioner (B x D x H) | 44 cm x 22 cm x 4.4 cm |
Systemkrav | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows Vista / XP / 7 / 8 |
Produktdatablad |
|
Enhedstype | Switch - 24 porte - L2+ - smart |
Pakningstype | Monterbar på stativ 1U |
Undertype | Gigabit Ethernet |
Porte | 24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE-budget | 192 W |
Præstation | Bagplans switching-kapacitet: 56 Gbps ¦ Fremsendelsespræstation: 41.7 Mpps |
Kapacitet | QoS hardware køer: 8 |
MAC adresse table størrelse | 16K indtastningshukommelse |
Jumborammesupport | 9KB |
Routingprotokol | IGMPv2, IGMP, IGMPv3, MLD |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
Krypterings algoritme | TLS 1.0, SSL 3.0 |
Autentificeringsmetode | Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2) |
Egenskaber | Datatransport, DHCP-understøttelse, auto-negotiation, understøttet af ARP, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, DoS attack beskyttelse, portspejling, IPv6 understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) teknologi, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MDL snooping, LLDP support, Port Security, Management Information Base (MIB), statisk routing, 802.1x autentificering, DiffServ Code Point (DSCP) support, Storm Control, Internet Control Message Protocol (ICMP), Link Aggregation |
Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
Interface | 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-X SFP |
Strømenhed | Intern strømforsyning |
Nødvendig spænding | AC 120/230 V (50/60 Hz) |
Strømforbrug ved drift | 264.8 Watt |
Udstyr inkluderet | 4 gummifødder |
Rackmonteringspakke | Inkluderet |
Overensstemmelsesstandarder | FCC, RoHS |
Med software | Drivers & Utilities |
OS nødvendig | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows Vista / XP / 7 / 8 |
Bredde | 44 cm |
Dybde | 22 cm |
Højde | 4.4 cm |
Min. driftstemperatur | 0 °C |
Maks. driftstemperatur | 40 °C |
Fugtighedsgrad ved brug | 10 - 90 % (ikke-kondenserende) |
Min. lagertemperatur | -40 °C |
Maks. Opbevaringstemperatur | 70 °C |
Lagerfugtighedsgrad | 5 - 90 % (ikke kondenserende) |
The T1600G-28PS provides 24 10/100/1000 Mbps RJ-45 ports which support 802.3at/af-compliant PoE, with a total PoE power supply up to 192W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch is also equipped with 4 Gigabit SFP slots, expanding your network flexibly. In addition, it provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, and useful security strategies.
