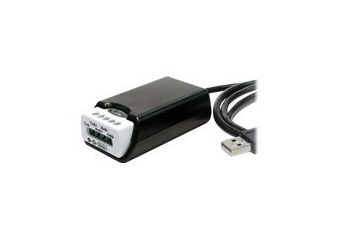

TITAN USB-COMi-TB - seriel adapter
| Produktbeskrivelse | TITAN USB-COMi-TB - seriel adapter |
| Enhedstype | Seriel adapter |
| Model | Ekstern |
| Grænseflade (bus) type | USB |
| Porte | RS-422/485 |
| Dataforbindelsesprotokol | RS-422, RS-485 |
| Dataoverførselshastighed | 921.6 Kbps |
| Systemkrav | Microsoft Windows Server 2003, Linux Kernel 2.4 eller nyere, Microsoft Windows 2000/XP/Vista/7 |
Produktdatablad |
|
| Enhedstype | Seriel adapter |
| Model | Ekstern |
| Grænseflade (bus) type | USB |
| Porte | RS-422/485 |
| Forbindelsesteknologi | Kabling |
| Dataforbindelsesprotokol | RS-422, RS-485 |
| Dataoverførselshastighed | 921.6 Kbps |
| Egenskaber | Strøm fra USB, 10 KV Electrostatic Discharge Protection |
| Interface | 1 x RS-422/485 - terminalblok |
| Tilslutninger | 1 x USB - 4 pin USB Type A |
| Overensstemmelsesstandarder | EN 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, FCC Part 15 B |
| OS nødvendig | Microsoft Windows Server 2003, Linux Kernel 2.4 eller nyere, Microsoft Windows 2000/XP/Vista/7 |
| Min. driftstemperatur | 0 °C |
| Maks. driftstemperatur | 55 °C |
| Fugtighedsgrad ved brug | 5 - 95% |
- Adds one RS-422 or RS-485 serial port by connecting to a USB port
- One 5-pin terminal block connector for easy wiring
- No need to open chassis to set operation modes-upper case can be sliding open for easy RS-422, RS-485 mode settings
- Installed as standard Windows COM port
- Automatic transmit and receive control for 2-wire RS-485 half-duplex mode
- Built-in termination and biasing
- High speed serial port with baud rate up to 921.6K bps
- Non-standard baudrates supported
- LEDs of power, TxD and RxD for easy port monitoring and diagnostic
- Serial port protected with surge protection of 10 KV
- Powered by USB port, no external power adapter required
- Easy Plug and Play installation and RS-422/485 device connection
- Works with USB 1.1 and 2.0 host port
