Produktbeskrivelse
|
TERRATEC DMX 6fire - audio interface
|
Enhedstype
|
Audio interface
|
Pakningstype
|
Ekstern
|
Grænsefladetype
|
USB
|
Lydudgangsmodus
|
5.1 kanal surround
|
DAC-opløsning
|
24 bit
|
Prøvehastighed
|
32 kHz (min) - 192 kHz (maks.)
|
Signalstøjforhold
|
114 dB
|
Hardware-styring og indikatorer
|
Volumenkontrol, forstærkningsstyring
|
Systemkrav
|
Microsoft Windows XP 64-bit Edition, Microsoft Windows XP SP2, Microsoft Windows Vista, Microsoft Windows Vista (64-bit versions)
|
Producentgaranti
|
2 års garanti
|
Produktdatablad |
|
Enhedstype |
Audio interface |
Formfaktor |
Ekstern |
Grænsefladetype |
USB |
Lydudgangsmodus |
5.1 kanal surround |
DAC-opløsning |
24 bit |
Prøvehastighed |
32 kHz (min) - 192 kHz (maks.) |
Signalstøjforhold |
114 dB |
Hardware-styring og indikatorer |
Volumenkontrol, forstærkningsstyring |
Funktioner |
48 V fantomstrøm |
Overensstemmelsesstandarder |
DirectSound, DirectSound3D, ASIO 2.0, WDM |
Interface |
1 x USB - 4 pin USB Type B ¦ 1 x MIDI - 5-PIN DIN ¦ 1 x MIDI - 5-PIN DIN ¦ 2 x audio linje-ind - RCA x 2 ¦ 3 x audio linje-ud - RCA x 2 ¦ 1 x SPDIF input - TOSLINK ¦ 1 x SPDIF output - TOSLINK ¦ 1 x SPDIF input - RCA ¦ 1 x SPDIF output - RCA ¦ 1 x audio linje-ind - RCA x 2 ¦ 1 x audio linje-ind - telefonstereo 6,3 ¦ 1 x hovedtelefoner - telefonstereo 6,3 ¦ 1 x mikrofon - 3 pin XLR / telefon 6,3 mm |
Medfølgende ledninger |
1 x USB-kabel - 1.8 m ¦ 1 x mikrofonadapter ¦ 1 x lyd adapter |
Overensstemmelsesstandarder |
EN55022, EN55024 |
Programmer |
Driver |
OS nødvendig |
Microsoft Windows XP 64-bit Edition, Microsoft Windows XP SP2, Microsoft Windows Vista, Microsoft Windows Vista (64-bit versions) |
Yderligere krav |
CD-ROM |
Detaljer om systemskrav |
Windows XP SP2 - RAM 512 MB ¦ Windows XP 64-bit Edition - RAM 512 MB ¦ Windows Vista - RAM 512 MB |
Service & Support |
Begrænset garanti - 2 år |

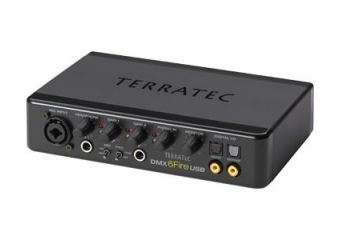

DMX 6Fire USB is the perfect audio system from TerraTec for hi-fi fans, gamers and hobby musicians. The fantastic internal specifications include 24-bit/192 kHz, and the variety of connections feature four analog inputs and outputs, gain-controlled connections for microphone (XLR, 1.4"/6.3 mm combo jack) and headphone, digital I/O (coaxial and optical), monitor level control, USB 2.0 connection and a MIDI I/O. All of this makes the DMX 6Fire USB the perfect sound delivery system for advanced gamers who want surround sound, as well as a valuable and versatile helper in the home studio.
