Produktbeskrivelse
|

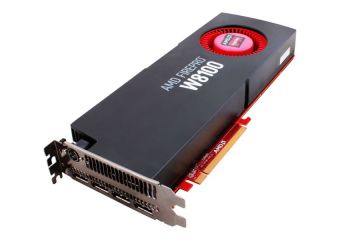

Sapphire AMD FirePro W8100 - grafikkort - FirePro W8100 - 8 GB
|
Enhedstype
|
Grafikkort
|
Bus Type
|
PCI Express 3.0 x16
|
Grafik engine
|
AMD FirePro W8100
|
Hukommelse
|
8 GB GDDR5
|
Strømprocessorer
|
2560
|
Hukommelses interface
|
512-bit
|
Maksimum opløsning
|
4096 x 2160
|
Max Opløsnings Detaljer
|
DVI (Single-Link): 1920 x 1200 / DVI (Dual-Link): 2560 x 1600 / DisplayPort: 4096 x 2160
|
Interfacer
|
4 x DisplayPort ¦ 2 x DVI - med adapter ¦ 3D-briller
|
API-understøttet
|
DirectX 11.2, OpenGL 4.4, OpenCL 2.0
|
Pakketype
|
Detailsalg
|
Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
Enhedstype |
Grafikkort |
Bus Type |
PCI Express 3.0 x16 |
Grafik engine |
AMD FirePro W8100 |
Strømprocessorer |
2560 |
Procesteknologi |
28 nm |
Maksimum opløsning |
4096 x 2160 |
Max Opløsnings Detaljer |
DVI (Single-Link): 1920 x 1200 / DVI (Dual-Link): 2560 x 1600 / DisplayPort: 4096 x 2160 |
Interfacer |
4 x DisplayPort ¦ 2 x DVI - med adapter ¦ 3D-briller |
API-understøttet |
DirectX 11.2, OpenGL 4.4, OpenCL 2.0 |
Egenskaber |
Dual Slot Fan Cooler, Error Correcting Codes (ECC) Memory, AMD PowerTune teknologi, AMD Stream teknologi, AMD GeometryBoost Technology, AMD AutoDetect Technology, Shader Model 5.0, AMD Eyefinity Technology 2.0, Digital Multi-Point Audio (DDMA), Graphics Core Next (GCN), AMD ZeroCore Power teknologi, Partially Resident Textures (PRT), Video Codec Engine (VCE), D.O.P.P., HydraVision, DirectGMA-support, Genlock, Full 30-bit Display Pipeline, Unified Driver Architecture (UDA), Intra-System Framelock Support, Projector Overlap Support, Bezel Compensation, FreeSync Technology |
Størrelse |
8 GB |
Teknologi |
GDDR5 SDRAM |
Busbredde |
512-bit |
Båndbredde |
320 GBps |
OS nødvendig |
Linux (64-bit), Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bit), Linux (32-bit), Windows 8.1 (32/64 bit) |
Min. RAM-størrelse |
2 GB |
Påkrævet strømforsyning |
750 W |
Yderligere krav |
2 x 6 pin PCI Express strømstikforbindelse |
Strømforbrug ved drift |
220 Watt |
Udstyr inkluderet |
Forlængerbøjle |
Medfølgende ledninger |
2 x DisplayPort-DVI kabel |
Med software |
Driver |
Overensstemmelsesstandarder |
UL, VCCI, C-Tick, BSMI, FCC, RoHS, KCC, WEEE |
Pakketype |
Detailsalg |
Service & Support |
Begrænset garanti - 3 år |
Take your projects further, faster with the AMD FirePro W8100 workstation graphics card which adds up to 4.2 TFLOPS of compute power to your graphics-centric workflows and comes equipped with ultrafast GDDR5 onboard memory.
