Produktbeskrivelse
|

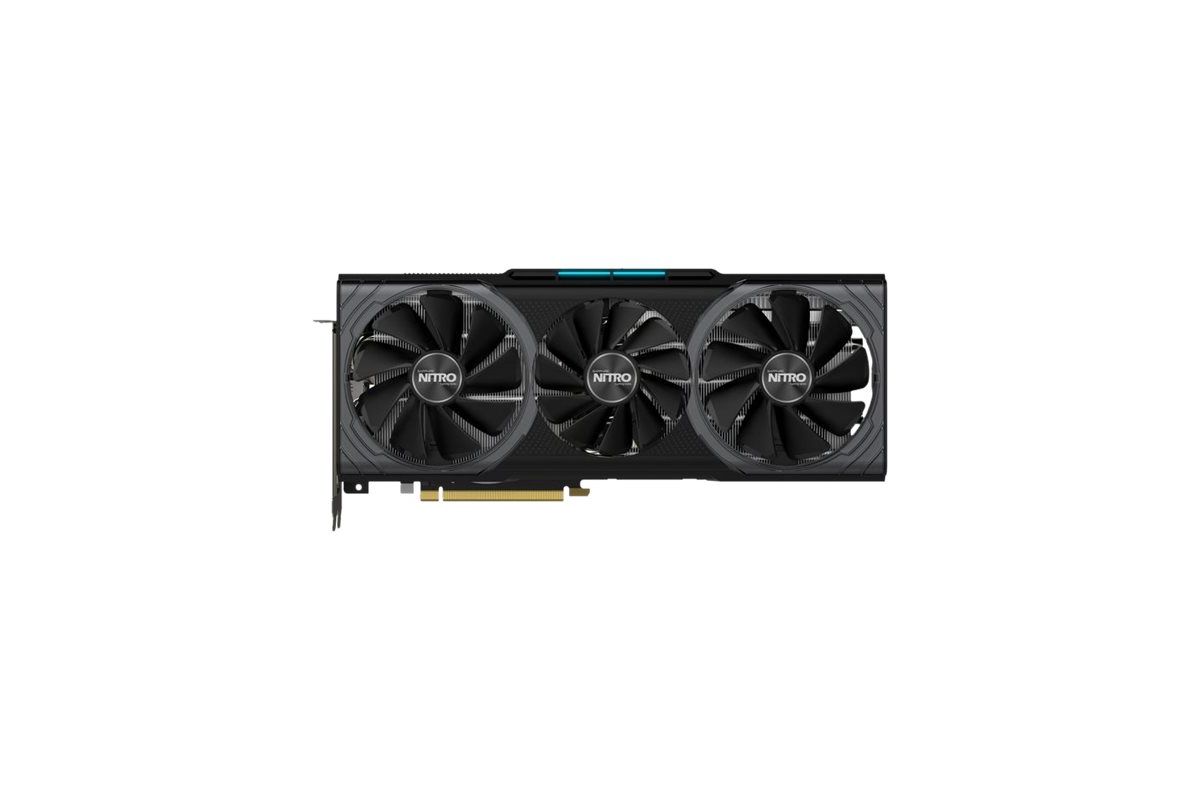

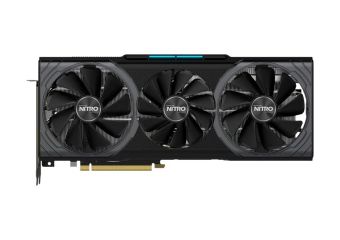

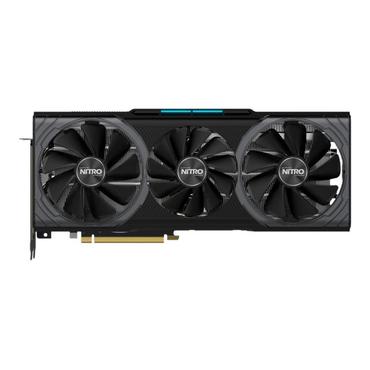

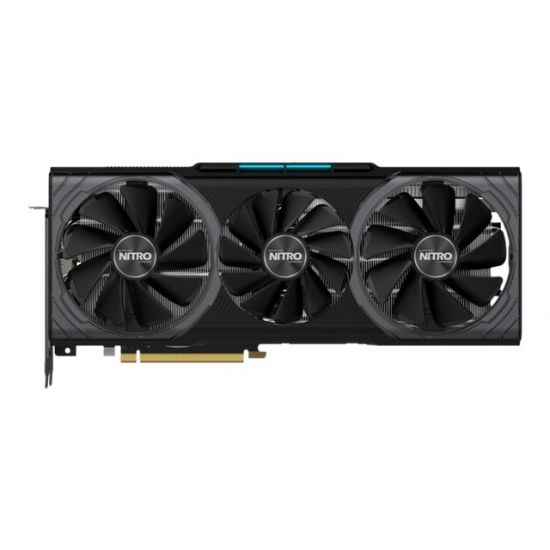

Sapphire NITRO+ RX Vega56 8G HBM2 - grafikkort - Radeon RX VEGA 56 - 8 GB
|
Enhedstype
|
Grafikkort
|
Bus Type
|
PCI Express 3.0 x16
|
Grafik engine
|
AMD Radeon RX VEGA 56
|
Hukommelse
|
8 GB HBM2
|
Kerne clock
|
1550 MHz
|
Strømprocessorer
|
3584
|
Effektiv hukommelses clock
|
1600 MHz
|
Hukommelses interface
|
2048-bit
|
Maksimum opløsning
|
5120 x 2880
|
Max Opløsnings Detaljer
|
DisplayPort: 5120 x 2880 / HDMI: 4096 x 2160
|
Maks. antal understøttede monitorer
|
4
|
Interfacer
|
2 x HDMI ¦ 2 x DisplayPort
|
API-understøttet
|
DirectX 12, OpenGL 4.5, OpenCL 2.0, Vulkan
|
Dimensioner (B x D x H)
|
5.4 cm x 31 cm x 13.3 cm
|
Produktdatablad |
|
Enhedstype |
Grafikkort |
Bus Type |
PCI Express 3.0 x16 |
Grafik engine |
AMD Radeon RX VEGA 56 |
Kerne clock |
1550 MHz |
Strømprocessorer |
3584 |
Procesteknologi |
14 nm |
VR-klar |
Ja |
Maksimum opløsning |
5120 x 2880 ved 60 Hz |
Max Opløsnings Detaljer |
DisplayPort: 5120 x 2880 / HDMI: 4096 x 2160 |
Maks. antal understøttede monitorer |
4 |
Interfacer |
2 x HDMI ¦ 2 x DisplayPort |
API-understøttet |
DirectX 12, OpenGL 4.5, OpenCL 2.0, Vulkan |
Egenskaber |
Dual Bios, LED-indikator, High dynamic-range (HDR) rendering, AMD Eyefinity Technology, Shader Model 5.0, AMD Unified Video Decoder (UVD), Dual ball Bearing Fan, UEFI BIOS, FreeSync Technology, AMD LiquidVR Technology, Frame Rate Target Control(FRTC), AMD High-Bandwidth Memory, AMD VR Ready Premium, AMD XConnect Technology, NITRO Fan Check, NITRO Quick Connect system, NITRO CoolTech, NITRO Free Flow, NITRO Boost, Intelligent Fan Control (IFC) III, Black Diamond Chokes 4, sikringsbeskyttelse, Radeon Chill, Radeon ReLive, HDR Ready |
Størrelse |
8 GB |
Teknologi |
HBM2 |
Effektiv clock hastighed |
1600 MHz |
Busbredde |
2048-bit |
OS nødvendig |
Microsoft Windows 7, Windows 10 |
Påkrævet strømforsyning |
750 W |
Yderligere krav |
2 x 8 pin PCI Express strømstikforbindelse |
Strømforbrug ved drift |
220 Watt |
Overensstemmelsesstandarder |
DisplayPort 1.4 |
Bredde |
5.4 cm |
Dybde |
31 cm |
Højde |
13.3 cm |
The SAPPHIRE NITRO+ RX VEGA 56 8G Limited Edition graphics card is the highly anticipated high-end graphics card from the SAPPHIRE NITRO gaming series family. The NITRO+ RX VEGA 56 Limited Edition card brings out the perfect architecture with factory-overclocked performance and an advanced custom cooling solution enshrouded in a captivating design.
