Produktdatablad |
|
| Enhedstype |

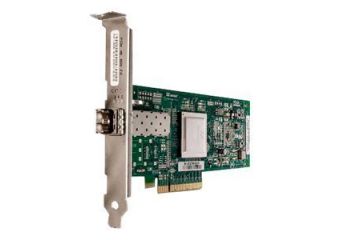

Vært bus adapter |
| Model |
Indstikskort - lavprofil |
| Grænseflade (bus) type |
PCI Express 2.0 x8 |
| Porte |
8Gb Fibre Channel |
| Forbindelsesteknologi |
Kabling |
| Dataforbindelsesprotokol |
8 Gb Fibre Channel |
| Fiberkanal |
FC-SP, FCP-2 |
| Dataoverførselshastighed |
8.5 Gbps |
| Egenskaber |
Auto-negotiation |
| Interface |
1 x 8Gb Fibre Channel |
| Kompatible åbninger |
1 x PCI Express 2.0 x8 |
| Fabrikant Sælger Program |
IBM Express Seller |
| OS nødvendig |
Microsoft Windows Server 2003, SuSE Linux Enterprise Server 9, Red Hat Enterprise Linux 4, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008 |
| Bredde |
2.5 cm |
| Dybde |
16.7 cm |
| Højde |
6.4 cm |
| Vægt |
113 g |
| Service & Support |
Begrænset garanti - 1 år |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
55 °C |
| Fugtighedsgrad ved brug |
10 - 90 % (ikke-kondenserende) |
| Designet for |
IBM System Storage DS3400 Model 41E, DS3400 Model 41X, DS3400 Model 42E, DS3400 Model 42T, DS3400 Model 42X ¦ Lenovo System x3100 M4 2582 ¦ Lenovo System x3100 M5 ¦ Lenovo System x3200 M2 ¦ Lenovo System x3250 M2 ¦ Lenovo System x3250 M3 4252 ¦ Lenovo System x3250 M4 ¦ Lenovo System x3250 M6 ¦ Lenovo System x3300 M4 ¦ Lenovo System x3350 ¦ Lenovo System x3400 ¦ Lenovo System x3450 ¦ Lenovo System x3500 ¦ Lenovo System x3550 ¦ Lenovo System x3550 M2 ¦ Lenovo System x3550 M4 ¦ Lenovo System x3620 M3 ¦ Lenovo System x3630 M3 7377 ¦ Lenovo System x3630 M4 ¦ Lenovo System x3650 ¦ Lenovo System x3650 M2 ¦ Lenovo System x3650 M4 ¦ Lenovo System x3650 M4 HD ¦ Lenovo System x3655 ¦ Lenovo System x3755 ¦ Lenovo System x3850 M2 ¦ Lenovo System x3950 M2 ¦ Lenovo System x3950 X5 |
