Produktbeskrivelse
|

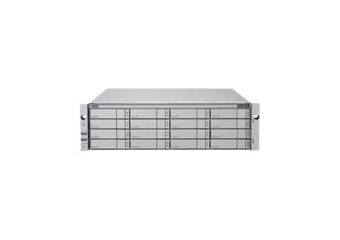

Promise Vess R2600tiS - harddisk-array
|
Enhedstype
|
Harddisk-array
|
Pakningstype
|
Rackversion - 3U
|
Totale array-kapacitet
|
96 TB
|
Grænseflade
|
iSCSI (1 GbE), iSCSI (10 GbE)
|
Host-kanaler
|
6
|
Installeret udstyr/antal moduler
|
16 (installeret) / 16 (maks.)
|
Understøttede drev
|
SATA-600 / SAS-2
|
Lokalisering
|
EMEA
|
Controller for lagring
|
RAID (SATA 6Gb/s / SAS 6Gb/s) - RAID 0, 1, 3, 5, 6, 10, 30, 50, 1E, 0+1, 60
|
Harddisk
|
16 x 6 TB HDD SAS 6Gb/s - hot-swap - Nearline
|
OS nødvendig
|
Red Hat Linux, SuSe Linux, Microsoft Windows 2003, Microsoft Windows Server 2008, CentOS, Ubuntu, Microsoft Windows Vista / 7, VMware ESXi 5, Microsoft Windows Server 2012, Citrix XenServer
|
Effekt
|
AC 120/230 V - 50/60 Hz
|
Overskudsspænding
|
Ja
|
Dimensioner (B x D x H)
|
44.7 cm x 50.7 cm x 13.1 cm
|
Vægt
|
31.3 kg
|
Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
Enhedstype |
Harddisk-array |
Pakningstype |
Rackversion - 3U |
Lokalisering |
EMEA |
Installeret udstyr/antal moduler |
16 |
Understøttet udstyr/antal moduler |
16 |
Understøttede drev |
SATA-600 / SAS-2 |
Totale array-kapacitet |
96 TB |
HDD array Extern Grænseflade |
iSCSI (1 GbE), iSCSI (10 GbE) |
Host-kanaler |
6 |
CPU |
1 x 1.1 GHz |
Type |
RAID |
Interfacetype |
SATA 6Gb/s / SAS 6Gb/s |
Cache-/Bufferstørrelse (Maks.) |
2 GB (installeret) / 16 GB (maks.) |
RAID-niveau |
RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 30, RAID 50, RAID 1E, RAID 0+1, RAID 60 |
Type |
HDD - hot-swap |
Kapacitet |
16 x 6 TB |
Grænsefladetype |
SAS 6Gb/s |
Egenskaber |
Nearline |
Udvidelses-båse |
16 (total) / 0 (fri) x hot-swap - 3.5" |
Interface |
4 x Ethernet 1000Base-T ¦ 1 x Ethernet 1000Base-T (administration) - RJ-45 ¦ 1 x seriel (administration) - RJ-11 ¦ 2 x Ethernet 10Gb |
OS nødvendig |
Red Hat Linux, SuSe Linux, Microsoft Windows 2003, Microsoft Windows Server 2008, CentOS, Ubuntu, Microsoft Windows Vista / 7, VMware ESXi 5, Microsoft Windows Server 2012, Citrix XenServer |
Egenskaber |
Native Command Queuing (NCQ), Tagged Command Queuing (TCQ), hot-swappable blæsere |
Medfølgende ledninger |
1 x seriel adapter |
Overensstemmelsesstandarder |
FCC Klasse A certificeret, UL, VCCI, C-Tick, BSMI, cUL, CB, KCC |
Strømenhed |
3 x intern strømforsyning - hot-plug |
Maks. antal understøttet |
4 |
Overskudsspænding |
Ja |
Skema til overskudsspænding |
N+1 |
Nødvendig spænding |
AC 120/230 V - 50/60 Hz |
Strømforsyning |
250 Watt |
80 PLUS certificering |
80 PLUS |
Bredde |
44.7 cm |
Dybde |
50.7 cm |
Højde |
13.1 cm |
Vægt |
31.3 kg |
Service & Support |
Begrænset garanti - 3 år |
Min. driftstemperatur |
5 °C |
Maks. driftstemperatur |
40 °C |
Fugtighedsgrad ved brug |
10 - 80 % (ikke-kondenserende) |
The Vess R2000's brilliant design consolidates both block and file storage onto a single platform, providing SMBs a cost-effective way to meet performance goals while simplifying administration and adding flexibility. The high availability active Vess R2000 is designed for data-intensive industries, including midsize to large scale surveillance installations or cloud data centers where downtime is unacceptable and where large external storage capacity, support for on-demand expansion, long retention periods, and reliable high bandwidth throughput are a must.
The Vess R2000 conveniently allows users to select an operation mode optimized for video surveillance or for generic IT environments, delivering customized performance and expandable capacity for multiple storage requirements, including unstructured data, archiving and cloud data centers. With innovative features like Perfect Rebuild, which can reduce the time required to rebuild an array by more than 400%, the Vess R2000 delivers the performance and reliability you demand for your application.
