| Produktbeskrivelse
|

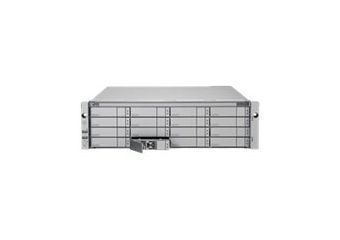

Promise Vess R2600fiD - harddisk-array
|
| Enhedstype
|
Harddisk-array
|
| Pakningstype
|
Rackversion - 3U
|
| Totale array-kapacitet
|
32 TB
|
| Grænseflade
|
iSCSI, 8Gb Fibre Channel
|
| Host-kanaler
|
6
|
| Installeret udstyr/antal moduler
|
16 (installeret) / 16 (maks.)
|
| Understøttede drev
|
SATA-600 / SAS-2
|
| Controller for lagring
|
RAID (SATA 6Gb/s / SAS 6Gb/s) - RAID 0, 1, 3, 5, 6, 10, 30, 50, 1E, 0+1, 60
|
| Harddisk
|
16 x 2 TB HDD - hot-swap
|
| Effekt
|
AC 120/230 V - 50/60 Hz
|
| Overskudsspænding
|
Ja
|
| Dimensioner (B x D x H)
|
44.7 cm x 50.7 cm x 13.1 cm
|
| Vægt
|
31.3 kg
|
| Producentgaranti
|
3 års garanti
|
Produktdatablad |
|
| Enhedstype |
Harddisk-array |
| Pakningstype |
Rackversion - 3U |
| Installeret udstyr/antal moduler |
16 |
| Understøttet udstyr/antal moduler |
16 |
| Understøttede drev |
SATA-600 / SAS-2 |
| Totale array-kapacitet |
32 TB |
| HDD array Extern Grænseflade |
iSCSI, 8Gb Fibre Channel |
| Host-kanaler |
6 |
| CPU |
1.1 GHz |
| Type |
RAID |
| Interfacetype |
SATA 6Gb/s / SAS 6Gb/s |
| Cache-/Bufferstørrelse (Maks.) |
2 GB (installeret) / 8 GB (maks.) |
| RAID-niveau |
RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 30, RAID 50, RAID 1E, RAID 0+1, RAID 60 |
| Type |
HDD - hot-swap |
| Kapacitet |
16 x 2 TB |
| Spindelhastighed |
7200 rpm |
| Udvidelses-båse |
16 (total) / 0 (fri) x hot-swap |
| Interface |
4 x Ethernet 1000Base-T ¦ 2 x 8Gb Fibre Channel |
| Strømenhed |
3 x intern strømforsyning - hot-plug |
| Maks. antal understøttet |
4 |
| Overskudsspænding |
Ja |
| Skema til overskudsspænding |
N+1 |
| Nødvendig spænding |
AC 120/230 V - 50/60 Hz |
| Strømforsyning |
250 Watt |
| Bredde |
44.7 cm |
| Dybde |
50.7 cm |
| Højde |
13.1 cm |
| Vægt |
31.3 kg |
| Service & Support |
Begrænset garanti - 3 år |
| Min. driftstemperatur |
5 °C |
| Maks. driftstemperatur |
40 °C |
| Fugtighedsgrad ved brug |
10 - 80 % (ikke-kondenserende) |
The Vess R2000 series' brilliant design consolidates both block and file storage onto a single platform, providing SMBs a cost-effective way to meet performance goals while simplifying administration and adding flexibility. The high availability active-active Vess R2000 series is designed for data-intensive industries, including midsize to large scale surveillance installations or cloud data centers where downtime is unacceptable and where large external storage capacity, support for on-demand expansion, long retention periods, and reliable high bandwidth throughput are a must.
