Produktdatablad |
|
Produkttype |

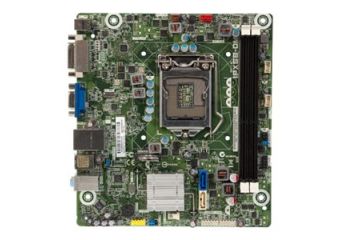

Bundkort - mini ITX |
Chipsættype |
Intel H61 Express |
Processor-socket |
LGA1155 sokkel |
Max antal processorer |
1 |
Kompatible processorer |
Celeron, Core i3, Pentium G600 serie |
Maks. størrelse |
16 GB |
Teknologi |
DDR3 |
Bus Clock |
1333 MHz, 1066 MHz |
Hastighed |
PC3-10600, PC3-8500 |
Understøttet RAM-integritetskon |
Ikke-ECC |
Registreret eller buffer |
Ikke bufferet |
Egenskaber |
Ikke bufferet, ikke registreret |
Detaljer |
PC3-8500 - 16 GB - ikke bufferet - ikke-ECC ¦ PC3-10600 - 16 GB - ikke bufferet - ikke-ECC |
Type |
6-kanal audio |
Audio codec |
Realtek ALC662 |
Netværk controller |
Atheros AR8152 |
Netværks interfaces |
Ethernet |
Ekspansionsåbninger |
1 x CPU ¦ 2 x DIMM 240-pins |
Grænseflade (lagring) |
SATA-300 -stikforbindelser: 2 |
Interface |
4 x USB 2.0 ¦ 1 x LAN ¦ 1 x audio linje-ind ¦ 1 x audio linje-ud ¦ 1 x mikrofon ¦ 1 x DVI-D ¦ 1 x VGA |
Bredde |
17 cm |
Højde |
19 cm |
Designet for |
HP P2-1310, p2-1320a, p2-1322, p2-1322a-b ¦ HP Pavilion p2-1013w, p2-1013wb, p2-1033w, p2-1102, p2-1110, p2-1113w, p2-1113wb, p2-1120, p2-1123cb, p2-1123w, p2-1140, p2-1146 |
