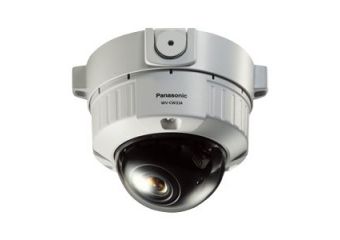

Panasonic WV-CW364SE - overvågningskamera
Produktbeskrivelse | Panasonic WV-CW364SE - overvågningskamera - dome |
Enhedstype | Overvågningskamera - fast - dome - støv / vandal / vandtæt |
Kamera monteringstype | Overflade montering, flush-montering, til loftmontering |
Dimensioner (B x D x H) | 16.4 cm x 16.4 cm x 14.6 cm |
Vægt | 1.05 kg |
Kamera | Farve - Dag/nat - 540 TVL - PAL |
Optisk zoom | 3.6 x |
Billedsensortype | CCD - 1/3" |
Minimumbelysning | 0.6 lux - farve - F1.3 ¦ 0.05 lux - S/H - F1.3 |
Brændviddekontrol | Forskellige brændvidder |
Brændvidde | 2.8 mm - 10 mm |
Fokusindstilling | Manuel (mindsteafstand 1.2 m) |
Objektiv Iris | F/1.3-3.1 - automatisk irisblænder |
Interface | Kompositvideo |
Spænding | DC 12 V / AC 24 V |
Egenskaber | Baggrundslyskompensering, IR-filter, Adaptive Black Stretch (ABS), auto sporing hvid, auto-kontroltilegnelse, auto-hvidbalance |
Miljømæssige parametre (operativ) | -10 °C - 50 °C; 0 - 90% (ikke-kondenserende) relativ luftfugtighed |
Produktdatablad |
|
Enhedstype | Overvågningskamera |
Formfaktor | Dome |
Kamera monteringstype | Overflade montering, flush-montering, til loftmontering |
Bredde | 16.4 cm |
Dybde | 16.4 cm |
Højde | 14.6 cm |
Vægt | 1.05 kg |
Type | Farve - Dag/nat - fast - støv / vandal / vandtæt |
Videoformat | PAL |
Horisontal opløsning (TV-linier) | 540 |
Minimumbelysning | 0.6 lux - farve - F1.3 ¦ 0.05 lux - S/H - F1.3 |
Egenskaber | Baggrundslyskompensering, IR-filter, Adaptive Black Stretch (ABS), auto sporing hvid, auto-kontroltilegnelse, auto-hvidbalance |
Type | CCD 1/3" |
Effektive pixler | 752 x 582 |
Type | Forskellige brændvidder |
Optisk zoom | 3.6 x |
Brændvidde | 2.8 mm - 10 mm |
Objektiv Iris | F/1.3-3.1 automatisk irisblænder |
Fokusindstilling | Manuel |
Min. fokusafstand | 1.2 m |
Vandret synsfelt (grader) | 27.39 - 100.5 |
Lodret synsfelt (grader) | 20.45 - 73.51 |
Video | Kompositvideo |
Interfacer | 1 x video - komposit videoudgang - BNC ¦ 1 x video - komposit videoudgang - RCA |
Overensstemmelsesstandarder | EN55024, IEC 60529 IP66, EN55022 Class B, EN 60065, IEC 60068-2-75, GOST-R 51558 |
Strømkrav | DC 12 V / AC 24 V |
Min. driftstemperatur | -10 °C |
Maks. driftstemperatur | 50 °C |
Relativ luftfugtighed (operativ) | 0 - 90% (ikke-kondenserende) |
- High sensitivity with true day/night function
- ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area
- Vandal resistant mechanism for high reliability
- IP66 rated water and dust resistant
- Various adjustment features including BLC (Back Light Compensation), ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
- 2 white balance modes are selectable with dip switch: ATW (Auto Tracking White Balance)/AWC (Automatic White Balance Control)
- Internal/multiplexed vertical drive (VD2) synchronization
- Monitor output for easier lens adjustment upon installation
- 3-way hinge (horizontal, vertical and swivel rotation) for easy installation
