Produktbeskrivelse
|

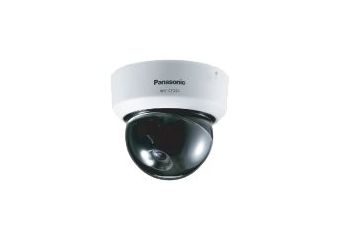

Panasonic WV-CF354E - overvågningskamera - dome
|
Enhedstype
|
Overvågningskamera - fast - dome
|
Dimensioner (B x D x H)
|
10.8 cm x 10.8 cm x 9.4 cm
|
Vægt
|
320 g
|
Farve
|
Sejlhvid
|
Kamera
|
Farve - Dag/nat - 650 TVL - PAL
|
Optisk zoom
|
3.6 x
|
Bevægelsesdetektion
|
Ja
|
Billedsensortype
|
CCD - 1/3"
|
Minimumbelysning
|
0.08 lux - farve - SENS UP fra (AGC høj) ¦ 0.05 lux - S/H - SENS UP fra (AGC høj)
|
Brændviddekontrol
|
Forskellige brændvidder
|
Brændvidde
|
2.8 mm - 10 mm
|
Fokusindstilling
|
(mindsteafstand 30 cm)
|
Objektiv Iris
|
F/1.3-3.0 - automatisk irisblænder
|
Interface
|
Kompositvideo
|
Spænding
|
DC 12 V / AC 24 V
|
Egenskaber
|
Baggrundslyskompensering, digitalstøjreduktion, automatisk elektronisk lukker, Auto Back Focus (ABF), Adaptive Black Stretch (ABS), auto sporing hvid, 2D Noise Reduction Technology, 3D Noise Reduction teknologi, Elektronisk lys kontrol (ELK), Privacy Mask Function, Auto Light Control (ALC), Auto Image Stabilizer, On Screen Display, Video Motion Detection Technology, Lens Distortion Compensation (LDC), auto-kontroltilegnelse, auto-hvidbalance
|
Miljømæssige parametre (operativ)
|
-10 °C - 50 °C; 0 - 90% (ikke-kondenserende) relativ luftfugtighed
|
Produktdatablad |
|
Enhedstype |
Overvågningskamera |
Formfaktor |
Dome |
Bredde |
10.8 cm |
Dybde |
10.8 cm |
Højde |
9.4 cm |
Vægt |
320 g |
Type |
Farve - Dag/nat - fast |
Videoformat |
PAL |
Horisontal opløsning (TV-linier) |
650 |
Bevægelsesdetektion |
Ja |
Digital zoom |
2 |
Belysningsområde |
1/50 sek - 1/120000 sek |
Minimumbelysning |
0.08 lux - farve - SENS UP fra (AGC høj) ¦ 0.05 lux - S/H - SENS UP fra (AGC høj) |
Egenskaber |
Baggrundslyskompensering, digitalstøjreduktion, automatisk elektronisk lukker, Auto Back Focus (ABF), Adaptive Black Stretch (ABS), auto sporing hvid, 2D Noise Reduction Technology, 3D Noise Reduction teknologi, Elektronisk lys kontrol (ELK), Privacy Mask Function, Auto Light Control (ALC), Auto Image Stabilizer, On Screen Display, Video Motion Detection Technology, Lens Distortion Compensation (LDC), auto-kontroltilegnelse, auto-hvidbalance |
Type |
CCD 1/3" |
Effektive pixler |
976 x 582 |
Type |
Forskellige brændvidder |
Optisk zoom |
3.6 x |
Brændvidde |
2.8 mm - 10 mm |
Objektiv Iris |
F/1.3-3.0 automatisk irisblænder |
Min. fokusafstand |
30 cm |
Vandret synsfelt (grader) |
27.8 - 100.3 |
Lodret synsfelt (grader) |
20.9 - 73.4 |
Video |
Kompositvideo |
Interfacer |
1 x video - komposit videoudgang |
Overensstemmelsesstandarder |
EN55024, EN55022 Class B, GOST-R 51558 |
Farve |
Sejlhvid |
Strømkrav |
DC 12 V / AC 24 V - 180 mA |
Min. driftstemperatur |
-10 °C |
Maks. driftstemperatur |
50 °C |
Relativ luftfugtighed (operativ) |
0 - 90% (ikke-kondenserende) |
The WV-CF354 series color surveillance camera includes Digital Signal Processor (DSP), providing improved image quality in a cost-effective unit. ABF (Auto Back Focus) ensures easy installation. Utilizing the revolutionary Adaptive Black Stretch technology, the DSP uses image processing to automatically detect dark areas inside an image, applying the most suitable gamma correction curve for darker areas. This image processing algorithm transforms shadows and dark areas into natural and crisp images in real time like never before.
