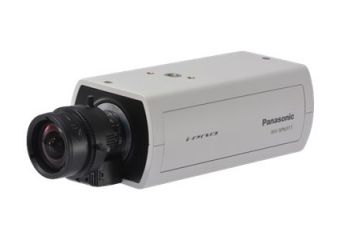

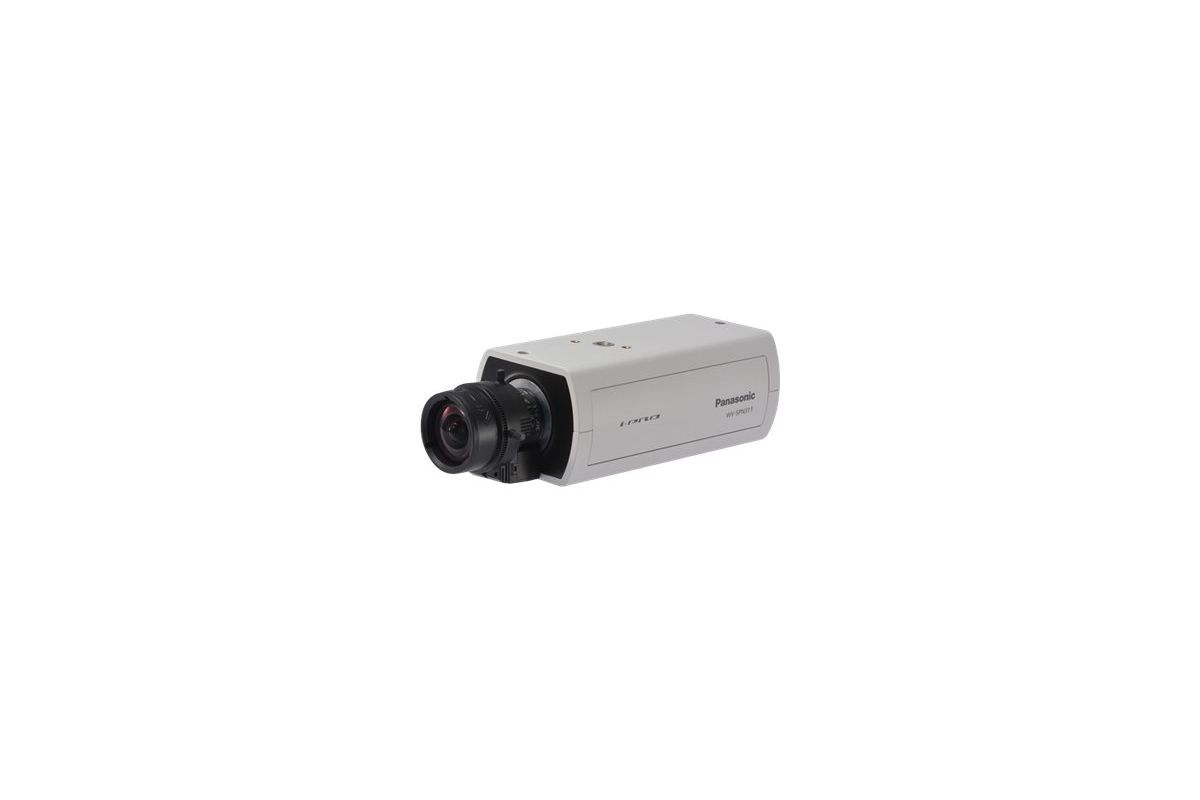

Panasonic i-Pro Smart HD WV-SPN311 - netværksovervågningskamera (intet objektiv)
Produktbeskrivelse | Panasonic i-Pro Smart HD WV-SPN311 - netværksovervågningskamera (intet objektiv) |
Enhedstype | Netværksovervågningskamera (intet objektiv) - fast |
Audio | Ja: tovejs-audiofunktion |
Dimensioner (B x D x H) | 7.5 cm x 14.35 cm x 5.7 cm |
Vægt | 400 g |
Farve | Sejlhvid |
Connectivity teknologi | Fortrådet |
Kamera | Farve - Dag/nat - NTSC, PAL |
Maksimum opløsning | 1280 x 960 |
Billedhastighed (maks.) | 60 frames pr. sekund |
Bevægelsesdetektion | Ja |
Video Modes | 720p, 720/60p |
Billedsensortype | MOS - 1/3" - 1.3 MP |
Minimumbelysning | 0.01 lux - farve - F1.4 - lukker 1/30 sek / AGC høj ¦ 0.0003 lux - S/H - F1.4 - lukker 1/30 sek / AGC høj ¦ 0.0007 lux - farve - F1.4 - lukker 16/30 sek / AGC High ¦ 0.0002 lux - S/H - F1.4 - lukker 16/30 sek / AGC High |
Objektivmontering | CS-montering |
Fokusindstilling | Automatisk |
Interface | Kompositvideo, Ethernet 10Base-T/100Base-TX |
Spænding | DC 12 V / PoE |
Egenskaber | Progressiv scanning, Auto Back Focus (ABF), Adaptive Black Stretch (ABS), Wide Dynamic Range (WDR), ONVIF support, 3D Noise Reduction teknologi, Elektronisk lys kontrol (ELK), infrarød skære filter, UniPhier LSI platform, Video Motion Detector (VMD), Face Super Dynamic-teknologi, Highlight Compensation (HLC), Variable Image Quality on Specified area (VIQS), Multi-proces støjreduktion, Automatic Tracing White (ATW), meddelelsesbillede til e-mail, prioriterings-strømstyring, notifikationsbillede til FTP, indbygget FTP-klientfunktion, Privacy Zone, tågekompensation, sandstormkompensation, Enhanced Super Dynamic, Super Chroma Compensation, beskæringsfunktion, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto-kontroltilegnelse, auto-hvidbalance |
Producentgaranti | 3 års garanti |
Miljømæssige parametre (operativ) | -10 °C - 50 °C; 20 - 90 % (ikke-kondenserende) relativ luftfugtighed |
Produktdatablad |
|
Enhedstype | Netværksovervågningskamera (intet objektiv) |
Lydsupport | Ja: tovejs-audiofunktion |
Connectivity teknologi | Fortrådet |
Bredde | 7.5 cm |
Dybde | 14.35 cm |
Højde | 5.7 cm |
Vægt | 400 g |
Type | Farve - Dag/nat - fast |
Videoformat | NTSC, PAL |
Digital videoformat | H.264 |
Max digital video opløsning | 1280 x 960 |
Bevægelsesdetektion | Ja |
Video Modes | 720p, 720/60p |
Digital zoom | 4 |
Belysningsområde | 1/30 sek - 1/10000 sek |
Minimumbelysning | 0.01 lux - farve - F1.4 - lukker 1/30 sek / AGC høj ¦ 0.0003 lux - S/H - F1.4 - lukker 1/30 sek / AGC høj ¦ 0.0007 lux - farve - F1.4 - lukker 16/30 sek / AGC High ¦ 0.0002 lux - S/H - F1.4 - lukker 16/30 sek / AGC High |
Videooptagelse | 1280 x 720 @ 60 fps ¦ 640 x 360 @ 60 fps ¦ 320 x 180 @ 60 fps ¦ 160 x 90 @ 60 fps ¦ 1280 x 960 @ 30 fps ¦ 800 x 600 @ 30 fps ¦ 640 x 480 @ 30 fps ¦ 400 x 300 @ 30 fps ¦ 320 x 240 @ 30 fps ¦ 160 x 120 @ 30 fps |
Understøttede filformater | JPEG |
Opløsning ved optagelse af stillbillede | 1280 x 720, 640 x 480, 1280 x 960, 320 x 240, 160 x 120, 800 x 600, 400 x 300, 640 x 360, 320 x 180, 160 x 90 |
Egenskaber | Progressiv scanning, Auto Back Focus (ABF), Adaptive Black Stretch (ABS), Wide Dynamic Range (WDR), ONVIF support, 3D Noise Reduction teknologi, Elektronisk lys kontrol (ELK), infrarød skære filter, UniPhier LSI platform, Video Motion Detector (VMD), Face Super Dynamic-teknologi, Highlight Compensation (HLC), Variable Image Quality on Specified area (VIQS), Multi-proces støjreduktion, Automatic Tracing White (ATW), meddelelsesbillede til e-mail, prioriterings-strømstyring, notifikationsbillede til FTP, indbygget FTP-klientfunktion, Privacy Zone, tågekompensation, sandstormkompensation, Enhanced Super Dynamic, Super Chroma Compensation, beskæringsfunktion, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto-kontroltilegnelse, auto-hvidbalance |
Type | 1.3 MP MOS 1/3" |
Type | CS-montering |
Fokusindstilling | Automatisk |
Video | Kompositvideo |
Netværksgrænseflade | Ethernet 10Base-T/100Base-TX |
Netværksprotokoller | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, IGMP, SSL, MLD |
Antal alarmindgange | 3 |
Antal alarmudgange | 1 |
Porte | Kompositvideo - RCA ¦ LAN/strøm - RJ-45 ¦ Audio linje-ind/mikrofon - 3,5 mm monostik ¦ Audio linje ud - 3,5 mm stereostik |
Understøttede hukommelseskort | SD-hukommelseskort, SDXC-hukommelseskort, SDHC hukommelseskort |
Overensstemmelsesstandarder | cUL, EN55024, ICES-003 Klasse A, FCC Part 15 A, UL60950-1, IEC60950-1, CAN/CSA-C22.2 No. 60950-1 |
Farve | Sejlhvid |
Strømkrav | DC 12 V / PoE |
Strømenhed | 6.8 Watt |
OS nødvendig | Microsoft Windows 7, Microsoft Windows Vista, Android, Windows 8, Windows 8.1, Apple iOS 4.2.1 eller senere |
Service & Support | Begrænset garanti - 3 år |
Min. driftstemperatur | -10 °C |
Maks. driftstemperatur | 50 °C |
Relativ luftfugtighed (operativ) | 20 - 90 % (ikke-kondenserende) |
- 720p HD images up to 60 fps 1
- Approximate 1/3 inches, high sensitivity MOS Sensor
- Multiple H.264 (High profile) streams (max. 4 streams) and JPEG streams ensure simultaneous real time monitoring and high resolution recording by enhanced "UniPhier ", Panasonic's proprietary System LSI platform
- Enhanced Super Dynamic 1 and ABS (Adaptive Black Stretch) technologies deliver 133 dB wider dynamic range compared to conventional cameras
- Multi process NR & 3D-DNR ensures noise reduction in various conditions.
- High sensitivity with Day & Night (IR) function (WV-SPN311 only) : 0.01 lx (Color), 0.003 lx (B/W) at F1.4
- ABF (Auto Back Focus) ensures easy installation
- VIQS (Variable Image Quality on Specified area) technology allows the designated eight areas to retain higher image quality while the excluded area will have a decreased image quality, which enables to use lower image file size and bit rate
- Cropping function enables to provide whole image and the part image simultaneously
- Up to 4 image capture areas can be specified, and it is also possible to control the sequence
- Face Super Dynamic technology ensures clear face image
- Electronic sensitivity enhancement: Auto (Up to 16/30s) / OFF
- Selectable light control modes
- Indoor scene (50 Hz/60 Hz)
- 2x, 4x digital zoom controlled by browser
- VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size
- Privacy Zone can mask up to 8 private areas, such as house windows and entrances/exits
- Camera title display : up to 20 alphanumeric characters on the browser
- Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions such as SDXC/SDHC/SD memory recording, FTP image transfer, E-mail notification, Indication on browser, Alarm terminal output, and Panasonic alarm protocol output
- Full duplex bi-directional audio allows interactive communication between camera site and monitoring site
- JPEG Image compression ratio can be changed by alarm so that higher quality image can be provided
- Prioritized stream control : one of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate
- Face detection function detects the position of human face and the information is sent by XML or video stream. (Extension Software)
- Can be added new intelligent extension software in addition to built-in VMD (Video Motion Detection), alarm function
- Fog compensation function equipped as standard
- Super Chroma Compensation function realizes a better color reproducibility even in low illumination
- H.264 max. bit rate/client and Total bit rate control allows flexible network traffic management
- Internet mode : H.264 images can be transmitted over HTTP protocol
- IPv4/IPv6 protocol supported
- Supports SSL, DDNS (viewnetcam, RFC2136)
- Still images (JPEG) can be viewed on mobile phones via Internet
- HLC (High Light Compensation) : if a bright light source such as car headlights points in the direction of a camera, the camera corrects for strong lights and their surroundings to provide clear images of the areas.
- Onvif compliant model
