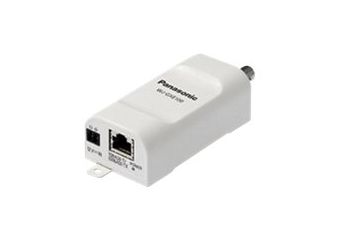

Panasonic i-Pro Smart HD WJ-GXE100E - videoserver - 1 kanaler
Produktbeskrivelse | Panasonic i-Pro Smart HD WJ-GXE100E - videoserver - 1 kanaler |
Enhedstype | Videoserver - 1 kanaler |
Komprimerings Format | JPEG, H.264 |
TV System | PAL |
Billed Opløsning | 320x240, 640x480, 640x360, 720x576, 320x180 |
Spænding | 12 V / PoE |
Dimensioner (B x D x H) | 4.5 cm x 8.8 cm x 2.95 cm |
Vægt | 110 g |
Produktdatablad |
|
Enhedstype | Videoserver |
Video Kanaler | 1 |
TV System | PAL |
Billed Opløsning | 320x240, 640x480, 640x360, 720x576, 320x180 |
Komprimerings Format | JPEG, H.264 |
Inkluderet Software (Y) | Drivers & Utilities |
Overensstemmelsesstandarder | EN55024, EN55022 Class B |
Farve | Sejlhvid |
Ramme Rate | 25 fps |
Funktioner | Video bevægelsessensor, Pan/Tilt/Zoom support, bevægelses adaptiv interlace/progressiv konvertering, ONVIF-kompatibel |
DDNS Support | Ja |
Netværks Grænseflade | Ethernet 10Base-T/100Base-TX |
Understøttede Protokoller | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, RTCP, IGMP, MLD |
Egenskaber | Power over Ethernet (PoE), e-mail meddelelse |
Browser | Internet Explorer 6.0 SP3 eller senere |
Video Input Porte | BNC x 1 |
Video Input Signal Niveau | 1.0Vp-p 75 Ohm |
Kamera Kontrol Grænseflade (PTZ) | RS-485 |
Netværk Port | 10/100Base-T |
Spænding | 12 V / PoE |
Bredde | 4.5 cm |
Dybde | 8.8 cm |
Højde | 2.95 cm |
Vægt | 110 g |
Min. driftstemperatur | -10 °C |
Maks. driftstemperatur | 50 °C |
Fugtighedsgrad ved brug | 0 - 90% (ikke-kondenserende) |
- Full frame H.264 transmission
- H.264 and JPEG triple encoding: a total of 3 outputs, comprising of 2 H.264 outputs and 1 JPEG output, can be provided
- Motion adaptive interlaces/progressive conversion allows every frame to be clear even when the subject is moving
- Open command conversion table for RS485 ensures the control of various manufacture's PTZ camera
- Camera title display: up to 20 alphanumeric characters embedded in the image
- Small size, and can be installed into the outdoor housing with a camera
- VMD (Video Motion Detector) with 4 programmable detection areas
- Internet mode: H.264 images can be transmitted by over HTTP protocol
- IPv4/IPv6 protocol supported
