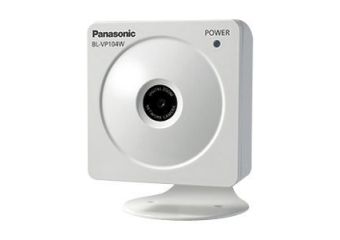

Panasonic BL-VP104WE - netværksovervågningskamera
Produktbeskrivelse | Panasonic BL-VP104WE - netværksovervågningskamera |
Enhedstype | Netværksovervågningskamera - fast |
Dimensioner (B x D x H) | 7 cm x 2.54 cm x 7 cm |
Vægt | 80 g |
Farve | Hvid |
Connectivity teknologi | Fortrådet, trådløs |
Kamera | Farve - Dag/nat |
Maksimum opløsning | 1280 x 720 |
Billedhastighed (maks.) | 30 frames pr. sekund |
Bevægelsesdetektion | Ja |
Billedsensortype | CMOS - 1/4" - 1 MP |
Minimumbelysning | 0.9 lux - farve - F2.8 - lukker 1/30 sek / AGC høj ¦ 0.06 lux - farve - F2.8 - lukker 16/30 sek / AGC High ¦ 0.6 lux - S/H - F2.8 - lukker 1/30 sek / AGC høj ¦ 0.04 lux - S/H - F2.8 - lukker 16/30 sek / AGC High |
Brændviddekontrol | Fast brændvidde |
Brændvidde | 3.6 mm |
Fokusindstilling | (mindsteafstand 40 cm) |
Objektiv Iris | F/2.8 |
Interface | Ethernet 10Base-T/100Base-TX, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Spænding | DC 6.5 V |
Egenskaber | Digitalstøjreduktion, progressiv scanning, e-mail advarsler, Adaptive Black Stretch (ABS), ONVIF support, 3D Noise Reduction teknologi, ansigtsregistrering, Elektronisk lys kontrol (ELK), indbygget antenne, Privacy Mask Function, Cell Phone Monitoring, UniPhier LSI platform, Wi-Fi Protected Setup (WPS), Video Motion Detection Technology, Automatic Tracing White (ATW), prioriterings-strømstyring, auto-kontroltilegnelse, auto-hvidbalance |
Miljømæssige parametre (operativ) | 0 °C - 40 °C; 0 - 90% (ikke-kondenserende) relativ luftfugtighed |
Produktdatablad |
|
Enhedstype | Netværksovervågningskamera |
Connectivity teknologi | Fortrådet, trådløs |
Bredde | 7 cm |
Dybde | 2.54 cm |
Højde | 7 cm |
Vægt | 80 g |
Type | Farve - Dag/nat - fast |
Digital videoformat | H.264 |
Max digital video opløsning | 1280 x 720 |
Bevægelsesdetektion | Ja |
Digital zoom | 6 |
Belysningsområde | 1/30 sek - 1/10000 sek |
Minimumbelysning | 0.9 lux - farve - F2.8 - lukker 1/30 sek / AGC høj ¦ 0.06 lux - farve - F2.8 - lukker 16/30 sek / AGC High ¦ 0.6 lux - S/H - F2.8 - lukker 1/30 sek / AGC høj ¦ 0.04 lux - S/H - F2.8 - lukker 16/30 sek / AGC High |
Videooptagelse | 1280 x 720 @ 30 fps ¦ 640 x 360 @ 30 fps ¦ 320 x 180 @ 30 fps ¦ 320 x 240 @ 30 fps ¦ 640 x 480 @ 30 fps ¦ 800 x 600 @ 30 fps |
Understøttede filformater | JPEG |
Opløsning ved optagelse af stillbillede | 1280 x 720, 640 x 480, 320 x 240, 800 x 600, 640 x 360, 320 x 180 |
Egenskaber | Digitalstøjreduktion, progressiv scanning, e-mail advarsler, Adaptive Black Stretch (ABS), ONVIF support, 3D Noise Reduction teknologi, ansigtsregistrering, Elektronisk lys kontrol (ELK), indbygget antenne, Privacy Mask Function, Cell Phone Monitoring, UniPhier LSI platform, Wi-Fi Protected Setup (WPS), Video Motion Detection Technology, Automatic Tracing White (ATW), prioriterings-strømstyring, auto-kontroltilegnelse, auto-hvidbalance |
Type | 1 MP CMOS 1/4" |
Type | Fast brændvidde |
Brændvidde | 3.6 mm |
Objektiv Iris | F/2.8 |
Min. fokusafstand | 40 cm |
Vandret synsfelt (grader) | 57 |
Lodret synsfelt (grader) | 34 |
Netværksgrænseflade | Ethernet 10Base-T/100Base-TX, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Netværksprotokoller | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, IGMP, SSL, MLD |
Interfacer | 1 x netværk - Ethernet 10Base-T/100Base-TX - RJ-45 |
Udstyr inkluderet | Stativ |
Overensstemmelsesstandarder | EN55024, EN55022 Class B, IEC 60950-1 Second Edition, EN 300 328 |
Farve | Hvid |
Strømkrav | DC 6.5 V |
Strømenhed | Strømforsyningsadapter - ekstern AC 230V (50 Hz) 3.5 Watt |
OS nødvendig | Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows XP SP3 |
Min. driftstemperatur | 0 °C |
Maks. driftstemperatur | 40 °C |
Relativ luftfugtighed (operativ) | 0 - 90% (ikke-kondenserende) |
Intelligent features, advanced technology and compact housing come together in the BL-VP104 pan-tilt network camera. CMOS sensors allow for multiple H.264 and JPEG streams; progressive scan ensures clear images with less motion blur and no tearing, even with moving objects; and digital noise reduction (3D-DNR) guarantees clarity in various conditions.
In addition, browser-controlled 4x digital zoom; electronic sensitivity enhancement; full frame (up to 30 fps) transmission; face detection; and smart phone monitoring, are all additional features of this high-performing pan-tilt network device. Ensuring simultaneous, real-time monitoring and high-resolution recording in a variety of security and surveillance applications.
