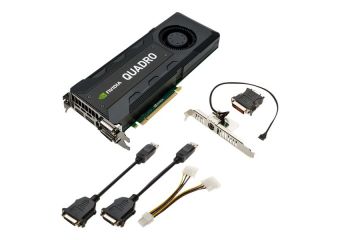

NVIDIA Quadro K5200 - NVIDIA QuadroK5200 - 8GB GDDR5 - PCI Express 3.0 x16
Produktbeskrivelse | NVIDIA Quadro K5200 - grafikkort - Quadro K5200 - 8 GB |
Enhedstype | Grafikkort |
Bus Type | PCI Express 3.0 x16 |
Grafik engine | NVIDIA Quadro K5200 |
Hukommelse | 8 GB GDDR5 |
CUDA kerner | 2304 |
RAMDAC | 400 MHz |
Hukommelses interface | 256-bit |
Maksimum opløsning | 4096 x 2160 |
Max Opløsnings Detaljer | DVI: 2560 x 1600 ved 60 Hz / DisplayPort: 4096 x 2160 ved 60 Hz / VGA: 2048 x 1536 ved 85 Hz |
Maks. antal understøttede monitorer | 4 |
Interfacer | DVI-I (dobbelt link) ¦ DVI-D (dobbelt link) ¦ 2 x DisplayPort ¦ VGA - med adapter ¦ DVI-D (enkelt-link) - med adapter |
API-understøttet | OpenCL, DirectCompute 5.0, DirectX 11.2, OpenGL 4.5 |
Dimensioner (B x D x H) | 26.7 cm x 11.1 cm |
Miljømæssige standarder | ENERGY STAR kvalificeret |
Producentgaranti | 3 års garanti |
Produktdatablad |
|
Enhedstype | Grafikkort |
Bus Type | PCI Express 3.0 x16 |
Grafik engine | NVIDIA Quadro K5200 |
CUDA kerner | 2304 |
RAMDAC | 400 MHz |
Maksimum opløsning | 4096 x 2160 ved 60 Hz |
Max Opløsnings Detaljer | DVI: 2560 x 1600 ved 60 Hz / DisplayPort: 4096 x 2160 ved 60 Hz / VGA: 2048 x 1536 ved 85 Hz |
Maks. antal understøttede monitorer | 4 |
Interfacer | DVI-I (dobbelt link) ¦ DVI-D (dobbelt link) ¦ 2 x DisplayPort ¦ VGA - med adapter ¦ DVI-D (enkelt-link) - med adapter |
API-understøttet | OpenCL, DirectCompute 5.0, DirectX 11.2, OpenGL 4.5 |
Egenskaber | Nvidia GeForce 3D Stereo teknologi, Nvidia SLI Multi-GPU Technology, Dual Slot Fan Cooler, NVIDIA Unified Driver Architecture (UDA), Nvidia nVIEW Multi-Display Technology, Nvidia CUDA teknologi, Nvidia GigaThread teknologi, Nvidia 3D Vision teknologi, Error Correcting Codes (ECC) Memory, Nvidia Scalable Geometry Engine, NVIDIA Parallel DataCache, NVIDIA Mosaic, Deep Color teknologi, Hardware Video Decode Acceleration, Shader Model 5.0, Nvidia 3D Vision Pro, FXAA, SMX teknologi, Dual Copy Engines, Full-Scene Anti-Aliasing (FSAA), GPU Tessellation, Large Framebuffers with Ultra-Fast Bandwidth, NVIDIA GPU Boost, Nvidia Fast Approximate Antialiasing Technology (FXAA), Multi-stream hardware H.264-koder, OpenGL Quad Buffered Stereo Support, Dynamic Parallelism, Hyper-Q, Nvidia Quadro Mosaic Technology, Quadro Sync, Nvidia GPUDirect, Bindless Textures, Nvidia Quadro Warp/Blend, Nvidia Temporal Anti-Aliasing Technology (TXAA), HDCP |
Størrelse | 8 GB |
Teknologi | GDDR5 SDRAM |
Busbredde | 256-bit |
Båndbredde | 192 GBps |
OS nødvendig | SunSoft Solaris, Linux, Microsoft Windows XP SP3, Microsoft Windows Vista / 7 / 8 / 8.1 |
Min. RAM-størrelse | 1 GB |
Min. harddiskplads | 200 MB |
Yderligere krav | DVD-ROM |
Strømforbrug ved drift | 150 Watt |
Udstyr inkluderet | Stereoconnectorbeslag |
Medfølgende ledninger | 1 x DisplayPort-DVI adapter ¦ 1 x DVI-VGA adapter |
Med software | Drivers & Utilities |
Dybde | 26.7 cm |
Højde | 11.1 cm |
ENERGY STAR-certificeret | Ja |
Service & Support | Begrænset garanti - 3 år |
The NVIDIA Quadro K5200 gives you amazing application performance and capability, making it faster and easier to accelerate 3D models, render complex scenes, and simulate large datasets. 8 GB of GDDR5 GPU memory with ultra-fast bandwidth allows you to create and render large, complex models and compute massive datasets. Plus, there's the all-new display engine that drives up to four displays natively with DisplayPort 1.2 support for ultra-high resolutions like 3840 x 2160 at 60 Hz with 30-bit color. The Quadro K5200 is also fully compatible with NVIDIA Quadro Sync, which allows you to frame-lock multiple displays together, and also supports NVIDIA's SDI input and output boards for broadcast or digital cinema production workflows.
Designed and built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media and entertainment, sciences, and energy. Professionals trust them to realize their most ambitious visions - whether its product design, visualization and simulation, or spectacular visual storytelling - and get results to market faster.
