| Produktbeskrivelse
|

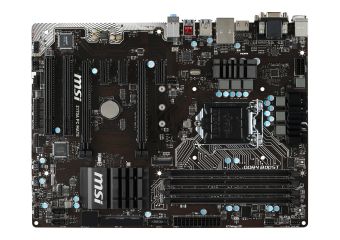

MSI Z170A PC MATE - bundkort - ATX - LGA1151 Socket - Z170
|
| Produkttype
|
Bundkort - ATX
|
| Chipsættype
|
Intel Z170
|
| Processor-socket
|
1 x LGA1151 Socket
|
| Kompatible processorer
|
Pentium, Celeron, Core i5, Core i3, Core i7
|
| Max RAM-størrelse
|
64 GB
|
| RAM understøttet
|
4 DIMM åbninger - DDR4, ikke-ECC, ikke bufferet
|
| Lagringsporte
|
6 x SATA-600, 1 x SATA Express port, 1 x M.2
|
| USB / FireWire porte
|
2 x USB 3.1 Gen 2 + 4 x USB 3.1 Gen 1 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 via samlekasser)
|
| Audio
|
HD Audio (8-kanaler)
|
| LAN
|
Gigabit Ethernet
|
Produktdatablad |
|
| Produkttype |
Bundkort - ATX |
| Chipsættype |
Intel Z170 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 |
| Maks. størrelse |
64 GB |
| Teknologi |
DDR4 |
| Bus Clock |
3200 MHz (O.C.) |
| Understøttet RAM-integritetskon |
Ikke-ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC887 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Realtek RTL8111H |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 2 x PCIe 3.0 x16 ¦ 3 x PCIe 3.0 x1 ¦ 2 x PCI |
| Grænseflade (lagring) |
SATA-600 / PCIe 3.0 -stikforbindelser: 6 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interface |
1 x LAN (Gigabit Ethernet) ¦ 1 x DVI ¦ 4 x USB 3.1 Gen 1 ¦ 1 x HDMI ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x VGA ¦ 1 x PS/2-tastatur ¦ 1 x PS/2-mus ¦ 2 x USB 3.1 Gen 2 |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 2 x USB 3.1 Gen 1 - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-egenskaber |
M-Flash |
| Hardware egenskaber |
All-Solid Capacitor motherboard Design, AMD CrossFireX-teknologisupport, MSI Military Class IV, 4K Ultra HD-klar, MSI Audio Boost, Debug LED |
| Udstyr inkluderet |
I/O-bagdække |
| Medfølgende ledninger |
2 x Seriel ATA kabel |
The PRO Series motherboards fit in any PC. Quality you can trust with top performance and clever business solutions are key aspects of these motherboards. Make your life easier and boost your business with the super stable, reliable and long-lasting PRO Series motherboards.
