| Produktbeskrivelse
|
MSI H270I GAMING PRO AC - bundkort - mini ITX - LGA1151 Socket - H270
|
| Produkttype
|
Bundkort - mini ITX
|
| Chipsættype
|
Intel H270
|
| Processor-socket
|
1 x LGA1151 Socket
|
| Kompatible processorer
|
Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 6. og 7. Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
|
| Max RAM-størrelse
|
32 GB
|
| RAM understøttet
|
2 DIMM slots - DDR4
|
| Lagringsporte
|
4 x SATA-600 (RAID), 1 x M.2
|
| USB / FireWire porte
|
4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 2 x USB 2.0 via samlekasser)
|
| Audio
|
HD Audio (8-kanaler)
|
| LAN
|
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
|
| Alternative produktnumre |
7A67-002R |
Produktdatablad |
|
| Produkttype |
Bundkort - mini ITX |
| Chipsættype |
Intel H270 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 6. og 7. Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Maks. størrelse |
32 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2400 MHz, 2133 MHz |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC887 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Realtek RTL8111H / Intel Dual Band Wireless-AC 8265 |
| Netværks interfaces |
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
| Ekspansionsåbninger |
1 x CPU ¦ 2 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 ¦ 1 x M.2 socket |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2 |
| Interface |

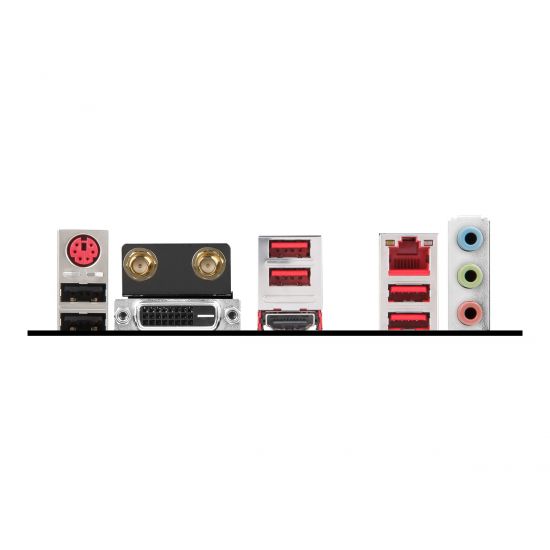

1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DVI-D ¦ 4 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2-tastatur/mus ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ind - mini-jack |
| Interne interfaces |
2 x USB 2.0 - intern stik ¦ 2 x USB 3.1 Gen 1 - intern stik ¦ 1 x seriel - intern stik ¦ 1 x audio - intern stik |
| Strømkontakter |
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor |
| BIOS-egenskaber |
MSI ClickBIOS 5 |
| Hardware egenskaber |
Intel Extreme Hukommelses Profil (XMP) support, MSI Military Class IV, MSI Audio Boost, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, MSI Mystic Light, MSI Steel Armor, Intel Optane Memory Ready |
| Med software |
MSI Command Center, RAMdisk, MSI Live Update 6, MSI Gaming Hotkey, MSI Gaming LAN Manager, MSI X-BOOST |
| Bredde |
17 cm |
| Dybde |
17 cm |
| Alternative produktnumre |
7A67-002R |
Cooling your PC is essential for reliable performance. They have made sure to include enough fan headers with full control to allow you to cool your system any way you want.
This MSI GAMING motherboard supports all the storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.
Get the most immersive sound experience when gaming. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most exciting gameplay.
