| Produktbeskrivelse
|

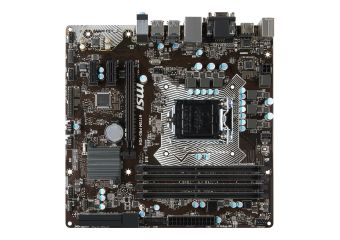

MSI H170M PRO-VDH - bundkort - micro-ATX - LGA1151 Socket - H170
|
| Produkttype
|
Bundkort - micro-ATX
|
| Chipsættype
|
Intel H170
|
| Processor-socket
|
1 x LGA1151 Socket
|
| Kompatible processorer
|
Pentium, Celeron, Core i5, Core i3, Core i7
|
| Max RAM-størrelse
|
64 GB
|
| RAM understøttet
|
4 DIMM åbninger - DDR4, ECC, ikke bufferet
|
| Lagringsporte
|
6 x SATA-600 (RAID), 1 x SATA Express port
|
| USB / FireWire porte
|
4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 via samlekasser)
|
| Audio
|
HD Audio (8-kanaler)
|
| LAN
|
Gigabit Ethernet
|
| Alternative produktnumre |
7982-011R |
Produktdatablad |
|
| Produkttype |
Bundkort - micro-ATX |
| Chipsættype |
Intel H170 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 |
| Maks. størrelse |
64 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2133 MHz |
| Understøttet RAM-integritetskon |
ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC887 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Realtek RTL8111H |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 |
| Grænseflade (lagring) |
SATA-600 / PCIe 3.0 -stikforbindelser: 6 x 7pin SATA, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID-egenskaber |
Intel Smart Response Technology |
| Interface |
1 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 2 x USB 2.0 ¦ 4 x USB 3.1 Gen 1 ¦ 1 x PS/2-mus ¦ 1 x PS/2-tastatur |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 2 x USB 3.1 Gen 1 - intern stik ¦ 1 x audio - intern stik ¦ 1 x seriel - intern stik ¦ 1 x parallel - intern stik |
| Strømkontakter |
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor |
| BIOS-egenskaber |
UEFI BIOS, MSI ClickBIOS 5 |
| Hardware egenskaber |
Intel Small Business Advantage support, MSI Military Class IV, MSI Audio Boost, Clear CMOS Button, anti-popfunktion, MSI Guard-Pro, Debug LED, MSI VGA Armor, overspændingsbeskyttelse |
| Med software |
MSI M-Cloud |
| Overensstemmelsesstandarder |
WHQL |
| Bredde |
23.5 cm |
| Dybde |
22.8 cm |
| Alternative produktnumre |
7982-011R |
The PRO Series motherboards fit in any PC. Quality you can trust with top performance and clever business solutions are key aspects of these motherboards. Make your life easier and boost your business with the super stable, reliable and long-lasting PRO Series motherboards.
