| Produktbeskrivelse
|

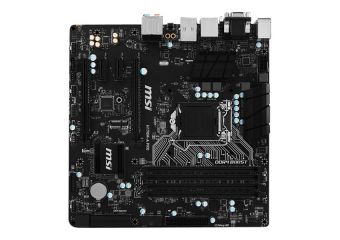

MSI H170M-A PRO - bundkort - micro-ATX - LGA1151 Socket - H170
|
| Produkttype
|
Bundkort - micro-ATX
|
| Chipsættype
|
Intel H170
|
| Processor-socket
|
1 x LGA1151 Socket
|
| Kompatible processorer
|
Pentium, Celeron, Core i5, Core i3, Core i7
|
| Max RAM-størrelse
|
64 GB
|
| RAM understøttet
|
4 DIMM åbninger - DDR4 ikke bufferet
|
| Lagringsporte
|
6 x SATA-600 (RAID), 1 x SATA Express port
|
| USB / FireWire porte
|
4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (4 x USB 3.1 Gen 1 + 2 x USB 2.0 via samlekasser)
|
| Audio
|
HD Audio (8-kanaler)
|
| LAN
|
Gigabit Ethernet
|
Produktdatablad |
|
| Produkttype |
Bundkort - micro-ATX |
| Chipsættype |
Intel H170 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 |
| Maks. størrelse |
64 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2133 MHz |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC892 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Realtek RTL8111H |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 tilstand (x2 tilstand hvis PCI Express 3.0 x1 åbning er optaget)) ¦ 2 x PCIe 3.0 x1 |
| Grænseflade (lagring) |
SATA-600 / PCIe 3.0 -stikforbindelser: 6 x 7pin SATA, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID-egenskaber |
Intel Smart Response Technology |
| Interface |
1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x PS/2-tastatur/mus ¦ 4 x USB 3.1 Gen 1 ¦ 1 x VGA ¦ 1 x TOSLINK ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack |
| Interne interfaces |
2 x USB 2.0 - intern stik ¦ 4 x USB 3.1 Gen 1 - intern stik ¦ 1 x audio - intern stik ¦ 1 x seriel - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-egenskaber |
UEFI BIOS, MSI ClickBIOS 5 |
| Hardware egenskaber |
AMD CrossFireX-teknologisupport, Intel Small Business Advantage support, MSI Military Class IV, 4K Ultra HD-klar, MSI Audio Boost, MSI Guard-Pro, Debug LED, MSI VGA Armor, overspændingsbeskyttelse |
| Med software |
MSI M-Cloud |
| Overensstemmelsesstandarder |
WHQL |
| Bredde |
24.4 cm |
| Dybde |
24.4 cm |
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability. SATA Express offers a solution in high speed storage through PCI-Express, providing more bandwidth for the latest generation SSDs up to 16 Gb/s.
Explore the greatly improved, award-winning Click BIOS 5 and use it to tune your system to maximum performance. MSI Click BIOS 5 is the next generation UEFI BIOS with optimizations for Windows 10. Control your system in two modes: EZ mode, for the most used settings and functions. Advanced mode for more detailed settings and fine-tuning options to boost your system's performance.
The Gigabit network adapter on MSI Professional motherboards offers fast, reliable and secure networking.
MSI M-Cloud is a convenient and secure way of saving personal files in the cloud. M-Cloud simplifies complicated settings with a user friendly interface and is easy to learn. Build and maintain your personal cloud with ease. M-Cloud can also turn your PC into an Access Point. You can easily share a wireless network or internet signal to other devices through just a few simple steps.
