Produktbeskrivelse
|

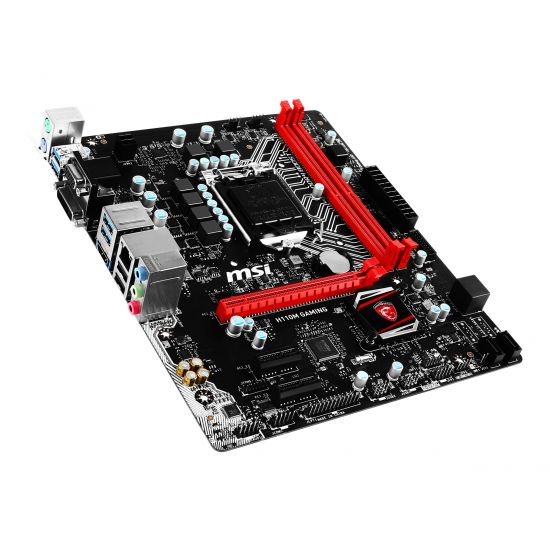

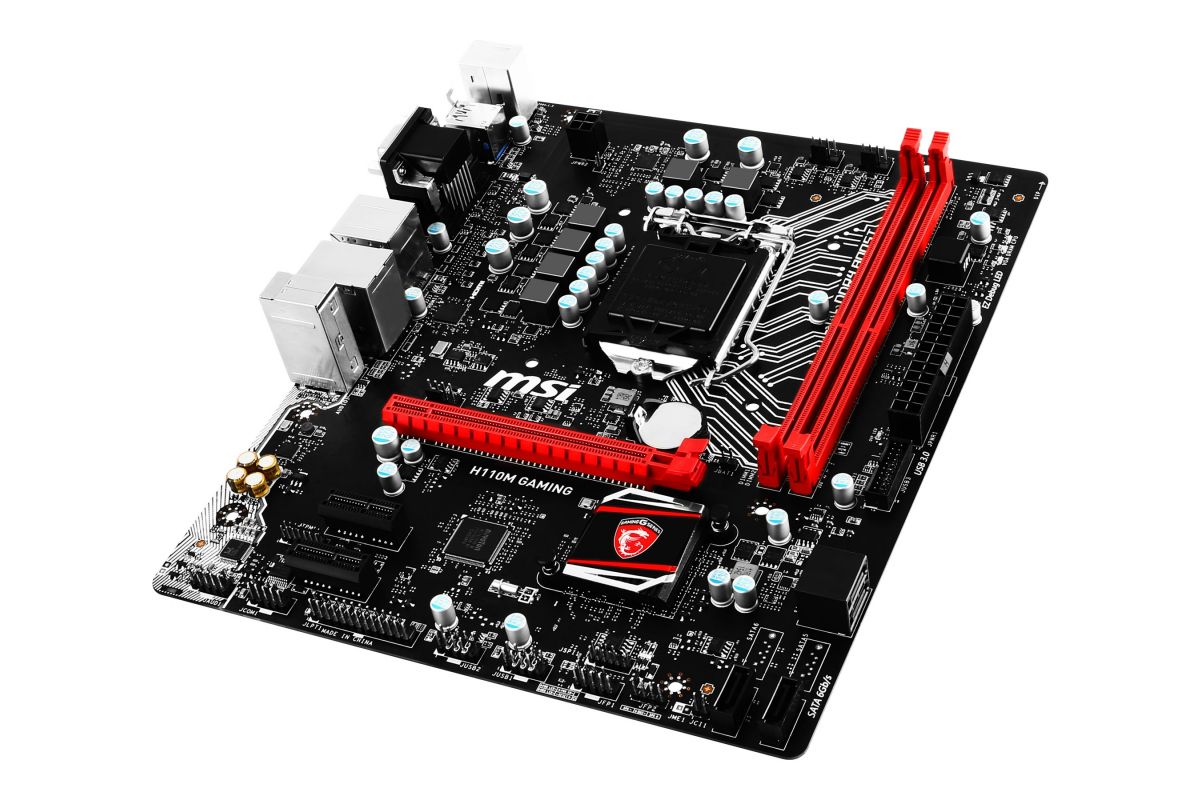

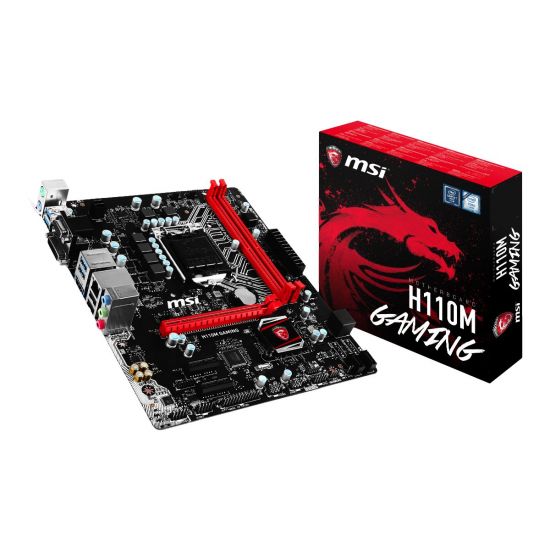

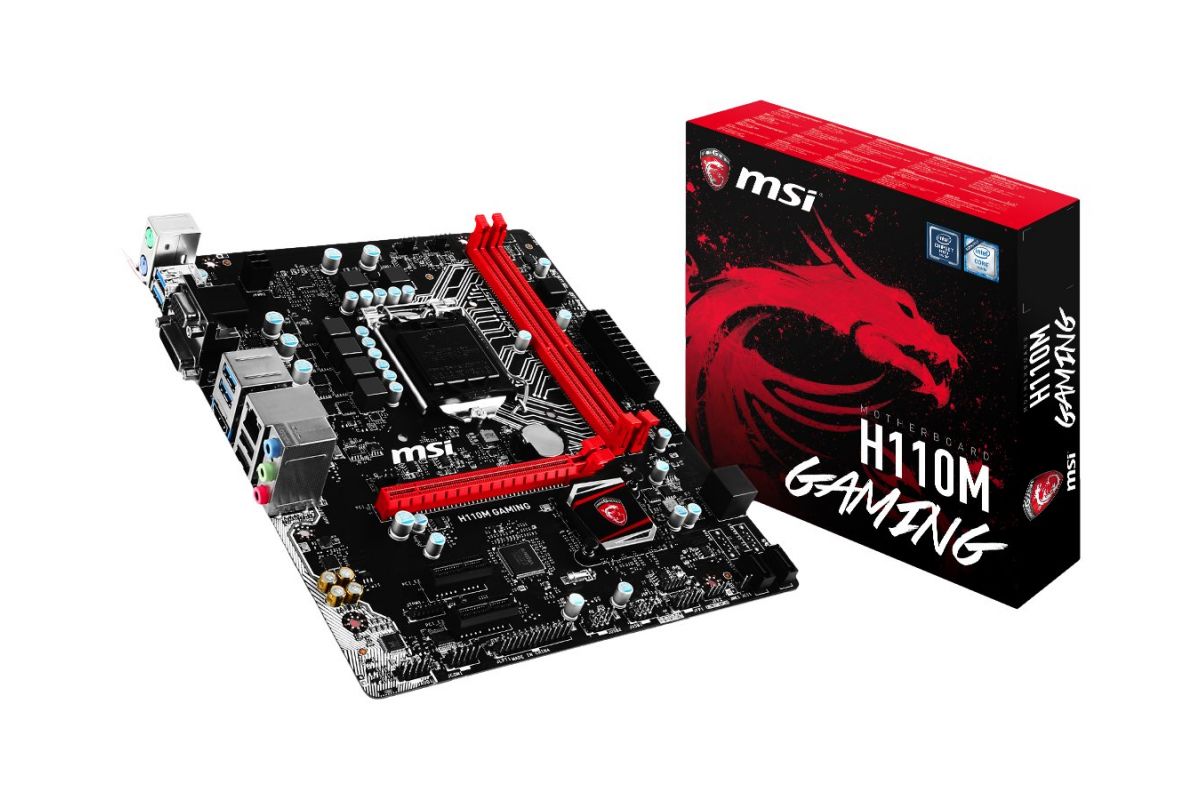

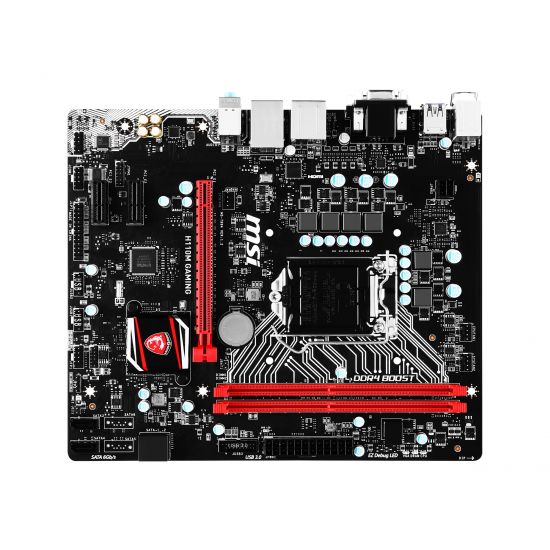

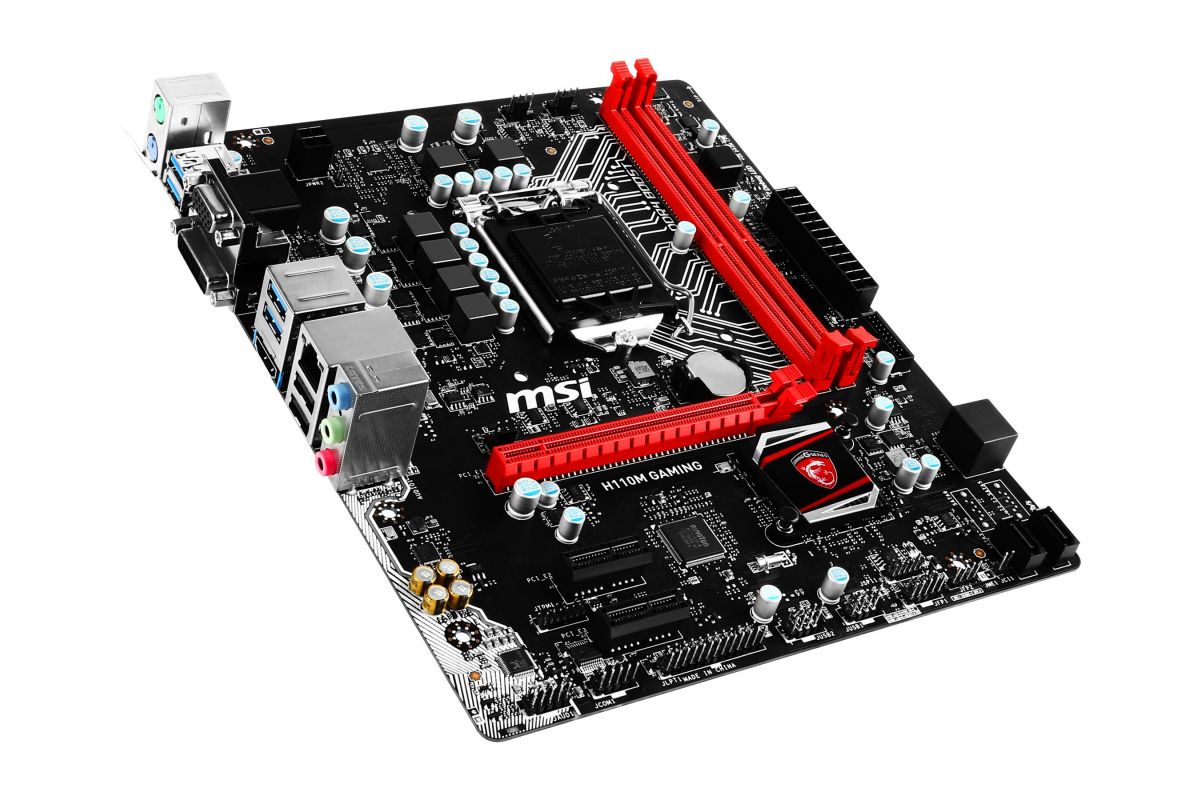

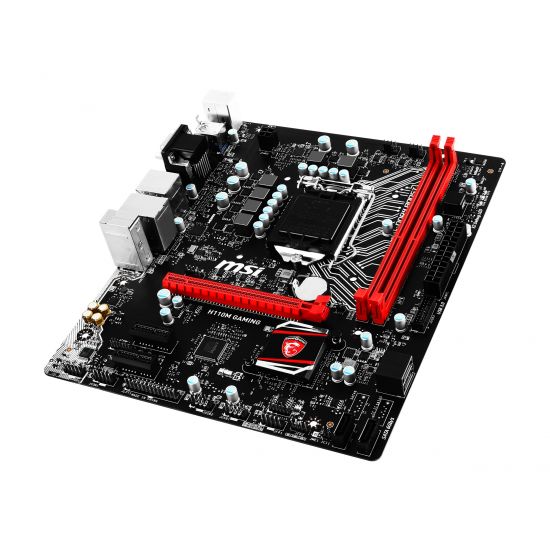

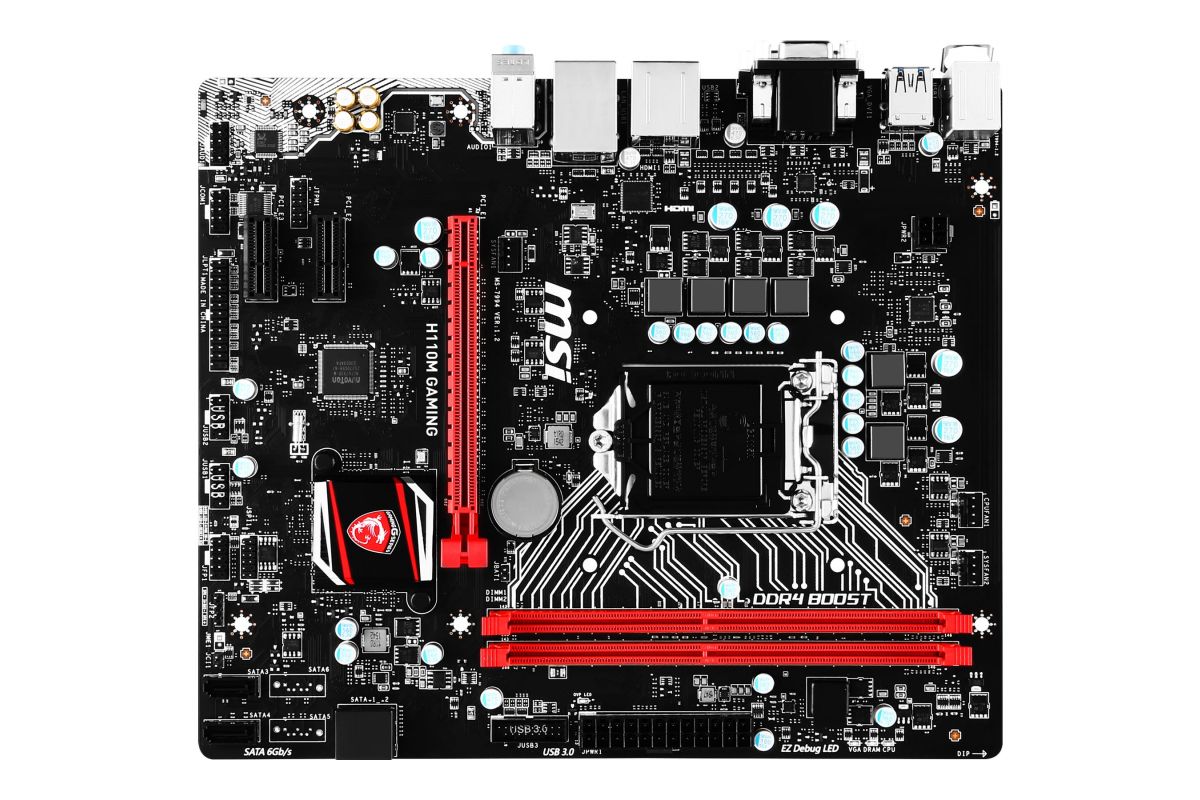

MSI H110M GAMING - bundkort - micro-ATX - LGA1151 Socket - H110
|
Produkttype
|
Bundkort - micro-ATX
|
Chipsættype
|
Intel H110 Express
|
Processor-socket
|
1 x LGA1151 Socket
|
Kompatible processorer
|
Pentium, Celeron, Core i5, Core i3, Core i7
|
Max RAM-størrelse
|
32 GB
|
RAM understøttet
|
2 DIMM slots - DDR4
|
Lagringsporte
|
4 x SATA-600
|
USB / FireWire porte
|
4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 via samlekasser)
|
Audio
|
HD Audio (8-kanaler)
|
LAN
|
Gigabit Ethernet
|
Produktdatablad |
|
Produkttype |
Bundkort - micro-ATX |
Chipsættype |
Intel H110 Express |
Processor-socket |
LGA1151 Socket |
Max antal processorer |
1 |
Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 |
Maks. størrelse |
32 GB |
Teknologi |
DDR4 |
Bus Clock |
2133 MHz |
Egenskaber |
Dobbelt kanal hukommelses arkitektur |
Type |
HD Audio (8-kanaler) |
Audio codec |
Realtek ALC887 |
Overensstemmelsesstandarder |
High Definition Audio |
Netværk controller |
Intel I219V |
Netværks interfaces |
Gigabit Ethernet |
Ekspansionsåbninger |
1 x CPU ¦ 2 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 2.0 x1 |
Grænseflade (lagring) |
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - 4 enheder |
Interface |

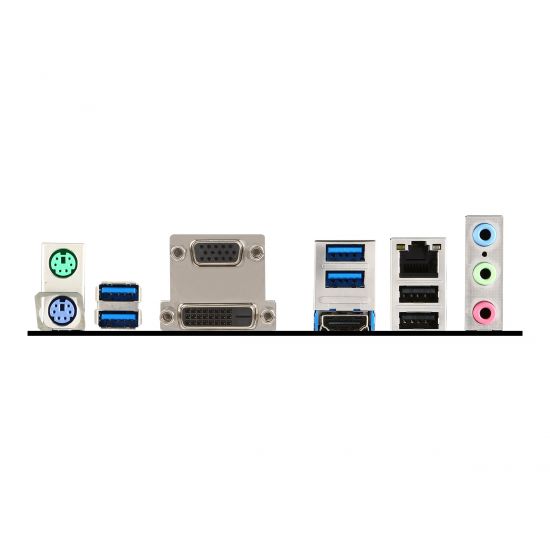

1 x DVI-D ¦ 2 x USB 2.0 ¦ 1 x VGA ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x PS/2-tastatur ¦ 4 x USB 3.1 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2-mus ¦ 1 x HDMI |
Interne interfaces |
4 x USB 2.0 - intern stik ¦ 2 x USB 3.1 Gen 1 - intern stik ¦ 1 x audio - intern stik ¦ 1 x seriel - intern stik ¦ 1 x parallel - intern stik |
Strømkontakter |
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor |
BIOS-egenskaber |
UEFI BIOS, MSI ClickBIOS 5 |
Hardware egenskaber |
MSI Military Class IV, MSI Audio Boost, anti-popfunktion, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, Game Boost, LAN Protect, Double ESD Protection, SteelSeries Certified (SSC), MSI VGA Armor, overspændingsbeskyttelse |
Med software |
RAMdisk, MSI Gaming Hotkey, MSI Gaming LAN Manager, MSI CPU-Z |
Bredde |
24.3 cm |
Dybde |
20.6 cm |
Each game demands different skills, each gamer selects, customizes and levels its own gaming character. Why stop there? MSI GAMING motherboards allow you to fully customize and personalize your gaming PC while delivering top performance for a great gaming experience.
