Produktbeskrivelse
|

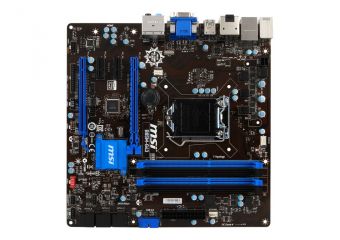

MSI B85M-G43 - bundkort - micro-ATX - LGA1150 sokkel - B85
|
Produkttype
|
Bundkort - micro-ATX
|
Chipsættype
|
Intel B85 Express
|
Processor-socket
|
1 x LGA1150 sokkel
|
Kompatible processorer
|
Pentium, Celeron, Core i5, Core i3, Core i7
|
Max RAM-størrelse
|
32 GB
|
RAM understøttet
|
4 DIMM åbninger - DDR3, ikke-ECC, ikke bufferet
|
Lagringsporte
|
4 x SATA-600, 2 x SATA-300
|
USB / FireWire porte
|
2 x USB 3.0 + 4 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 via samlekasser)
|
Maks. allokeret RAM-størrelse
|
1760 MB
|
Audio
|
HD Audio (8-kanaler)
|
LAN
|
Gigabit Ethernet
|
Microsoft Certification
|
Kompatibel med Windows 7
|
Produktdatablad |
|
Produkttype |
Bundkort - micro-ATX |
Chipsættype |
Intel B85 Express |
Processor-socket |
LGA1150 sokkel |
Max antal processorer |
1 |
Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 |
Maks. størrelse |
32 GB |
Teknologi |
DDR3 |
Bus Clock |
1600 MHz, 1333 MHz, 1066 MHz |
Understøttet RAM-integritetskon |
Ikke-ECC |
Registreret eller buffer |
Ikke bufferet |
Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
Maks. allokeret RAM-størrelse |
1760 MB |
Type |
HD Audio (8-kanaler) |
Audio codec |
Realtek ALC892 |
Netværk controller |
Realtek RTL8111G |
Netværks interfaces |
Gigabit Ethernet |
Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 240-pins ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 2.0 x16 (x4-modus) ¦ 2 x PCIe 2.0 x1 |
Grænseflade (lagring) |
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - 4 enheder ¦ SATA-300 -stikforbindelser: 2 x 7-pin Seriel ATA - 2 enheder |
Interface |
1 x PS/2-tastatur/mus ¦ 4 x USB 2.0 ¦ 2 x USB 3.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x audio linje-ud (sidesurround) - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x TOSLINK ¦ 1 x DisplayPort |
Interne interfaces |
4 x USB 2.0 - intern stik ¦ 2 x USB 3.0 - intern stik ¦ 1 x parallel - intern stik ¦ 1 x audio - intern stik ¦ 1 x seriel - intern stik |
Strømkontakter |
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor |
BIOS-egenskaber |
DMI-understøttet, M-Flash, MSI ClickBIOS 4 |
Hardware egenskaber |
Super Charger, AMD CrossFireX-teknologisupport, Intel Smart Connect Technology, MSI Military Class IV, Military Class Essentials, OC Genie 4, Intel Small Business Advantage 2.0 support, MSI Fast Boot |
Med software |
MSI Live Update 5, MSI Command Center |
Kompatibel med Windows 7 |
Udstyr og software der er "Kompatibel med Windows 7" har Microsofts forsikring i at disse produkter har bestået kompatibilitets- og pålidelighedsprøver med 32-bit og 64-bit Windows 7. |
Overensstemmelsesstandarder |
Plug and Play |
Bredde |
24.4 cm |
Dybde |
24.4 cm |
MSI's military class 4 components support you while you are questing, racing, battling and shooting your way to the top. MSI's military class 4 components deliver record-breaking stability when you need to keep cool in the heat of battle. The standard in stability built on a proven technology of high quality components.
The core of military class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit.
