| Produktbeskrivelse
|

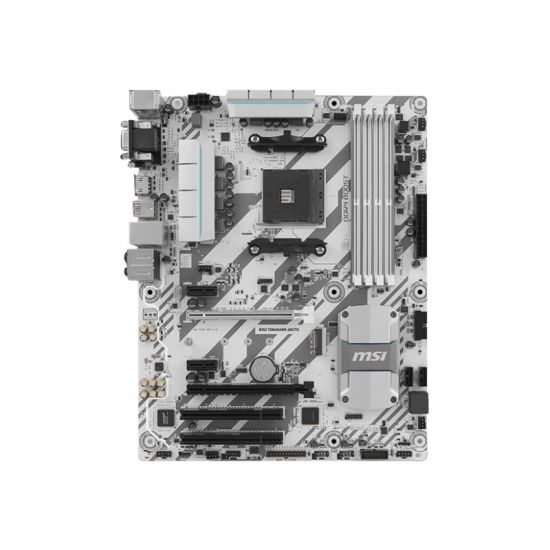

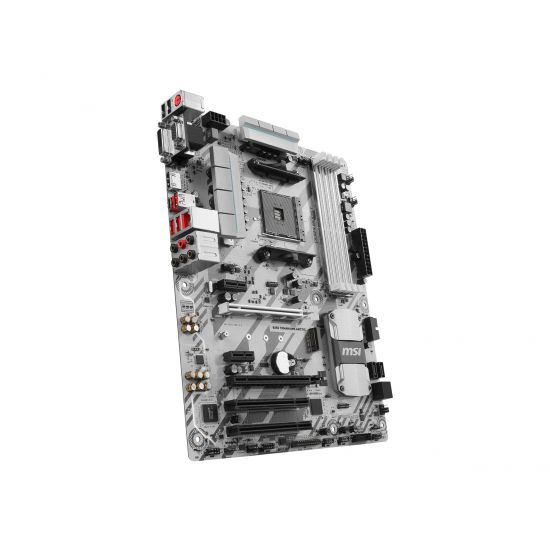

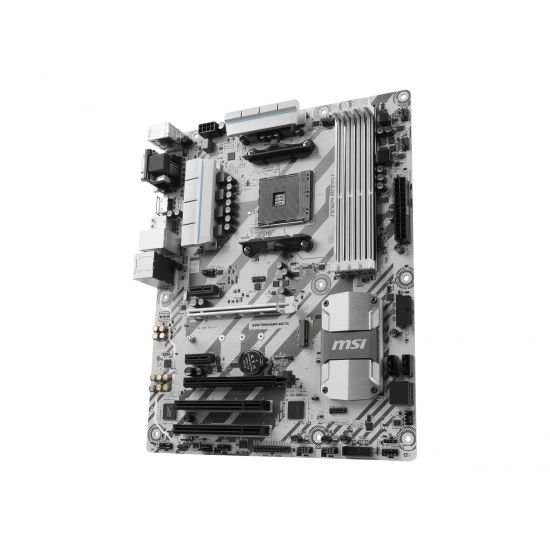

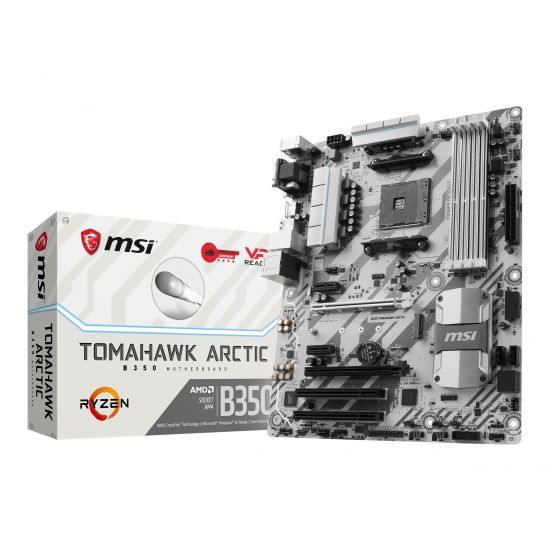

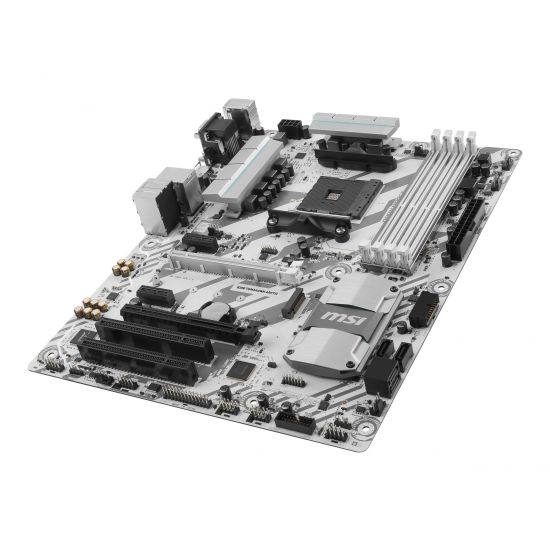

MSI B350 TOMAHAWK ARCTIC - bundkort - ATX - Socket AM4 - AMD B350 FCH
|
| Produkttype
|
Bundkort - ATX
|
| Chipsættype
|
AMD B350 FCH
|
| Processor-socket
|
1 x Socket AM4
|
| Kompatible processorer
|
Athlon, A serie, Ryzen (understøtter 7th Generation A-serie/Athlon)
|
| Max RAM-størrelse
|
64 GB
|
| RAM understøttet
|
4 DIMM åbninger - DDR4
|
| Lagringsporte
|
4 x SATA-600 (RAID), 1 x M.2
|
| USB / FireWire porte
|
1 x USB-C Gen 1 + 3 x USB 3.1 Gen 1 + 2 x USB 2.0 + (4 x USB 3.1 Gen 1 + 4 x USB 2.0 via samlekasser)
|
| Maks. allokeret RAM-størrelse
|
2048 MB
|
| Audio
|
HD Audio (8-kanaler)
|
| LAN
|
Gigabit Ethernet
|
| Producentgaranti
|
3 års garanti
|
| Alternative produktnumre |
B350 TOMAHAWK ARCTIC |
Produktdatablad |
|
| Produkttype |
Bundkort - ATX |
| Chipsættype |
AMD B350 FCH |
| Processor-socket |
Socket AM4 |
| Max antal processorer |
1 |
| Kompatible processorer |
Athlon, A serie, Ryzen (understøtter 7th Generation A-serie/Athlon) |
| Maks. størrelse |
64 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2400 MHz, 1866 MHz, 2133 MHz, 2933 MHz (O.C.), 2667 MHz (O.C.), 3200 MHz (O.C.) |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur |
| Maks. allokeret RAM-størrelse |
2048 MB |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC892 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Realtek RTL8111H |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 (x16 tilstand (med AMD Ryzen CPU); x8 tilstand (med AMD 7th Generation A-series/Athlon CPU)) ¦ 2 x PCIe 2.0 x1 ¦ 1 x PCIe 2.0 x16 (x4-modus) ¦ 2 x PCI |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2 |
| Interface |

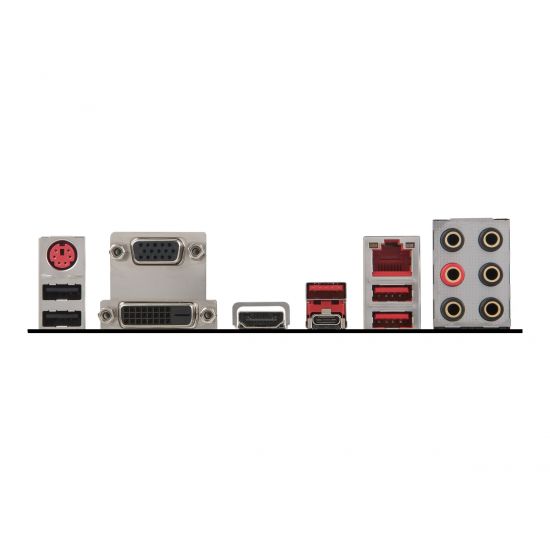

1 x LAN (Gigabit Ethernet) ¦ 1 x USB-C Gen1 ¦ 1 x PS/2-tastatur/mus ¦ 1 x audio linje-ind - mini-jack ¦ 1 x audio linje-ud - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 3 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 1 x audio linje-ud (sidesurround) - mini-jack |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 4 x USB 3.1 Gen 1 - intern stik ¦ 1 x seriel - intern stik ¦ 1 x parallel - intern stik ¦ 1 x audio - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-egenskaber |
MSI ClickBIOS 5 |
| Hardware egenskaber |
AMD CrossFireX-teknologisupport, MSI Military Class IV, MSI Audio Boost, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, MSI Mystic Light, MSI Steel Armor, Game Boost, LAN Protect, Nahimic 2 Sound Technology |
| Med software |
RAMdisk, MSI Gaming Hotkey, MSI Gaming LAN Manager, MSI X-BOOST |
| Overensstemmelsesstandarder |
WHQL |
| Bredde |
30.4 cm |
| Dybde |
24.3 cm |
| Service & Support |
Begrænset garanti - 3 år |
| Alternative produktnumre |
B350 TOMAHAWK ARCTIC |
Featuring heavy-plated heat sinks and fierce looks, MSI gaming motherboards are packed with gaming features for a refined gaming experience.
