| Produktbeskrivelse
|

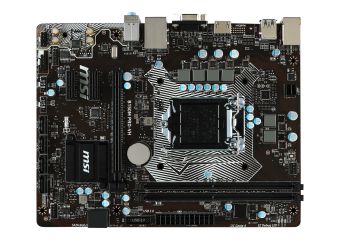

MSI B150M PRO-VH - bundkort - micro-ATX - LGA1151 Socket - B150
|
| Produkttype
|
Bundkort - micro-ATX
|
| Chipsættype
|
Intel B150
|
| Processor-socket
|
1 x LGA1151 Socket
|
| Kompatible processorer
|
Pentium, Celeron, Core i5, Core i3, Core i7
|
| Max RAM-størrelse
|
32 GB
|
| RAM understøttet
|
2 DIMM slots - DDR4, ECC, ikke bufferet
|
| Lagringsporte
|
6 x SATA-600
|
| USB / FireWire porte
|
4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 via samlekasser)
|
| Audio
|
HD Audio (8-kanaler)
|
| LAN
|
Gigabit Ethernet
|
Produktdatablad |
|
| Produkttype |
Bundkort - micro-ATX |
| Chipsættype |
Intel B150 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 |
| Maks. størrelse |
32 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2133 MHz |
| Understøttet RAM-integritetskon |
ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC887 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Realtek RTL8111H |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 2 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - 6 enheder |
| Interface |
1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x VGA ¦ 1 x HDMI ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x PS/2-tastatur/mus ¦ 4 x USB 3.1 Gen 1 |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 2 x USB 3.1 Gen 1 - intern stik ¦ 1 x audio - intern stik ¦ 1 x seriel - intern stik |
| Strømkontakter |
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor |
| BIOS-egenskaber |
MSI ClickBIOS, UEFI BIOS |
| Hardware egenskaber |
Intel Extreme Hukommelses Profil (XMP) support, MSI Military Class IV, MSI Audio Boost, Clear CMOS Button, MSI Guard-Pro, Debug LED, MSI VGA Armor, Intel Small Business Basics-support, overspændingsbeskyttelse |
| Med software |
MSI M-Cloud |
| Overensstemmelsesstandarder |
WHQL |
| Bredde |
23.5 cm |
| Dybde |
18 cm |
The PRO Series motherboards fit in any PC. Quality you can trust with top performance and clever business solutions are key aspects of these motherboards. Make your life easier and boost your business with the super stable, reliable and long-lasting PRO Series motherboards.
