| Produktbeskrivelse
|

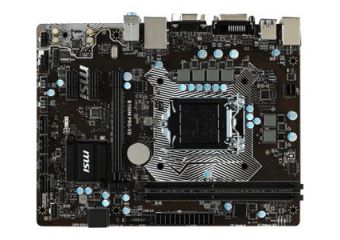

MSI B150M PRO-VD - bundkort - micro-ATX - LGA1151 Socket - B150
|
| Produkttype
|
Bundkort - micro-ATX
|
| Chipsættype
|
Intel B150
|
| Processor-socket
|
1 x LGA1151 Socket
|
| Kompatible processorer
|
Pentium, Celeron, Core i5, Core i3, Core i7
|
| Max RAM-størrelse
|
32 GB
|
| RAM understøttet
|
2 DIMM slots - DDR4, ECC, ikke bufferet
|
| Lagringsporte
|
6 x SATA-600
|
| USB / FireWire porte
|
4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 via samlekasser)
|
| Audio
|
HD Audio (8-kanaler)
|
| LAN
|
Gigabit Ethernet
|
| Alternative produktnumre |
7996-002R |
Produktdatablad |
|
| Produkttype |
Bundkort - micro-ATX |
| Chipsættype |
Intel B150 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 |
| Maks. størrelse |
32 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2133 MHz |
| Understøttet RAM-integritetskon |
ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC887 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Realtek RTL8111H |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 2 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA |
| Interface |
1 x DVI-D ¦ 2 x USB 2.0 ¦ 1 x VGA ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x PS/2-tastatur/mus ¦ 4 x USB 3.1 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 2 x USB 3.1 Gen 1 - intern stik ¦ 1 x audio - intern stik ¦ 1 x seriel - intern stik |
| Strømkontakter |
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor |
| BIOS-egenskaber |
MSI ClickBIOS, UEFI BIOS |
| Hardware egenskaber |
Intel Extreme Hukommelses Profil (XMP) support, MSI Military Class IV, MSI Audio Boost, MSI Guard-Pro, Debug LED, MSI VGA Armor, Intel Small Business Basics-support, overspændingsbeskyttelse |
| Med software |
MSI M-Cloud |
| Bredde |
23.5 cm |
| Dybde |
18 cm |
| Alternative produktnumre |
7996-002R |
The Gigabit network adapter on MSI Professional motherboards offers fast, reliable and secure networking.
Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.
With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over 10 year.
