| Produktbeskrivelse
|

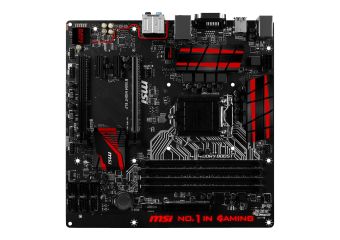

MSI B150M NIGHT ELF - bundkort - micro-ATX - LGA1151 Socket - B150
|
| Produkttype
|
Bundkort - micro-ATX
|
| Chipsættype
|
Intel B150
|
| Processor-socket
|
1 x LGA1151 Socket
|
| Kompatible processorer
|
Pentium, Celeron, Core i5, Core i3, Core i7
|
| Max RAM-størrelse
|
64 GB
|
| RAM understøttet
|
4 DIMM åbninger - DDR4, ECC, ikke bufferet
|
| Lagringsporte
|
6 x SATA-600
|
| USB / FireWire porte
|
4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 via samlekasser)
|
| Audio
|
HD Audio (8-kanaler)
|
| LAN
|
Gigabit Ethernet
|
| Alternative produktnumre |
7979-001R |
Produktdatablad |
|
| Produkttype |
Bundkort - micro-ATX |
| Chipsættype |
Intel B150 |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 |
| Maks. størrelse |
64 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2133 MHz |
| Understøttet RAM-integritetskon |
ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC1150 |
| Overensstemmelsesstandarder |
High Definition Audio |
| Netværk controller |
Intel I219V |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 4 x DIMM 288-pins ¦ 2 x PCIe 3.0 x16 (x16/x4 modus) ¦ 2 x PCIe 3.0 x1 |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - 6 enheder |
| Interface |
1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x PS/2-tastatur/mus ¦ 4 x USB 3.1 Gen 1 ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 1 x audio linje-ud (sidesurround) - mini-jack |
| Interne interfaces |
4 x USB 2.0 - intern stik ¦ 2 x USB 3.1 Gen 1 - intern stik ¦ 1 x audio - intern stik ¦ 1 x seriel - intern stik |
| Strømkontakter |
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-egenskaber |
MSI ClickBIOS 5 |
| Hardware egenskaber |
Intel Extreme Hukommelses Profil (XMP) support, AMD CrossFireX-teknologisupport, MSI Military Class IV, Clear CMOS Button, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, MSI Steel Armor, MSI Audio Boost 3, LAN Protect, SteelSeries Certified (SSC), overspændingsbeskyttelse |
| Med software |
RAMdisk, MSI Gaming Hotkey, MSI Gaming LAN Manager |
| Bredde |
24.4 cm |
| Dybde |
24.4 cm |
| Alternative produktnumre |
7979-001R |
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.
