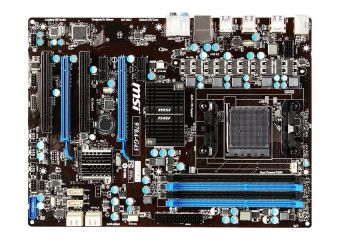

MSI 970A-G43 bundkort - ATX - Socket AM3+ - AMD 970

Producent MSI
Produkt nr. 970A-G43
Varenummer 485163
Lagerstatus:
  0 stk. København
  0 stk. Aarhus
  0 stk. Fjernlager
Forventet levering ved bestilling: 11-08-2017
Mere info
899,- DKK
Produktbeskrivelse MSI 970A-G43 - bundkort - ATX - Socket AM3+ - AMD 970
Produkttype Bundkort - ATX
Chipsættype AMD 970 / AMD SB950
Processor-socket 1 x Socket AM3+
Kompatible processorer Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Athlon II, Phenom II X4, Phenom II X6, FX
Data Bus Transfer Rate 4.8 GT/s
Max RAM-størrelse 32 GB
RAM understøttet 4 DIMM åbninger - DDR3 ikke bufferet
Lagringsporte 6 x SATA-600 (RAID)
USB / FireWire porte 2 x USB 3.0 + 6 x USB 2.0 + (1 x USB 3.0 + 3 x USB 2.0 via samlekasser)
Audio HD Audio (8-kanaler)
LAN Gigabit Ethernet
Produkttype Bundkort - ATX
Chipsættype AMD 970 / AMD SB950
Data Bus Transfer Rate 4.8 GT/s
Processor-socket Socket AM3+
Max antal processorer 1
Kompatible processorer Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Athlon II, Phenom II X4, Phenom II X6, FX
Maks. størrelse 32 GB
Teknologi DDR3
Bus Clock 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2133 MHz
Registreret eller buffer Ikke bufferet
Egenskaber Dobbelt kanal hukommelses arkitektur
Type HD Audio (8-kanaler)
Audio codec Realtek ALC887
Overensstemmelsesstandarder High Definition Audio
Netværk controller Realtek RTL8111E
Netværks interfaces Gigabit Ethernet
Ekspansionsåbninger 1 x CPU ¦ 4 x DIMM 240-pins (1.5 V) ¦ 2 x PCIe 2.0 x16 ¦ 2 x PCIe 2.0 x1 ¦ 2 x PCI (3.3 V/ 5 V)
Grænseflade (lagring) AMD SB950: SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - 6 enheder - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interface 1 x PS/2-tastatur ¦ 1 x PS/2-mus ¦ 2 x USB 3.0 ¦ 6 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x audio linje-ud (sidesurround) - mini-jack ¦ 1 x audio linje-ud (bagtil) - mini-jack ¦ 1 x audio linje-ud (centrum/subwoofer) - mini-jack
Interne interfaces 1 x audio ¦ 3 x USB 2.0 ¦ 1 x USB 3.0 ¦ 1 x seriel - intern stik
Strømkontakter 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
BIOS-egenskaber M-Flash, UEFI BIOS, MSI ClickBIOS II
Hardware egenskaber AMD Cool 'n' Quiet Technology, All-Solid Capacitor motherboard Design, audio jack detektions teknologi, MSI Active Phase Switching (APS), OC Genie II, MSI Winki 3, AMD CrossFireX-teknologisupport, MSI 3TB+ Infinity
Med software Drivers & Utilities, MSI Live Update 5
Bredde 30.5 cm
Dybde 22.5 cm

MSI Click BIOS II provides a consistent user interface both in the UEFI BIOS and in Windows, it provides the most convenient way for users to control system settings and supports touchscreen control.
Capacitors are the most important component for electronic product's power supply. The quality of the capacitors can impact the stability of the entire system and risk of product failure. Currently there are two types of capacitors, electrolytic capacitors and solid capacitors. Compared to electrolytic capacitors, solid capacitors have a longer lifespan, and provide a more stable power under high temperatures.
