Produktbeskrivelse
|

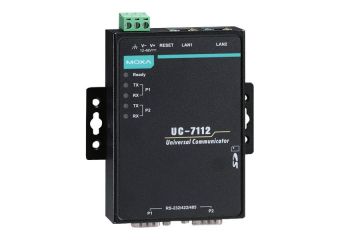

Moxa UC-7112-LX - vægmontering - ARM9 192 MHz - 16 MB - flash 8 MB
|
Type
|
PC barebone - vægmontering
|
Processor
|
1 x ARM ARM9 192 MHz
|
RAM
|
16 MB SDRAM
|
Harddisk
|
Flash 8 MB
|
Kortlæser
|
Ja
|
Netværk
|
10Mb LAN, 100Mb LAN
|
Med OS
|
uClinux
|
Dimensioner (B x D x H)
|
7.7 cm x 11.1 cm x 2.6 cm
|
Vægt
|
190 g
|
Producentgaranti
|
Begrænset garanti - 5 år
|
Produktdatablad |
|
Type |
PC barebone |
Produktmodel |
Vægmontering |
CPU |
ARM ARM9 192 MHz |
Antal CPU'er |
1 |
Maks. antal CPU'er |
1 |
Installeret størrelse |
16 MB |
Teknologi |
SDRAM |
Type |
Flash |
Kapacitet |
8 MB |
Type |
Kortlæser |
Understøttede flashhukommelseskort |
SD hukommelseskort |
Monitortype |
Ingen. |
Ethernet Ports |
2 x Fast-Ethernet |
Dataforbindelsesprotokol |
Ethernet, Fast Ethernet |
Interface |
2 x LAN - RJ-45 ¦ 2 x seriel |
Overensstemmelsesstandarder |
EN 61000-3-3, EN55024, RoHS, UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, WEEE, FCC Part 15 B Class A, China RoHS, EN 61000-3-2 Class A, EN 55022 Class A |
Med OS |
uClinux |
Service & Support |
Begrænset garanti - 5 år |
Bredde |
7.7 cm |
Dybde |
11.1 cm |
Højde |
2.6 cm |
Vægt |
190 g |
Min. driftstemperatur |
-10 °C |
Maks. driftstemperatur |
60 °C |
Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
The UC-7112 series of RISC-based communication platforms are ideal for embedded applications and come with 2 RS-232/422/485 serial ports and dual 10/100 Mbps Ethernet LAN ports to provide users with a versatile communication platform. The UC-7112 series computers use the Moxa ART ARM9 192 MHz RISC CPU. Unlike the x86 CPU, which uses a CISC design, the ARM9's RISC design architecture and modern semiconductor technology provide these computers with a powerful computing engine and communication functions, but without generating too much heat. The dual LAN ports built into the ARM9 allow the UC-71xx computers to be used as communication platforms for basic data acquisition and protocol conversion applications, and the two RS-232/422/485 serial ports allow you to connect a variety of serial devices.
