Produktbeskrivelse
|

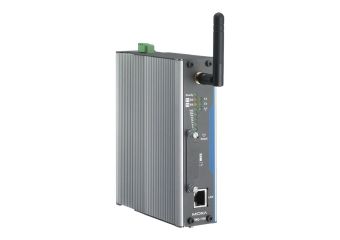

Moxa SMG-1100 - gateway
|
Enhedstype
|
Gateway
|
Formfaktor
|
Monterbar på DIN rail
|
Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet, RS-232, RS-422, RS-485, Modbus
|
Mobilprotokol
|
GPRS, EDGE
|
Mobilt net
|
GSM 850/900/1800/1900
|
Dimensioner (B x D x H)
|
4 cm x 11.9 cm x 14.4 cm
|
Vægt
|
1 kg
|
Producentgaranti
|
5 års garanti
|
Produktdatablad |
|
Enhedstype |
Gateway |
Bredde |
4 cm |
Dybde |
11.9 cm |
Højde |
14.4 cm |
Vægt |
1 kg |
Model |
Monterbar på DIN rail |
Forbindelsesteknologi |
Kabling |
Dataforbindelsesprotokol |
Ethernet, Fast Ethernet, RS-232, RS-422, RS-485, Modbus |
Netværks/overføselsprotokol |
IPSec |
Statusindikatorer |
Signalstyrke, LAN, seriel, mobiltilstand, klar |
Egenskaber |
Auto-sensing per device, til vægmontering, nulstillingsknap, 1.5 KV Magnetic Isolation, 15KV ESD Protector, Watch Dog Timer (WDT) |
Antenne |
Aftagelig eksternt |
Antal antenner |
1 |
Mobilprotokol |
GPRS, EDGE |
Mobilt net |
GSM 850/900/1800/1900 |
Interface |
2 x RS-232/422/485 - DB-9 ¦ 1 x 100Base-TX - RJ-45 |
Overensstemmelsesstandarder |
EN55024, RoHS, UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, WEEE, FCC Part 15 B Class A, China RoHS, EN 301 489-7, EN 301 489-1, EN 55022 Class A, EN 301 511 |
Service & Support |
Begrænset garanti - 5 år |
Min. driftstemperatur |
-10 °C |
Maks. driftstemperatur |
60 °C |
Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
The SMG-1100 series features two software selectable RS- 232/422/485 ports, one Ethernet port, and quad-band GPRS/EDGE 900/1800/850/1900 MHz for cellular communication. The SMG-1100 series provides a sophisticated wireless M2M solution for distributed Modbus devices. The SMG-1100 networks Modbus devices with Modbus RTU/ ASCII protocols can work well via GPRS/ EDGE or Ethernet to Modbus TCP, and each serial port can support up to 31 serial slaves to IP network. Implemented with the protocol conversion functionality, the SMG-1100 can serve both serial master and slave and the built-in IPsec function guarantees that data transmission is encrypted even in a wireless environment.
