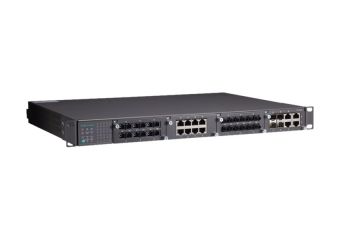

Moxa PT-7728-PTP-R-24 - switch - Administreret - monterbar på stativ
Produktbeskrivelse | Moxa PT-7728-PTP-R-24 - switch - Administreret - monterbar på stativ |
Enhedstype | Switch - Administreret |
Pakningstype | Monterbar på stativ |
Kapacitet | Aktive VLANer: 64 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ IGMP-grupper: 256 |
Routingprotokol | IGMPv2, IGMP |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
Egenskaber | Datatransport, modulærdesign, DHCP-understøttelse, understøttet af BOOTP, understøttet af RARP, trunking, VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP server, LLDP support, Link Aggregation Control Protocol (LACP), portbaseret adgangsstyring, DHCP klient, e-mail meddelelse, Management Information Base (MIB), Dynamic VLAN Support (GVRP), fastgørelse på bagpanel |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 1588v2 |
Effekt | DC 24 V |
Overskudsspænding | Valgfri |
Dimensioner (B x D x H) | 44 cm x 32.5 cm x 4.4 cm |
Vægt | 5.9 kg |
Producentgaranti | 5 års garanti |
Produktdatablad |
|
Enhedstype | Switch - Administreret |
Pakningstype | Monterbar på stativ |
Kapacitet | Aktive VLANer: 64 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ IGMP-grupper: 256 |
Routingprotokol | IGMPv2, IGMP |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
Krypterings algoritme | MODBUS |
Autentificeringsmetode | Secure Shell (SSH), RADIUS, TACACS+ |
Egenskaber | Datatransport, modulærdesign, DHCP-understøttelse, understøttet af BOOTP, understøttet af RARP, trunking, VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP server, LLDP support, Link Aggregation Control Protocol (LACP), portbaseret adgangsstyring, DHCP klient, e-mail meddelelse, Management Information Base (MIB), Dynamic VLAN Support (GVRP), fastgørelse på bagpanel |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 1588v2 |
Statusindikatorer | Ports transmissionshastighed, dupleksmodus for port, strøm, mislykket, status, RPS (Redundant Power Supply), link/aktivitet |
Interface | 1 x administration (RS-232) RJ-45 |
Ekspansionsåbninger | 4 (total) / 4 (fri) x Ekspansionsholder |
Antal installerede moduler (Max) | 0 (installeret) / 4 (maks.) |
Strømenhed | Intern strømforsyning |
Antal installeret | 1 (installeret) / 2 (maks.) |
Overskudsspænding | Valgfri |
Skema til overskudsspænding | 1+1 (med valgfrit netaggregat) |
Nødvendig spænding | DC 24 V |
Egenskaber | Power Polarity Reverse Protect, Overload Current Resetable Fuse |
Medfølgende ledninger | 1 x konsolkabel |
Rackmonteringspakke | Inkluderet |
Overensstemmelsesstandarder | EN55022 Klasse A, UL 60950-1, EN 60950-1, IEC 60529 IP30, CSA C22.2 No. 60950-1, FCC Part 15 B Class A, IEEE 1613 |
Med software | Drivers & Utilities |
Bredde | 44 cm |
Dybde | 32.5 cm |
Højde | 4.4 cm |
Vægt | 5.9 kg |
Service & Support | Begrænset garanti - 5 år |
Min. driftstemperatur | -40 °C |
Maks. driftstemperatur | 85 °C |
Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
Min. lagertemperatur | -40 °C |
Maks. Opbevaringstemperatur | 85 °C |
The PowerTrans PT-7728-PTP switches are designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-7728-PTP's redundant ring, and dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs.
Moxa's PT-7728-PTP IEC 61850-3 Fast Ethernet switches support the latest version of IEEE 1588 technology (IEEE 1588v2 PTP) to fulfill precision time synchronization requirements for protection and control applications. These Ethernet switches guarantee time-stamping accuracy within 1 μs for the IEC 61850 process layer. They can be configured for 1588 v2 Master, Boundary Clock, and Transparent Clock functionality.
The modular design of the PT-7728-PTP also makes network planning easy, and allows greater flexibility by letting you install up to 14 IEEE 1588 Fast Ethernet ports or up to 24 non-IEEE 1588 Ethernet ports and 4 Gigabit ports. Along with a choice of either front or rear wiring, these features together make the PT-7728-PTP suitable for a variety of industrial applications.
