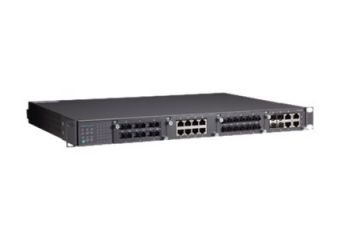

Moxa PowerTrans PT-7728-PTP-F-48 - switch - Administreret - monterbar på stativ
Produktbeskrivelse | Moxa PowerTrans PT-7728-PTP-F-48 - switch - Administreret - monterbar på stativ |
Enhedstype | Switch - Administreret |
Pakningstype | Monterbar på stativ |
Præstation | Skift af produktion: 12.8 Gbps |
Kapacitet | Aktive VLANer: 64 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ IGMP-grupper: 256 |
Routingprotokol | IGMPv2, IGMP |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
Egenskaber | Datatransport, modulærdesign, DHCP-understøttelse, understøttet af BOOTP, understøttet af RARP, trunking, VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP server, LLDP support, Link Aggregation Control Protocol (LACP), NTP server, portbaseret adgangsstyring, DHCP klient, e-mail meddelelse, Management Information Base (MIB), Dynamic VLAN Support (GVRP), EtherNet/IP-aktiveret, GARP Multicast Registration Protocol (GMRP) |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 1588v2 |
Effekt | DC 48 V |
Overskudsspænding | Valgfri |
Dimensioner (B x D x H) | 44 cm x 32.5 cm x 4.4 cm |
Vægt | 5.9 kg |
Producentgaranti | 5 års garanti |
Produktdatablad |
|
Enhedstype | Switch - Administreret |
Pakningstype | Monterbar på stativ |
Præstation | Skift af produktion: 12.8 Gbps |
Kapacitet | Aktive VLANer: 64 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ IGMP-grupper: 256 |
Routingprotokol | IGMPv2, IGMP |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
Krypterings algoritme | MODBUS |
Autentificeringsmetode | Secure Shell (SSH), RADIUS, TACACS+ |
Egenskaber | Datatransport, modulærdesign, DHCP-understøttelse, understøttet af BOOTP, understøttet af RARP, trunking, VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP server, LLDP support, Link Aggregation Control Protocol (LACP), NTP server, portbaseret adgangsstyring, DHCP klient, e-mail meddelelse, Management Information Base (MIB), Dynamic VLAN Support (GVRP), EtherNet/IP-aktiveret, GARP Multicast Registration Protocol (GMRP) |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 1588v2 |
Statusindikatorer | Ports transmissionshastighed, dupleksmodus for port, strøm, mislykket, status, RPS (Redundant Power Supply), link/aktivitet |
Interface | 1 x administration (RS-232) RJ-45 |
Ekspansionsåbninger | 4 (total) / 4 (fri) x Ekspansionsholder |
Antal installerede moduler (Max) | 0 (installeret) / 4 (maks.) |
Strømenhed | Intern strømforsyning |
Antal installeret | 1 (installeret) / 2 (maks.) |
Overskudsspænding | Valgfri |
Skema til overskudsspænding | 1+1 (med valgfrit netaggregat) |
Nødvendig spænding | DC 48 V |
Egenskaber | Power Polarity Reverse Protect, Overload Current Resetable Fuse |
Medfølgende ledninger | 1 x konsolkabel |
Rackmonteringspakke | Inkluderet |
Overensstemmelsesstandarder | EN55022 Klasse A, UL 60950-1, IEC 60529 IP30, FCC Part 15 B Class A, EN50155, EN 50121-4, NEMA TS-2, IEC 61850-3, IEEE 1613 |
Med software | Drivers & Utilities |
Bredde | 44 cm |
Dybde | 32.5 cm |
Højde | 4.4 cm |
Vægt | 5.9 kg |
Service & Support | Begrænset garanti - 5 år |
Min. driftstemperatur | -40 °C |
Maks. driftstemperatur | 85 °C |
Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
Min. lagertemperatur | -40 °C |
Maks. Opbevaringstemperatur | 85 °C |
The PowerTrans PT-7828 switches are high performance Layer 3 Ethernet switches that support Layer 3 routing functionality to facilitate the deployment of applications across networks. The PT-7828 switches are also designed to meet the strict demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN 50121-4). The PT-7828's Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling and wiring costs. The modular design of the PT-7828 makes network planning easy, and allows greater flexibility by letting you install up to 4 Gigabit ports and 24 Fast Ethernet ports.
