Moxa PowerTrans PT-510-SS-LC-HV - switch - 10 porte - Administreret
Produktbeskrivelse | Moxa PowerTrans PT-510-SS-LC-HV - switch - 10 porte - Administreret |
Enhedstype | Switch - 10 porte - Administreret |
Undertype | Fast Ethernet |
Porte | 8 x 10/100 + 2 x 100Base-FX |
Kapacitet | Aktive VLANer: 64 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ IGMP-grupper: 256 |
MAC adresse table størrelse | 8K indtastningshukommelse |
Routingprotokol | IGMPv2, IGMP |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
Egenskaber | Datatransport, auto-negotiation, understøttet af BOOTP, understøttet af RARP, trunking, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, portspejling, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, LLDP support, Link Aggregation Control Protocol (LACP), NTP server, portbaseret adgangsstyring, DHCP klient, e-mail meddelelse, Management Information Base (MIB), Dynamic VLAN Support (GVRP), NTP tidssynkronisering, 1 MB pakkebuffer, EtherNet/IP-aktiveret, GARP Multicast Registration Protocol (GMRP) |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 1588v2 |
Effekt | AC 120/230 V / DC 110/220 V |
Dimensioner (B x D x H) | 8 cm x 11 cm x 16 cm |
Vægt | 1.21 kg |
Producentgaranti | 5 års garanti |
Produktdatablad |
|
Enhedstype | Switch - 10 porte - Administreret |
Pakningstype | DIN monterbar på skinne |
Undertype | Fast Ethernet |
Porte | 8 x 10/100 + 2 x 100Base-FX |
Kapacitet | Aktive VLANer: 64 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ IGMP-grupper: 256 |
MAC adresse table størrelse | 8K indtastningshukommelse |
Routingprotokol | IGMPv2, IGMP |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
Krypterings algoritme | MODBUS |
Autentificeringsmetode | Secure Shell (SSH), RADIUS, TACACS+ |
Egenskaber | Datatransport, auto-negotiation, understøttet af BOOTP, understøttet af RARP, trunking, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, portspejling, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, LLDP support, Link Aggregation Control Protocol (LACP), NTP server, portbaseret adgangsstyring, DHCP klient, e-mail meddelelse, Management Information Base (MIB), Dynamic VLAN Support (GVRP), NTP tidssynkronisering, 1 MB pakkebuffer, EtherNet/IP-aktiveret, GARP Multicast Registration Protocol (GMRP) |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 1588v2 |
Statusindikatorer | Strøm, mislykket |
Interface | 1 x administration (RS-232) RJ-45 ¦ 8 x 100Base-TX RJ-45 ¦ 2 x 100Base-FX LC single-mode x 2 |
Nødvendig spænding | AC 120/230 V / DC 110/220 V |
Egenskaber | Power Polarity Reverse Protect, Overload Current Resetable Fuse |
Medfølgende ledninger | 1 x konsolkabel |
Overensstemmelsesstandarder | EN55022 Klasse A, UL 508, FCC Part 15 B Class A, IP40, IEC 61850-3, IEEE 1613 |
Med software | Drivers & Utilities |
Bredde | 8 cm |
Dybde | 11 cm |
Højde | 16 cm |
Vægt | 1.21 kg |
Service & Support | Begrænset garanti - 5 år |
Min. driftstemperatur | -40 °C |
Maks. driftstemperatur | 85 °C |
Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
Min. lagertemperatur | -40 °C |
Maks. Opbevaringstemperatur | 85 °C |

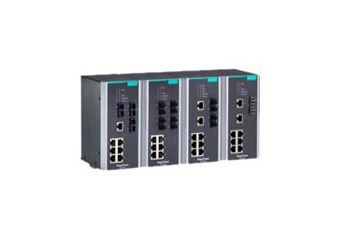

The PowerTrans PT-508 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508's optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-Rail and wall mount design of the PT-508 makes network planning easy, and allows greater flexibility by letting you install up to 8/10 Fast Ethernet ports for power distribution applications.
