| Produktbeskrivelse
|

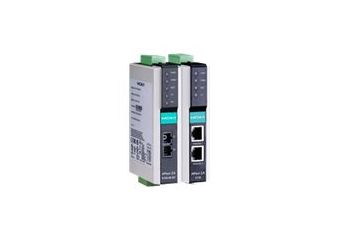

Moxa NPort IA5150I-M-SC - enhedsserver
|
| Enhedstype
|
Enhedsserver
|
| Formfaktor
|
Monterbar på DIN rail
|
| Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
|
| OS nødvendig
|
UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows 95/98/ME/NT/2000/XP
|
| Dimensioner (B x D x H)
|
2.9 cm x 8.92 cm x 11.85 cm
|
| Vægt
|
360 g
|
| Producentgaranti
|
5 års garanti
|
Produktdatablad |
|
| Enhedstype |
Enhedsserver |
| Bredde |
2.9 cm |
| Dybde |
8.92 cm |
| Højde |
11.85 cm |
| Vægt |
360 g |
| Model |
Monterbar på DIN rail |
| Forbindelsesteknologi |
Kabling |
| Dataoverførselshastighed |
230.4 Kbps |
| Dataforbindelsesprotokol |
Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Netværks/overføselsprotokol |
TCP/IP, UDP/IP, ICMP/IP, SMTP, BOOTP, DHCP, DNS |
| Protokol til fjernadministration |
SNMP 1, Telnet, HTTP |
| Egenskaber |
Datatransport, auto-uplink (auto MDI/MDI-X), 2 KV Optical Isolation Protection, Automatic Data Direction Control (ADDC), 1.5 KV Magnetic Isolation, 15KV ESD Protector, Watch Dog Timer (WDT) |
| Interface |
1 x RS-232 - DB-9 ¦ 1 x 100Base-FX - SC multi-mode ¦ 1 x RS-422/485 - terminalblok (skrue) |
| MTBF (forventet tid mellem fejl) |
195,614 timer |
| Overensstemmelsesstandarder |
UL, cUL, EN 60950, EN55022, UL 60950, CSA 22.2 No. 60950, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, IEC 60529 IP30, DNV |
| OS nødvendig |
UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows 95/98/ME/NT/2000/XP |
| Service & Support |
Begrænset garanti - 5 år |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
55 °C |
| Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
NPort IA device server provides easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device server can connect any serial device to an Ethernet network, and to ensure compatibility with network software. The rock-solid reliability of the NPort IA device server makes it an ideal choice for establishing network serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. This model is housed in a compact, rugged housing that is DIN-rail mountable.
