Produktbeskrivelse
|

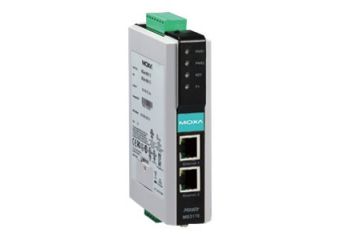

Moxa MGate MB3170-T-IEX - gateway
|
Enhedstype
|
Gateway
|
Formfaktor
|
Monterbar på DIN rail
|
Dataforbindelsesprotokol
|
Ethernet, Fast Ethernet, RS-232, RS-422, RS-485, Modbus
|
OS nødvendig
|
Microsoft Windows Server 2003, Microsoft Windows 95/98/ME/NT/2000/XP, Microsoft Windows Vista, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bit), Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 (32/64 bits)
|
Effekt
|
DC 12 - 48 V
|
Dimensioner (B x D x H)
|
2.9 cm x 8.92 cm x 11.85 cm
|
Vægt
|
360 g
|
Producentgaranti
|
5 års garanti
|
Produktdatablad |
|
Enhedstype |
Gateway |
Bredde |
2.9 cm |
Dybde |
8.92 cm |
Højde |
11.85 cm |
Vægt |
360 g |
Model |
Monterbar på DIN rail |
Forbindelsesteknologi |
Kabling |
Dataforbindelsesprotokol |
Ethernet, Fast Ethernet, RS-232, RS-422, RS-485, Modbus |
Netværks/overføselsprotokol |
TCP/IP |
Protokol til fjernadministration |
SNMP 1, Telnet, HTTP |
Egenskaber |
Auto-uplink (auto MDI/MDI-X), Automatic Data Direction Control (ADDC), 1.5 KV Magnetic Isolation, 15KV ESD Protector |
Interface |
1 x 100Base-TX - RJ-45 ¦ 1 x RS-232 - DB-9 ¦ 1 x RS-422/485 - terminalblok (skrue) |
MTBF (forventet tid mellem fejl) |
210,794 timer |
Overensstemmelsesstandarder |
EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, EN 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, cULus, FCC Part 15 B Class A, IECEx, DNV, UL Class I Division 2, IP30, EN 55022 Class A, ATEX Zone 2 |
Nødvendig spænding |
DC 12 - 48 V |
Med software |
Drivers & Utilities |
OS nødvendig |
Microsoft Windows Server 2003, Microsoft Windows 95/98/ME/NT/2000/XP, Microsoft Windows Vista, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bit), Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 (32/64 bits) |
Service & Support |
Begrænset garanti - 5 år |
Min. driftstemperatur |
-40 °C |
Maks. driftstemperatur |
75 °C |
Fugtighedsgrad ved brug |
5 - 95 % (ikke-kondenserende) |
The MGate MB3170 is a 1-port Modbus gateway that converts between Modbus TCP, ASCII, and RTU communication protocols. The gateways provide both serial-to-Ethernet communication and serial(Master)-to-serial(Slave) communication. In addition, the gateways support simultaneously connecting serial and Ethernet masters with serial Modbus devices. The MGate MB3170 series gateways can be accessed by up to 16 TCP master/clients or connect to up to 32 TCP slave/servers. Routing through the serial ports can be controlled by IP address, TCP port number, or ID mapping. A featured priority control function allows urgent commands to obtain an immediate response. All models are rugged, DIN-rail mountable, and offer optional built-in optical isolation for serial signals.
