Produktbeskrivelse
|
Moxa IM-6700A-4MSC2TX - ekspansionsmodul - 10/100 Ethernet x 2 + 100Base-FX x 4
|
Enhedstype
|
Ekspansionsmodul
|
Model
|
Indstiksmodul
|
Porte
|
10/100 Ethernet x 2 + 100Base-FX x 4
|
Dimensioner (B x D x H)
|
10.56 cm x 10.41 cm x 4.18 cm
|
Vægt
|
270 g
|
Kabeltype
|
Ethernet 10Base-T, Ethernet 100Base-FX, Ethernet 100Base-TX
|
Dataforbindelsesprotokol
|
10Mb LAN, 100Mb LAN
|
Dataoverførselshastighed
|
100 Mbps
|
Producentgaranti
|
5 års garanti
|
Produktdatablad |
|
Enhedstype |
Ekspansionsmodul |
Model |
Indstiksmodul |
Porte |
10/100 Ethernet x 2 + 100Base-FX x 4 |
Forbindelsesteknologi |
Kabling |
Kabeltype |
Ethernet 10Base-T, Ethernet 100Base-FX, Ethernet 100Base-TX |
Dataforbindelsesprotokol |
Ethernet, Fast Ethernet |
Dataoverførselshastighed |
100 Mbps |
Optisk bølgelængde |
1310 nm |
Maks. afstand udendørs |
5 km |
Egenskaber |
Auto-negotiation, auto-uplink (auto MDI/MDI-X), halv dupleksmodus, fuld dupleksmodus |
Interface |
2 x 100Base-TX - RJ-45 ¦ 4 x 100Base-FX - SC multimodus - x 2 |
MTBF (forventet tid mellem fejl) |
530,268 timer |
Strømforbrug ved drift |
5.72 Watt |
Bredde |
10.56 cm |
Dybde |
10.41 cm |
Højde |
4.18 cm |
Vægt |
270 g |
Service & Support |
Begrænset garanti - 5 år |

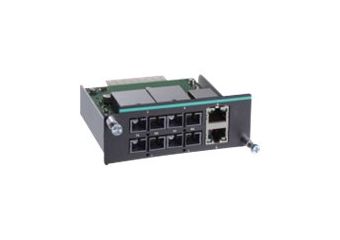

Fast Ethernet module with 4 multi-mode 100BaseFX ports with SC connectors and 2 10/100BaseT(X) ports.
