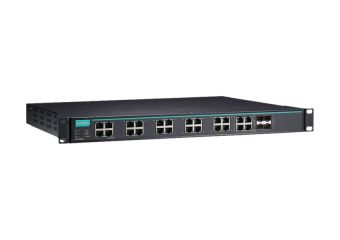

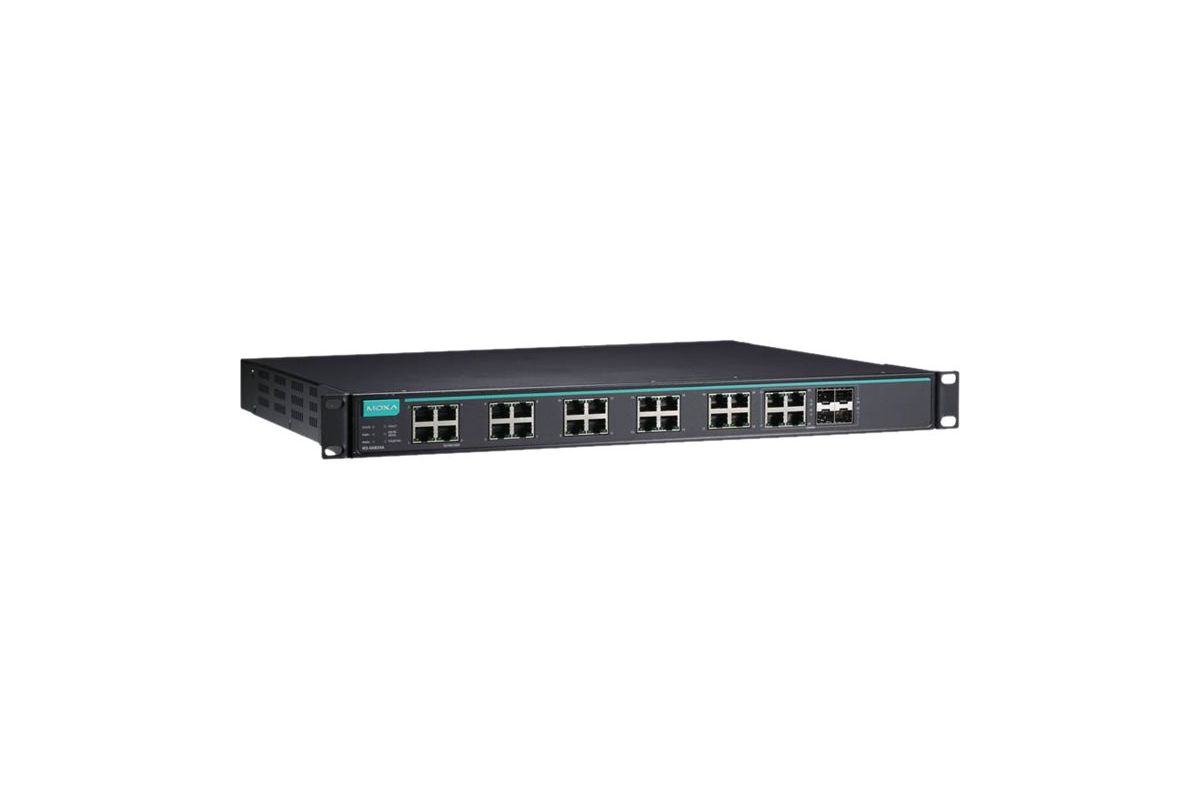

Moxa IKS-G6824A-8GSFP-4GTXSFP-HV-HV - switch - 24 porte - Administreret - monterbar på stativ
Produktbeskrivelse | Moxa IKS-G6824A-8GSFP-4GTXSFP-HV-HV - switch - 24 porte - Administreret - monterbar på stativ |
Enhedstype | Switch - 24 porte - L3 - Administreret |
Pakningstype | Monterbar på stativ 1U |
Undertype | Gigabit Ethernet |
Porte | 12 x 10/100/1000 + 8 x Gigabit SFP + 4 x kombi Gigabit Ethernet/Gigabit SFP |
Præstation | Omkoblingskapacitet: 48 Gbps ¦ Fremsendelsespræstation: 35.7 Mpps |
Kapacitet | Aktive VLANer: 256 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ IGMP-grupper: 4096 ¦ Prioritetskøer per port: 8 |
MAC adresse table størrelse | 16K indtastningshukommelse |
Jumborammesupport | 9.6KB |
Routingprotokol | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, PIM-SM, statisk IP routing, PIM-DM, IGMPv3, PIM-SSM |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH |
Egenskaber | Datatransport, DHCP-understøttelse, understøttet af BOOTP, understøttet af RARP, trunking, VLAN-understøttet, Syslog understøttet, portspejling, IPv6 understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, blæserløs, LLDP support, Link Aggregation Control Protocol (LACP), NTP server, Dynamic VLAN Support (GVRP), Back Pressure Support, 12 Mbit pakkebuffer, GARP Multicast Registration Protocol (GMRP) |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
Effekt | AC 120/230 V |
Overskudsspænding | Ja |
Dimensioner (B x D x H) | 44 cm x 38.69 cm x 4.4 cm |
Vægt | 5.1 kg |
Producentgaranti | 5 års garanti |
Produktdatablad |
|
Enhedstype | Switch - 24 porte - L3 - Administreret |
Pakningstype | Monterbar på stativ 1U |
Undertype | Gigabit Ethernet |
Porte | 12 x 10/100/1000 + 8 x Gigabit SFP + 4 x kombi Gigabit Ethernet/Gigabit SFP |
Præstation | Omkoblingskapacitet: 48 Gbps ¦ Fremsendelsespræstation: 35.7 Mpps |
Kapacitet | Aktive VLANer: 256 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ IGMP-grupper: 4096 ¦ Prioritetskøer per port: 8 |
MAC adresse table størrelse | 16K indtastningshukommelse |
Jumborammesupport | 9.6KB |
Routingprotokol | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, PIM-SM, statisk IP routing, PIM-DM, IGMPv3, PIM-SSM |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH |
Krypterings algoritme | MODBUS |
Egenskaber | Datatransport, DHCP-understøttelse, understøttet af BOOTP, understøttet af RARP, trunking, VLAN-understøttet, Syslog understøttet, portspejling, IPv6 understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, blæserløs, LLDP support, Link Aggregation Control Protocol (LACP), NTP server, Dynamic VLAN Support (GVRP), Back Pressure Support, 12 Mbit pakkebuffer, GARP Multicast Registration Protocol (GMRP) |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
RAM | 128 MB |
Flashhukommelse | 16 MB |
Statusindikatorer | Strøm, mislykket, status |
Interface | 16 x 1000Base-T RJ-45 ¦ 12 x 1000Base-X SFP ¦ 1 x USB Type B administration ¦ 1 x USB Type A |
Strømenhed | Intern strømforsyning |
Antal installeret | 2 (installeret) / 2 (maks.) |
Overskudsspænding | Ja |
Skema til overskudsspænding | 1+1 |
Nødvendig spænding | AC 120/230 V |
Egenskaber | Power Polarity Reverse Protect, Overload Current Resetable Fuse |
Rackmonteringspakke | Inkluderet |
MTBF (forventet tid mellem fejl) | 471,418 timer |
Overensstemmelsesstandarder | EN55022 Klasse A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, EN 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 B Class A, IP30 |
Bredde | 44 cm |
Dybde | 38.69 cm |
Højde | 4.4 cm |
Vægt | 5.1 kg |
Service & Support | Begrænset garanti - 5 år |
Min. driftstemperatur | 0 °C |
Maks. driftstemperatur | 60 °C |
Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
Min. lagertemperatur | -40 °C |
Maks. Opbevaringstemperatur | 85 °C |
Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The IKS-G6824A series full Gigabit backbone switches are equipped with 24 Gigabit Ethernet ports, and support Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large scale industrial networks. The IKS-G6824A's full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy protocols, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
