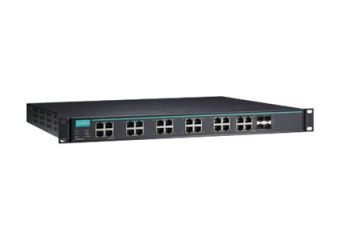

Moxa IKS-G6524A Series IKS-G6524A-4GTXSFP-HV-HV-T - switch - 24 porte - Administreret - monterbar på stativ
Produktbeskrivelse | Moxa IKS-G6524A Series IKS-G6524A-4GTXSFP-HV-HV-T - switch - 24 porte - Administreret - monterbar på stativ |
Enhedstype | Switch - 24 porte - Administreret |
Pakningstype | Monterbar på stativ |
Undertype | Gigabit Ethernet |
Porte | 20 x 10/100/1000 + 4 x combo Gigabit SFP |
Præstation | Omkoblingskapacitet: 48 Gbps ¦ Fremsendelsespræstation: 35.7 Mpps |
Kapacitet | Aktive VLANer: 256 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ IGMP-grupper: 1000 |
MAC adresse table størrelse | 16K indtastningshukommelse |
Jumborammesupport | 9.6KB |
Routingprotokol | IGMPv2, IGMP |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
Egenskaber | Datatransport, DHCP-understøttelse, understøttet af BOOTP, understøttet af RARP, trunking, VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, DiffServ understøttet, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, blæserløs, LLDP support, Link Aggregation Control Protocol (LACP), NTP server, DHCP klient, e-mail meddelelse, Management Information Base (MIB), Dynamic VLAN Support (GVRP), NTP tidssynkronisering, 12 MB pakkebuffer |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
Effekt | AC 85 - 264 V |
Overskudsspænding | Ja |
Dimensioner (B x D x H) | 44 cm x 38.69 cm x 4.4 cm |
Vægt | 5.1 kg |
Producentgaranti | 5 års garanti |
Produktdatablad |
|
Enhedstype | Switch - 24 porte - Administreret |
Pakningstype | Monterbar på stativ |
Undertype | Gigabit Ethernet |
Porte | 20 x 10/100/1000 + 4 x combo Gigabit SFP |
Præstation | Omkoblingskapacitet: 48 Gbps ¦ Fremsendelsespræstation: 35.7 Mpps |
Kapacitet | Aktive VLANer: 256 ¦ Virtuelle grænseflader (VLANs): 4094 ¦ IGMP-grupper: 1000 |
MAC adresse table størrelse | 16K indtastningshukommelse |
Jumborammesupport | 9.6KB |
Routingprotokol | IGMPv2, IGMP |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
Krypterings algoritme | MODBUS |
Autentificeringsmetode | Secure Shell (SSH), TACACS+ |
Egenskaber | Datatransport, DHCP-understøttelse, understøttet af BOOTP, understøttet af RARP, trunking, VLAN-understøttet, IGMP snooping, Syslog understøttet, portspejling, DiffServ understøttet, SNTP-understøttet, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, blæserløs, LLDP support, Link Aggregation Control Protocol (LACP), NTP server, DHCP klient, e-mail meddelelse, Management Information Base (MIB), Dynamic VLAN Support (GVRP), NTP tidssynkronisering, 12 MB pakkebuffer |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
RAM | 128 MB |
Flashhukommelse | 16 MB |
Statusindikatorer | Strøm, mislykket, status, RPS (Redundant Power Supply) |
Interface | 24 x 1000Base-T RJ-45 ¦ 4 x RJ-45/SFP ¦ 1 x seriel (RS-232) RJ-45 administration |
Strømenhed | Intern strømforsyning |
Antal installeret | 2 (installeret) / 2 (maks.) |
Overskudsspænding | Ja |
Skema til overskudsspænding | 1+1 |
Nødvendig spænding | AC 85 - 264 V |
Egenskaber | Power Polarity Reverse Protect, Overload Current Resetable Fuse |
Medfølgende ledninger | 1 x konsolkabel |
Rackmonteringspakke | Inkluderet |
MTBF (forventet tid mellem fejl) | 282,390 timer |
Overensstemmelsesstandarder | EN55022 Klasse A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, EN 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IEC 60529 IP30, FCC Part 15 B Class A |
Med software | Drivers & Utilities |
Bredde | 44 cm |
Dybde | 38.69 cm |
Højde | 4.4 cm |
Vægt | 5.1 kg |
Service & Support | Begrænset garanti - 5 år |
Min. driftstemperatur | -40 °C |
Maks. driftstemperatur | 75 °C |
Fugtighedsgrad ved brug | 5 - 95 % (ikke-kondenserende) |
Min. lagertemperatur | -40 °C |
Maks. Opbevaringstemperatur | 85 °C |
Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The IKS-G6524A series full Gigabit backbone switches are equipped with 24 Gigabit Ethernet ports, making them ideal for large scale industrial networks. The IKS-G6524A's full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy protocols, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
